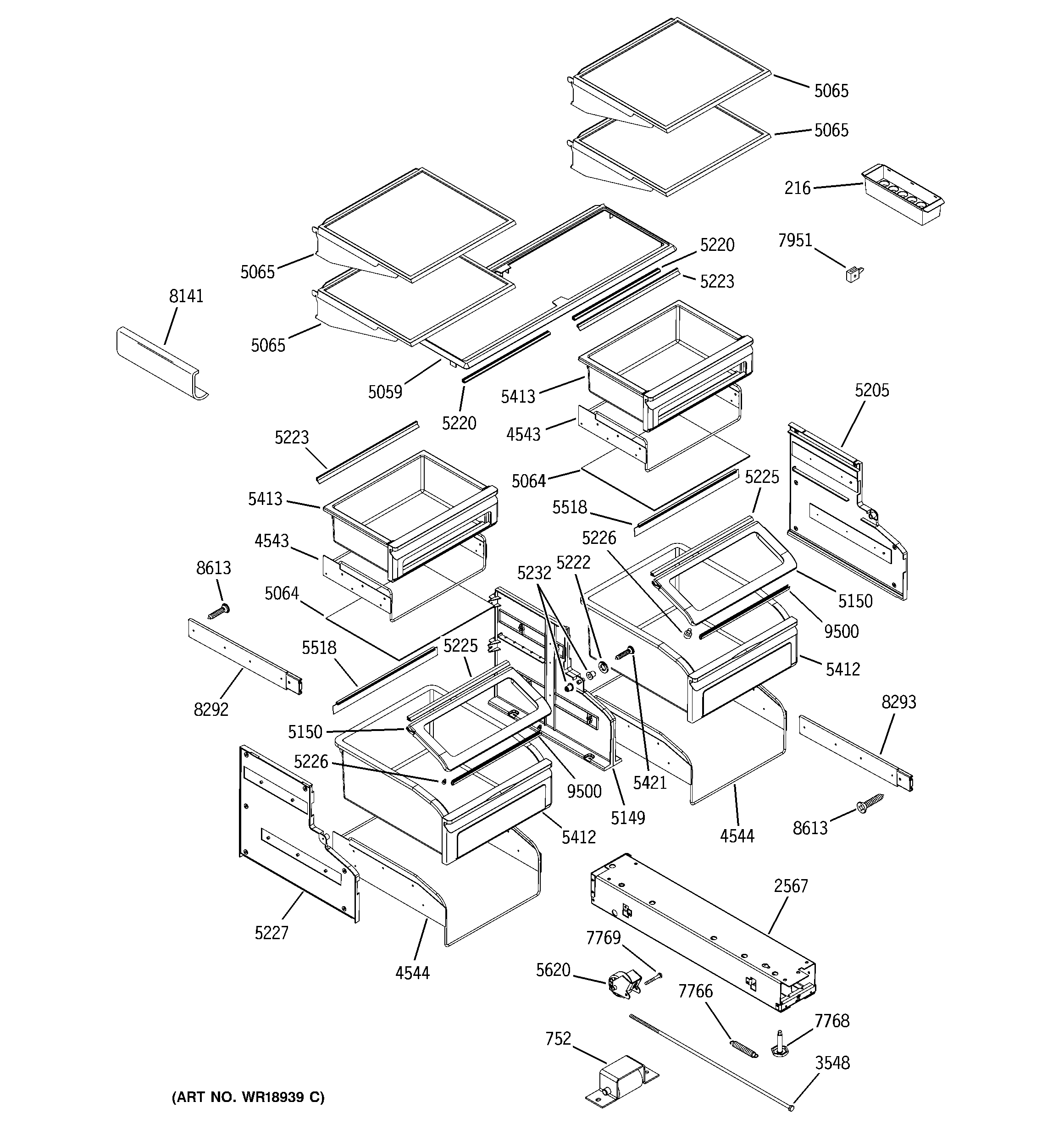

ZICP720ASCSS SHELVES & DRAWERS

ZICP720ASCSS SHELVES & DRAWERS

Written by

in

ZICP720ASCSS SHELVES & DRAWERS

Products

PositionProduct
216WR32X1435 GE Refrigerator Egg Bucket
752WR2X9470 GE Refrigerator Front Wheel
2567WR13X30113 GE Refrigerator Right HandBase Channel
3548WR01X10256 GE Refrigerator Base Shaft
4543WR02X10149 GE Refrigerator Snack Pan Support
4544WR02X12248 GE Refrigerator Pan Support TAssembly Vegetable
5059WR32X10072 GE Refrigerator Snack Pan Cover
5064WR32X10073 GE Refrigerator Vegetable Pan Cover
5065WR32X10074 GE Refrigerator Shelf Endcap
5149WR72X10011 GE Refrigerator Divider Assembly Vegetable PanS
5150WR32X10119 GE Refrigerator Vegetable Pan Showcase Lid
5205WR72X10012 GE Refrigerator Support Slide Right Hand
5220WR14X10009 GE Refrigerator Seal Front Snack Pan
5222WR01X10046 GE Refrigerator Washer Showcase Pivot
5223WR14X10011 GE Snack Pan Rear Seal
5225WR14X10012 GE Refrigerator Seal Front Vegetable Pan Glass
5226WR01X10047 GE Refrigerator Button Glide
5227WR72X10013 GE Refrigerator Support Slide Left Hand
5232WR01X10048 GE Refrigerator SHO Bushing
5412WR32X10077 GE Refrigerator Vegetable Pan Assembly
5413WR32X10078 GE Refrigerator Snack Pan Assembly
5421WR01X10050 GE Refrigerator Screw #8 18 x 3/4
5518WR14X10014 GE Rear Veg Pan Glass Seal
5620WR2X8377 GE Refrigerator Wheel Assembly
7766WR02X11233 GE Wheel Spring
7768LEVELING LEG
7769GEN WR02X8800
7951WR02X37905 GE Twist Support
8141GEN WR17X10660
8292WR72X10191 GE Refrigerator Slide Assembly 10"
8293WR72X10196 GE Refrigerator Slide Assembly
8613WR1X1826 GE Refrigerator Screw
9500WR14X10040 GE Refrigerator Seal Front Showcase Lid
