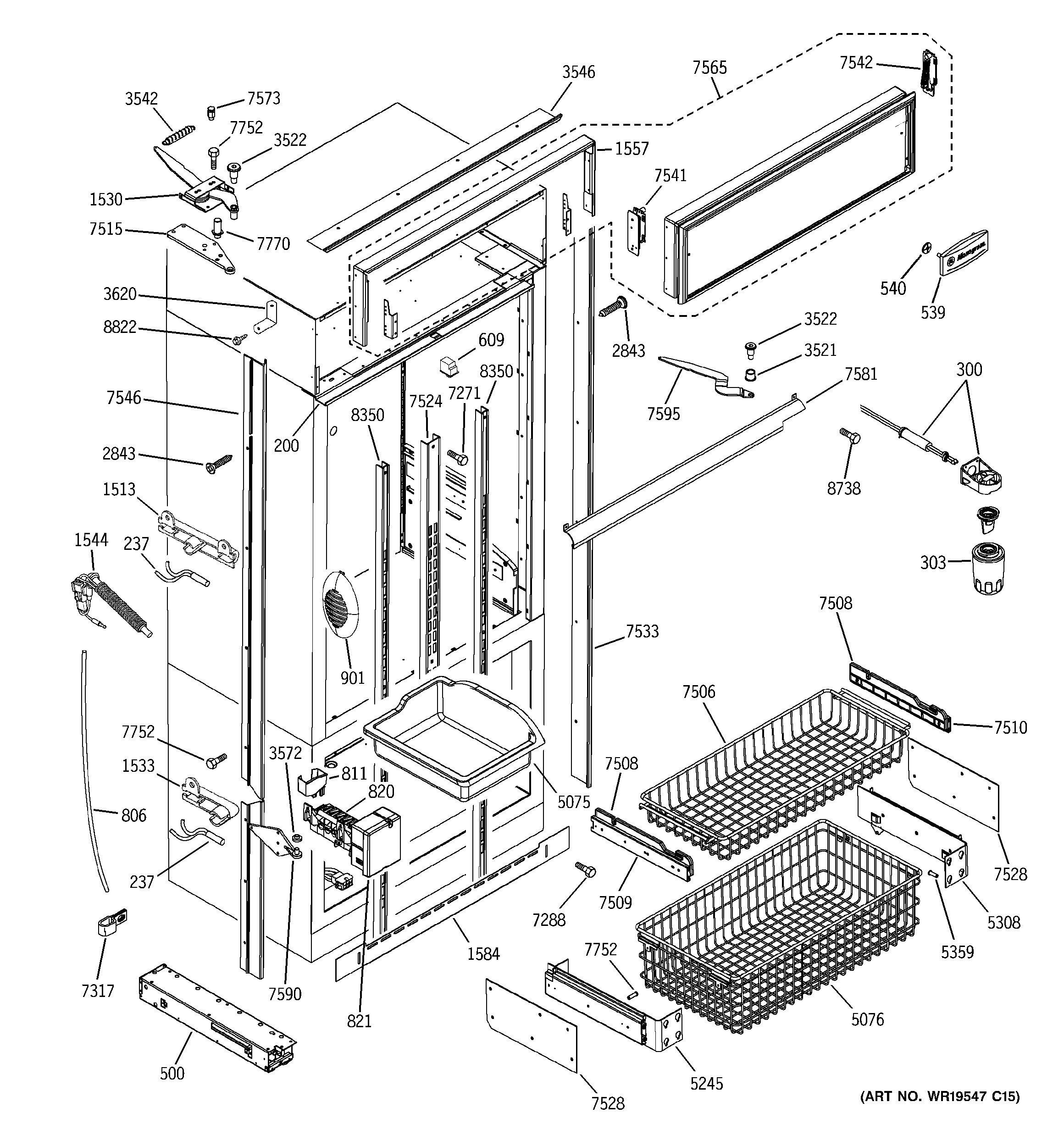

ZICP720ASESS FREEZER SECTION, TRIM & COMPONENTS

ZICP720ASESS FREEZER SECTION, TRIM & COMPONENTS

Written by

in

ZICP720ASESS FREEZER SECTION, TRIM & COMPONENTS

Products

PositionProduct
200WR17X11561 GE Refrigerator Switch Plate Left Hand
237WR55X10025 GE Refrigerator Temperature Sensor
300MWF MANIFOLD
303MWFP GE Replacement Water Filter Pureline for Refrigerator
500WR13X30112 GE Refrigerator Left Hand Base Channel
539WB02X26123 GE Monogram Badge
540WR01X10300 GE Refrigerator Logo Clip
609WR23X37285 GE Light Switch
806WR17X1948 GE Refrigerator Water Line
811WR29X10092 GE Refrigerator Ice Maker Fill Cup
820WR30X10093 GE Refrigerator Ice Maker
821WR29X10082 GE Ice Maker Cover
901WR71X10325 GE Refrigerator Air Diffuser
1513WR02X10942 GE Refrigerator Thermistor Holder
1530WR02X10980 GE Refrigerator Top Door Closure Assembly Left Hand
1533GEN WR02X10944
1544WR49X10093 GE Refrigerator Fill Tube Kit
1557GEN WR74X10081
1584GEN WR74X10218
3521WR02X10951 GE Refrigerator Bushing Arm Nylon
3522WR01X10752 GE Refrigerator Shoulder Bolt
3542WR01X10255 GE Refrigerator Spring Fresh Food Door Closure
3546GEN WR17X11611
3572WR02X10953 GE Refrigerator Bushing Hinge Bottom
3620WR02X11256 GE Refrigerator Top Case Trim Bracket
5075WR32X10075 GE Refrigerator Ice Bucket
5076WR32X29399 GE Refrigerator Large Freezer Basket
5245WR72X10124 GE Refrigerator Left Hand Slide Support Assembly
5308WR72X10396 GE Refrigerator Drawer Slide Assembly
5359WR01X10049 GE Refrigerator Screw TRUSS HD 1/4-20 X
7271WR01X10051 GE 10-24 x 1" Phillips Head Tap
7288WR01X10065 GE Screw
7317WR17X3046 GE Clamp 1/4"
7506WR32X29396 GE Refrigerator Small Freezer Basket
7508WR72X10080 GE Refrigerator Support Assembly
7509WR72X10081 GE Refrigerator Upper Slide Liner
7510WR72X10082 GE Refrigerator Slide Basket
7515WR13X10656 GE Refrigerator Upper Hinge
7524GEN WR17X11097
7528WR72X10085 GE Refrigerator Freezer Slide Shim
7533WR17X12831 GE Refrigerator Trim Case Right Hand Side
7541WR13X10410 GE Refrigerator Grille Hinge Left Hand
7542WR13X10411 GE Grill Right Hinge
7546WR17X11563 GE Refrigerator Left Hand Hinge Side Trim
7565WR74X10347 GE Refrigerator Euro Grille Assembly
7573WR01X10258 GE Spring Stud
7590WR13X10211 GE Refrigerator Left Hand Center Hinge
7595WR02X10979 GE Refrigerator Link Actuator Left Hand
7752WR1X2138 GE Refrigerator Screw
7770WR02X11209 GE Refrigerator Shear Pin
8350WR17X20773 GE Refrigerator Shelf Track
8738WR01X10053 GE Refrigerator #8-18 TYPE AB X 3/8 Black
8822WH2X1211 GE Screw
