ZICP720ASESS SEALED SYSTEM & MOTHER BOARD

ZICP720ASESS SEALED SYSTEM & MOTHER BOARD

Written by

in

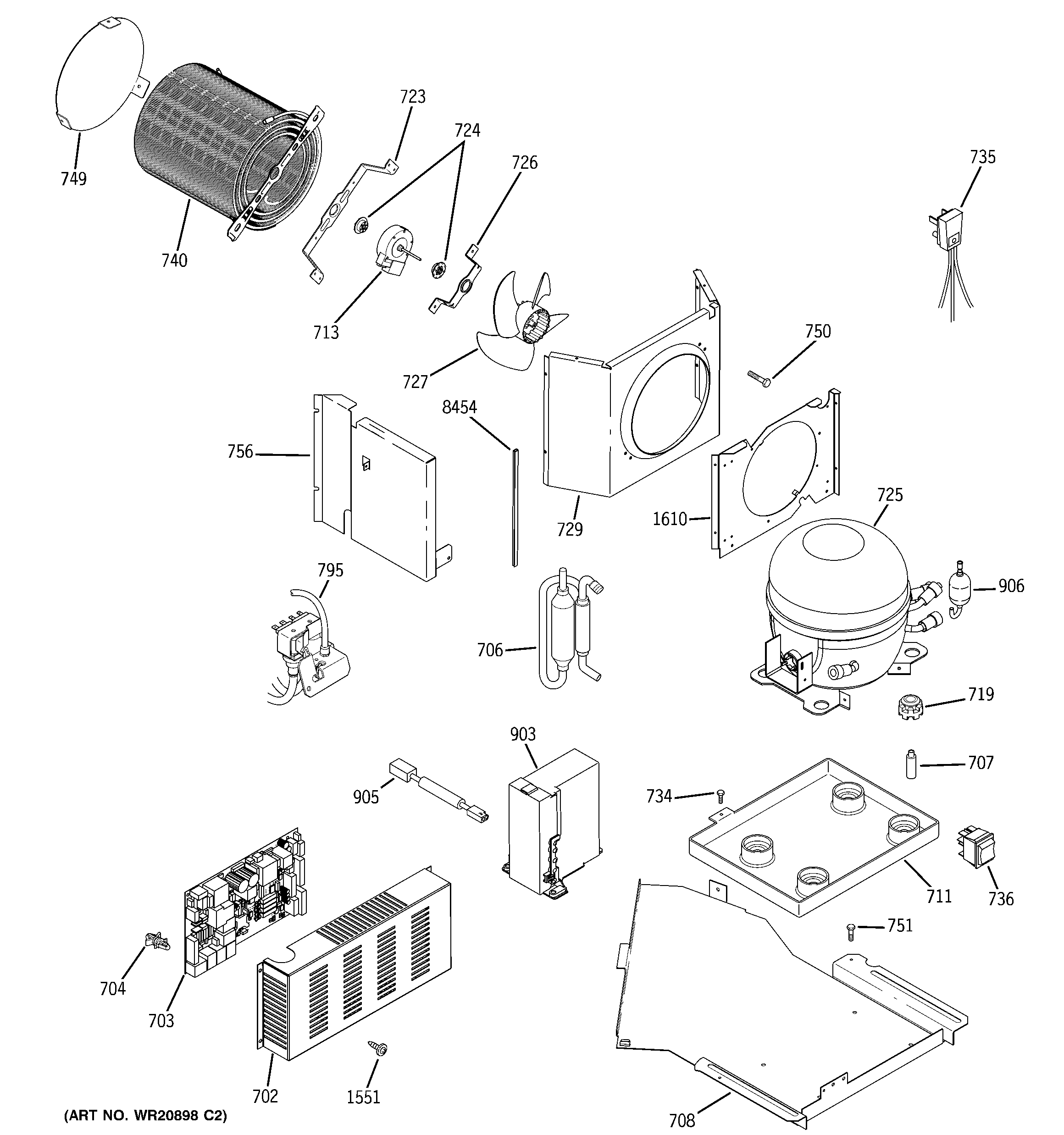

ZICP720ASESS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
702WR02X12570 GE Motherboard Cover
703WR55X11070 GE Refrigerator Main Control Board Assembly
704WR01X10301 GE Refrigerator Main Board Standoff
706WR86X25269 GE Refrigerator R134 Dryer
707WR1X1779 GE Refrigerator Stud Mounting Compressor
708GEN WR17X10687
711WR17X11924 GE Refrigerator Stainless Steel Vaporizer Pan Kit
713WR60X10209 GE Refrigerator DC Condenser Fan Motor
719WR02X22869 GE Refrigerator Grommet
723WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
724WR02X10520 GE Refrigerator Fan Motor Grommet
725COMPRESSOR VCC3 REPL. KI
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729WR17X35527 GE Refrigerator Condenser Fan Shroud
73436 VAPORIZER PAN BOLT
735WR23X10300 GE Refrigerator Power Cord Assembly
736WR49X10070 GE Refrigerator Master Light SW. Kit
740WR84X10022 GE Refrigerator Condenser Replacement Kit
750WR1X1826 GE Refrigerator Screw
751WR01X10302 GE Bolt 1/4-20 x 1.5"
756WR17X13159 GE Refrigerator Baffle Condenser Air
795WR57X10033 GE Refrigerator Water Inlet Fill Valve
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
905WR23X10605 GE Communication Harness
906WR86X10038 GE Refrigerator Accumulator
1551WD2X295 GE Refrigerator Screw
8454WR38X10190 GE Refrigerator Edge Trim
