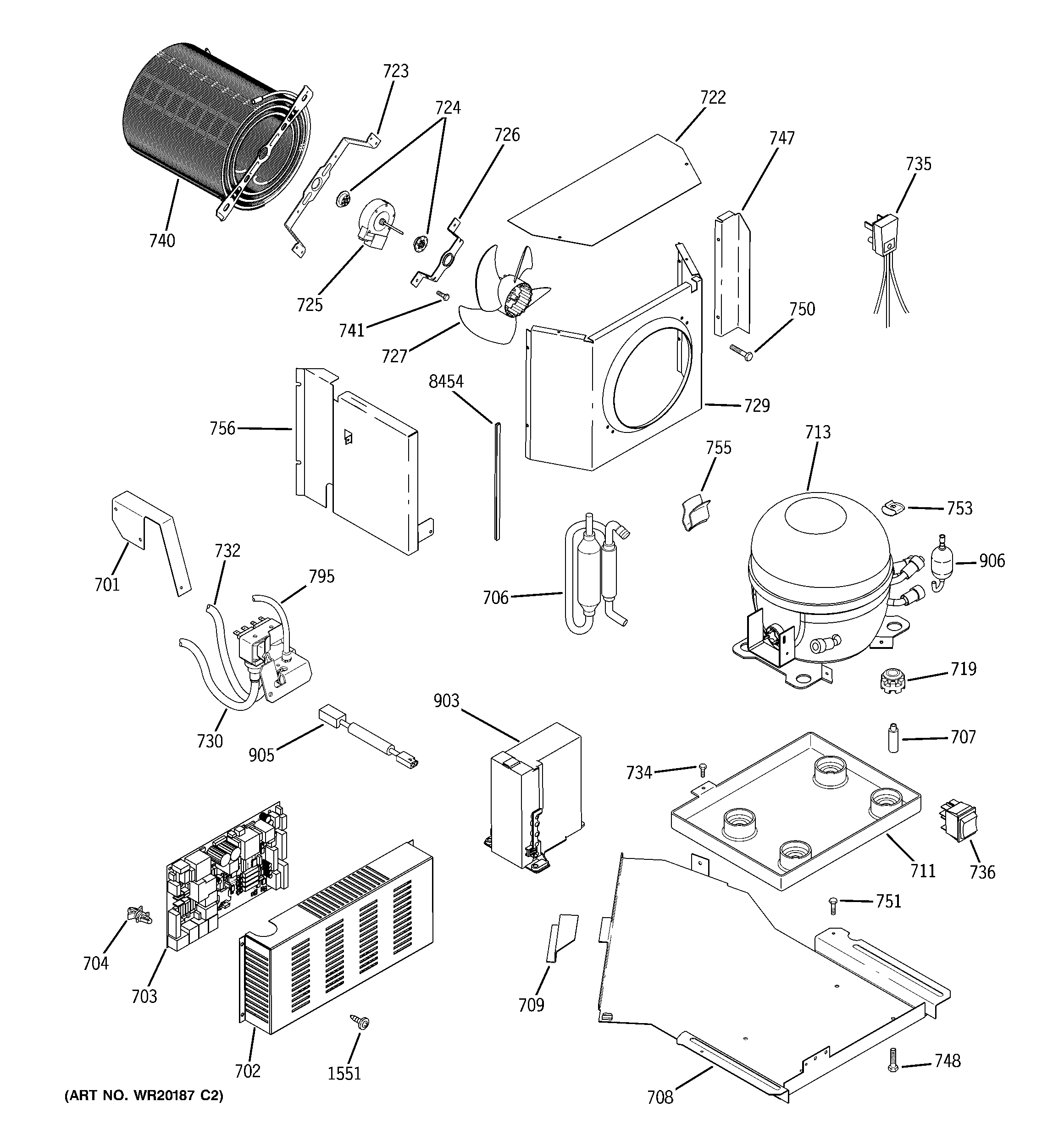

ZICP720BXASS SEALED SYSTEM & MOTHER BOARD

ZICP720BXASS SEALED SYSTEM & MOTHER BOARD

Written by

in

ZICP720BXASS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
701GEN WR02X12482
702WR02X12570 GE Motherboard Cover
703WR55X11070 GE Refrigerator Main Control Board Assembly
704WR01X10301 GE Refrigerator Main Board Standoff
706WR86X25269 GE Refrigerator R134 Dryer
707WR1X1779 GE Refrigerator Stud Mounting Compressor
708WR17X12348 GE System Pan
709WR02X12569 GE Bracket System Pan
713WR60X10209 GE Refrigerator DC Condenser Fan Motor
719WR02X22869 GE Refrigerator Grommet
723WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
724WR02X10520 GE Refrigerator Fan Motor Grommet
725COMPRESSOR VCC3 REPL. KI
726WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735WR23X10300 GE Refrigerator Power Cord Assembly
736WR49X10070 GE Refrigerator Master Light SW. Kit
740WR84X10022 GE Refrigerator Condenser Replacement Kit
750WR1X1826 GE Refrigerator Screw
751WR01X10635 GE Scr 8-32 Ca IHVW .625 S
753GEN WR02X8203
795WR57X10033 GE Refrigerator Water Inlet Fill Valve
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
905WR23X10605 GE Communication Harness
905WR23X29493 GE Ground Harness
1551WD2X295 GE Refrigerator Screw
8454WR38X10190 GE Refrigerator Edge Trim
