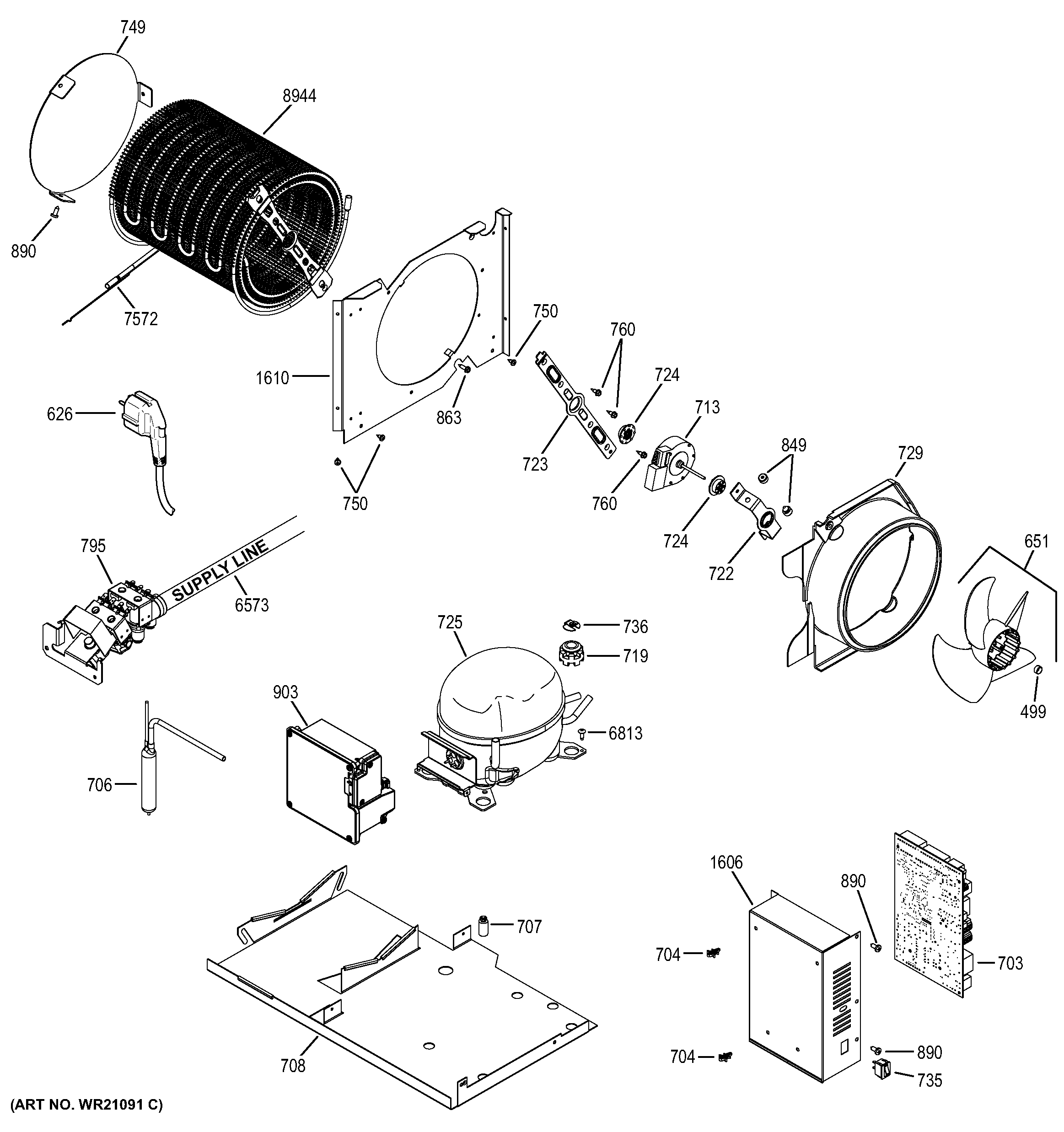

ZICS360NHALH MACHINE COMPARTMENT

ZICS360NHALH MACHINE COMPARTMENT

Written by

in

ZICS360NHALH MACHINE COMPARTMENT

Products

PositionProduct
499WR02X12149 GE Refrigerator Ring
626WR23X10300 GE Refrigerator Power Cord Assembly
651WR60X24484 GE Refrigerator Condenser Fan Blade
703WR55X23354 GE Refrigerator Main Control Board Assembly
704WR01X10301 GE Refrigerator Main Board Standoff
706WR86X25269 GE Refrigerator R134 Dryer
707WR1X1779 GE Refrigerator Stud Mounting Compressor
708SYSTEM PAN
713WR60X10209 GE Refrigerator DC Condenser Fan Motor
719WR02X22869 GE Refrigerator Grommet
722WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
723WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
724WR02X10520 GE Refrigerator Fan Motor Grommet
725WR87X20937 GE Refrigerator Variable Speed Compressor Kit
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735WR49X10070 GE Refrigerator Master Light SW. Kit
736GEN WR02X8203
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1826 GE Refrigerator Screw
760WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
795BRACKET AND VALVE ASM
849BUMPER
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
890WD2X295 GE Refrigerator Screw
903WR55X23123 GE Refrigerator Inverter
1606WR02X12570 GE Motherboard Cover
1610COND BAFFLE
6573WR02X28071 GE Refrigerator Rotating Bin
6813WR01X10484 GE Refrigerator Stainless Steel TCS 8-32 x 5/8" PH
7572TUBE SUCTION & CAP ASM
8944WR84X10022 GE Refrigerator Condenser Replacement Kit
