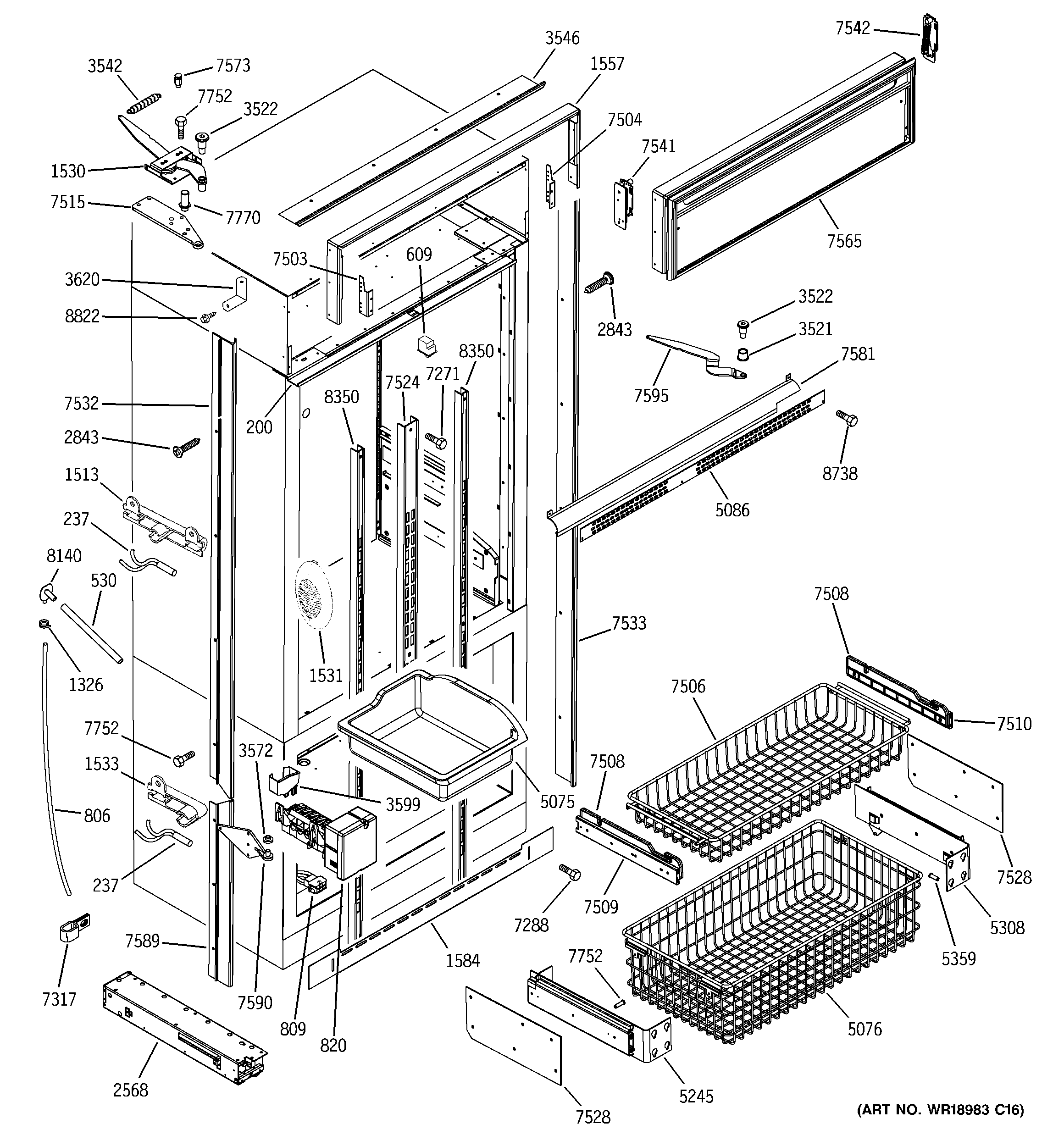

ZICS360NMALH FREEZER SECTION, TRIM & COMPONENTS

ZICS360NMALH FREEZER SECTION, TRIM & COMPONENTS

Written by

in

ZICS360NMALH FREEZER SECTION, TRIM & COMPONENTS

Products

PositionProduct
200GEN WR17X11326
237WR55X10025 GE Refrigerator Temperature Sensor
530WR02X11212 GE Refrigerator Fill Tube
609WR23X37285 GE Light Switch
806WR17X11349 GE Refrigerator Plastic Tube
809AMP J10 CONNECTOR
820WR30X10093 GE Refrigerator Ice Maker
1326WR1X5278 GE Refrigerator Cable Clamp
1513WR02X10942 GE Refrigerator Thermistor Holder
1530WR02X10980 GE Refrigerator Top Door Closure Assembly Left Hand
1531WR71X10325 GE Refrigerator Air Diffuser
1533GEN WR02X10944
1557GEN WR74X10081
1584WR74X10222 GE Refrigerator Toe Kick
2568WR13X30112 GE Refrigerator Left Hand Base Channel
2843WR1X2130 GE Refrigerator Screw
3521WR02X10951 GE Refrigerator Bushing Arm Nylon
3522WR01X10752 GE Refrigerator Shoulder Bolt
3542WR01X10255 GE Refrigerator Spring Fresh Food Door Closure
3546WR17X12858 GE Top Trim Case 36 SXS
3572WR02X10953 GE Refrigerator Bushing Hinge Bottom
3599WR29X10092 GE Refrigerator Ice Maker Fill Cup
3620WR02X11256 GE Refrigerator Top Case Trim Bracket
5075WR32X10075 GE Refrigerator Ice Bucket
5076WR32X29399 GE Refrigerator Large Freezer Basket
5086GEN WR02X10142
5245WR72X10124 GE Refrigerator Left Hand Slide Support Assembly
5308GEN WR72X10014
5359WR01X10049 GE Refrigerator Screw TRUSS HD 1/4-20 X
7271WR01X10051 GE 10-24 x 1" Phillips Head Tap
7288SCREW TOEKICK MTG
7317WR17X3046 GE Clamp 1/4"
7503WR02X10956 GE Refrigerator Left Hand Grille Bracket
7504GEN WR02X10957
7506WR32X29396 GE Refrigerator Small Freezer Basket
7508WR72X10080 GE Refrigerator Support Assembly
7509WR72X10081 GE Refrigerator Upper Slide Liner
7510WR72X10082 GE Refrigerator Slide Basket
7515WR13X10656 GE Refrigerator Upper Hinge
7524GEN WR17X11097
7528WR72X10085 GE Refrigerator Freezer Slide Shim
7532GEN WR17X11049
7533GEN WR17X11050
7541WR13X10204 GE Refrigerator Left Grille Hinge Assembly
7542WR13X10691 GE Refrigerator Grille Hinge Left Stainless Steel
7565WR74X10347 GE Refrigerator Euro Grille Assembly
7573WR01X10258 GE Spring Stud
7581GEN WR02X10978
7589CASE TRIM SHORT RH
7590WR13X10211 GE Refrigerator Left Hand Center Hinge
7595WR02X10979 GE Refrigerator Link Actuator Left Hand
7752WR1X1754D GE Refrigerator Screw Package
7770WR02X11209 GE Refrigerator Shear Pin
8140WR2X8474 GE Fill Tube
8350WR17X20773 GE Refrigerator Shelf Track
8738WR01X10053 GE Refrigerator #8-18 TYPE AB X 3/8 Black
8822WH2X1211 GE Screw
