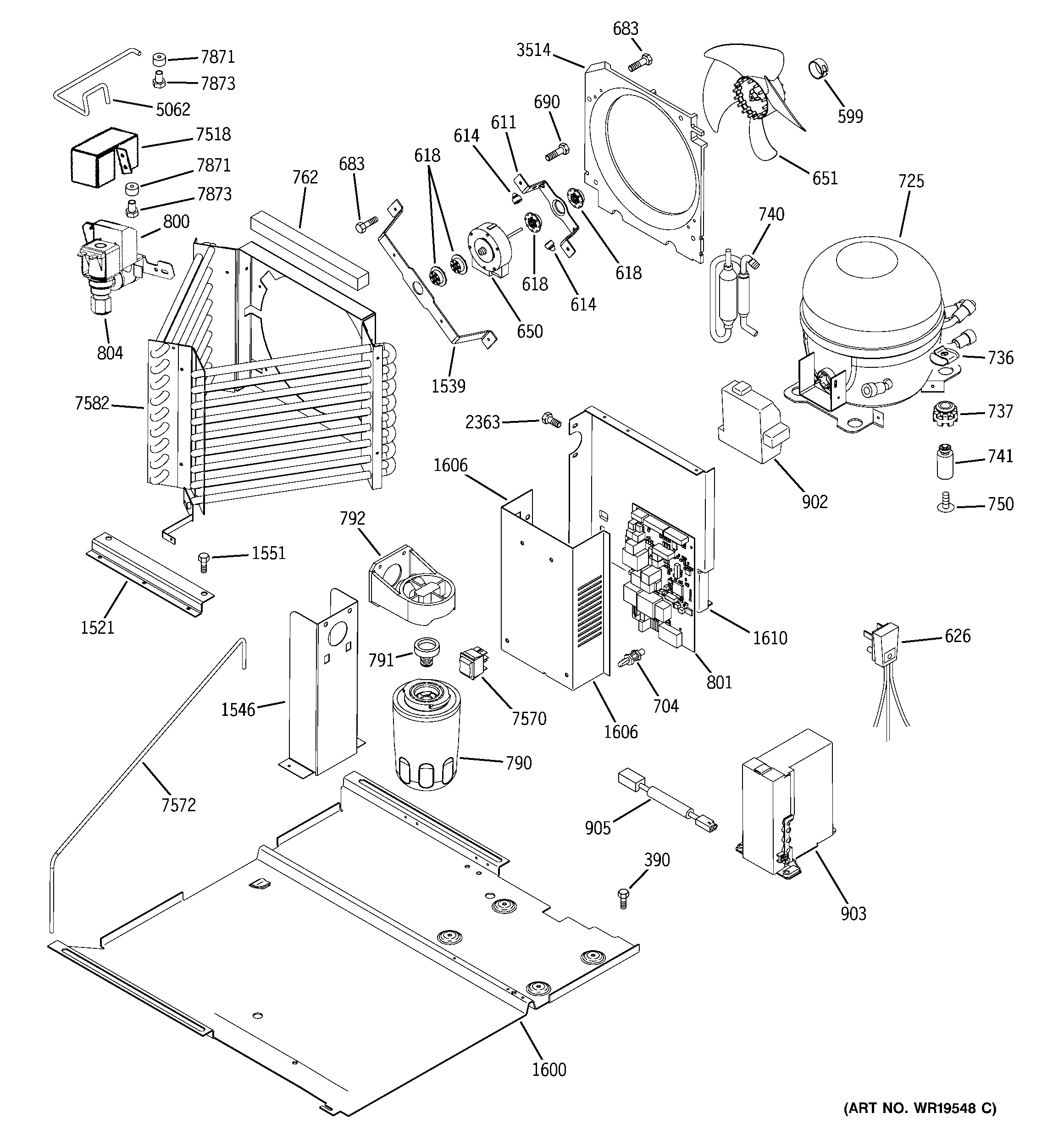

ZICS360NRARH SEALED SYSTEM & MOTHER BOARD

ZICS360NRARH SEALED SYSTEM & MOTHER BOARD

Written by

in

ZICS360NRARH SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
390WR1X1826 GE Refrigerator Screw
599WR02X12149 GE Refrigerator Ring
611WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
614WH1X2722 GE Lid Bumper
618WR02X10520 GE Refrigerator Fan Motor Grommet
626WR23X10300 GE Refrigerator Power Cord Assembly
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
683SCREW
690WZ5X158D GE Screw Package of 12
704WR01X10301 GE Refrigerator Main Board Standoff
725COMPRESSOR VCC3 REPL. KI
736WR2X8583 GE Refrigerator Clip
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
750WR1X1786 GE Refrigerator Screw
762GEN WR14X0313
790MWFP GE Replacement Water Filter Pureline for Refrigerator
791WR17X22070 GE Water Filter Bypass Plug
792GEN WR17X10707
800WR57X10033 GE Refrigerator Water Inlet Fill Valve
801BOARD ASM MAIN CONTROL
804WR57X57 GE Refrigerator Nut
902GEN WR02X11262
903WR55X20817 GE Refrigerator Inverter Kit
905WR23X10491 GE Refrigerator Harness Inverter Common
1521GEN WR02X10941
1539BRKT COND FAN MOTOR LG
1546GEN WR02X10946
1551WR1X5645 GE Refrigerator Screw
1600GEN WR17X11794
1606WR02X12570 GE Motherboard Cover
1610GEN WR17X11795
2363WR1X5684 GE Screw
3514GEN WR17X11011
5062GEN WR02X10141
7518GEN WR02X10958
7570WR49X10070 GE Refrigerator Master Light SW. Kit
7572GEN WR86X10016
7582CONDENSER MONOGRAM BM
7871GEN WR57X10016
7873GEN WR57X10017
