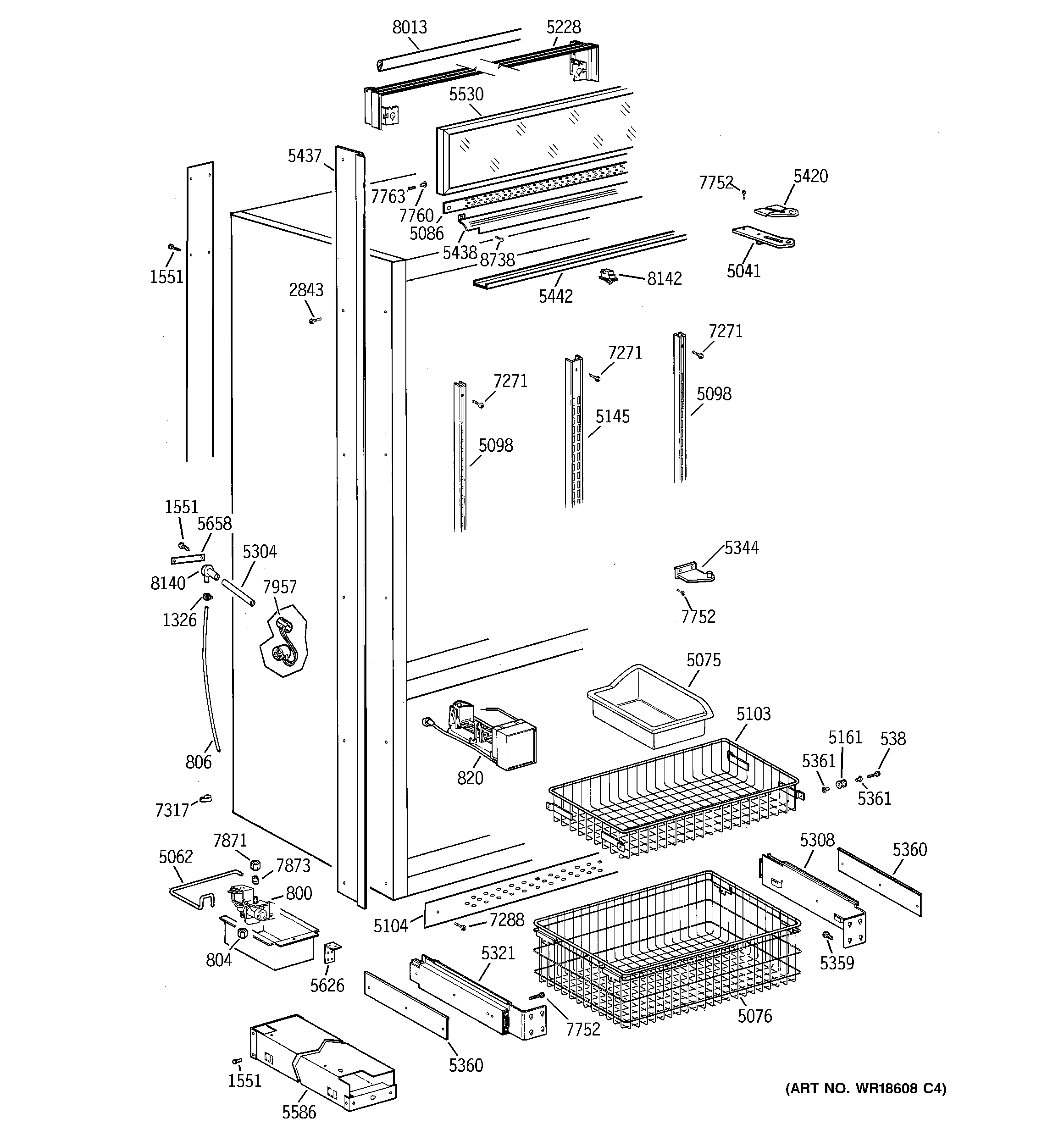

ZICS36NAASSRH FREEZER SECTION, TRIM & COMPONENTS

ZICS36NAASSRH FREEZER SECTION, TRIM & COMPONENTS

Written by

in

ZICS36NAASSRH FREEZER SECTION, TRIM & COMPONENTS

Products

PositionProduct
538WR01X10057 GE Refrigerator Screw
800WR57X10033 GE Refrigerator Water Inlet Fill Valve
804WR57X57 GE Refrigerator Nut
806WR17X11349 GE Refrigerator Plastic Tube
820WR30X10093 GE Refrigerator Ice Maker
1326WR1X5278 GE Refrigerator Cable Clamp
1551WR1X5645 GE Refrigerator Screw
2843WR1X2130 GE Refrigerator Screw
5041GEN WR13X10026
5062GEN WR02X10141
5075WR32X10075 GE Refrigerator Ice Bucket
5076WR32X29399 GE Refrigerator Large Freezer Basket
5086GEN WR02X10142
5098GEN WR17X10365
5103GEN WR21X10008
5104GEN WR74X10022
5145GEN WR17X10354
5161GEN WR01X10055
5228GEN WR74X10030
5304GEN WR02X10146
5308GEN WR72X10014
5321GEN WR72X10015
5344GEN WR13X10028
5359WR01X10049 GE Refrigerator Screw TRUSS HD 1/4-20 X
5360GEN WR72X10016
5361GEN WR01X10056
5420GEN WR13X10030
5437GEN WR08X10016
5438WR02X10168 GE Wire Guard Bm Ss Rh
5442GEN WR17X10392
5530GEN WR74X10051
5530GEN WR74X10157
5530GEN WR74X10214
5586GEN WR13X0670
5626GEN WB39X5026
5658WR2X8613 GE Refrigerator Strap
7271WR01X10051 GE 10-24 x 1" Phillips Head Tap
7288SCREW TOEKICK MTG
7317WR17X3046 GE Clamp 1/4"
7752WR1X1754D GE Refrigerator Screw Package
7760BARREL NUT
7763WR1X5690 GE Refrigerator Handle Screw
7871GEN WR57X10016
7873GEN WR57X10017
7957GEN WR51X0216
8013GEN WR02X8972
8140WR2X8474 GE Fill Tube
8142WR23X37285 GE Light Switch
8738WR01X10053 GE Refrigerator #8-18 TYPE AB X 3/8 Black
