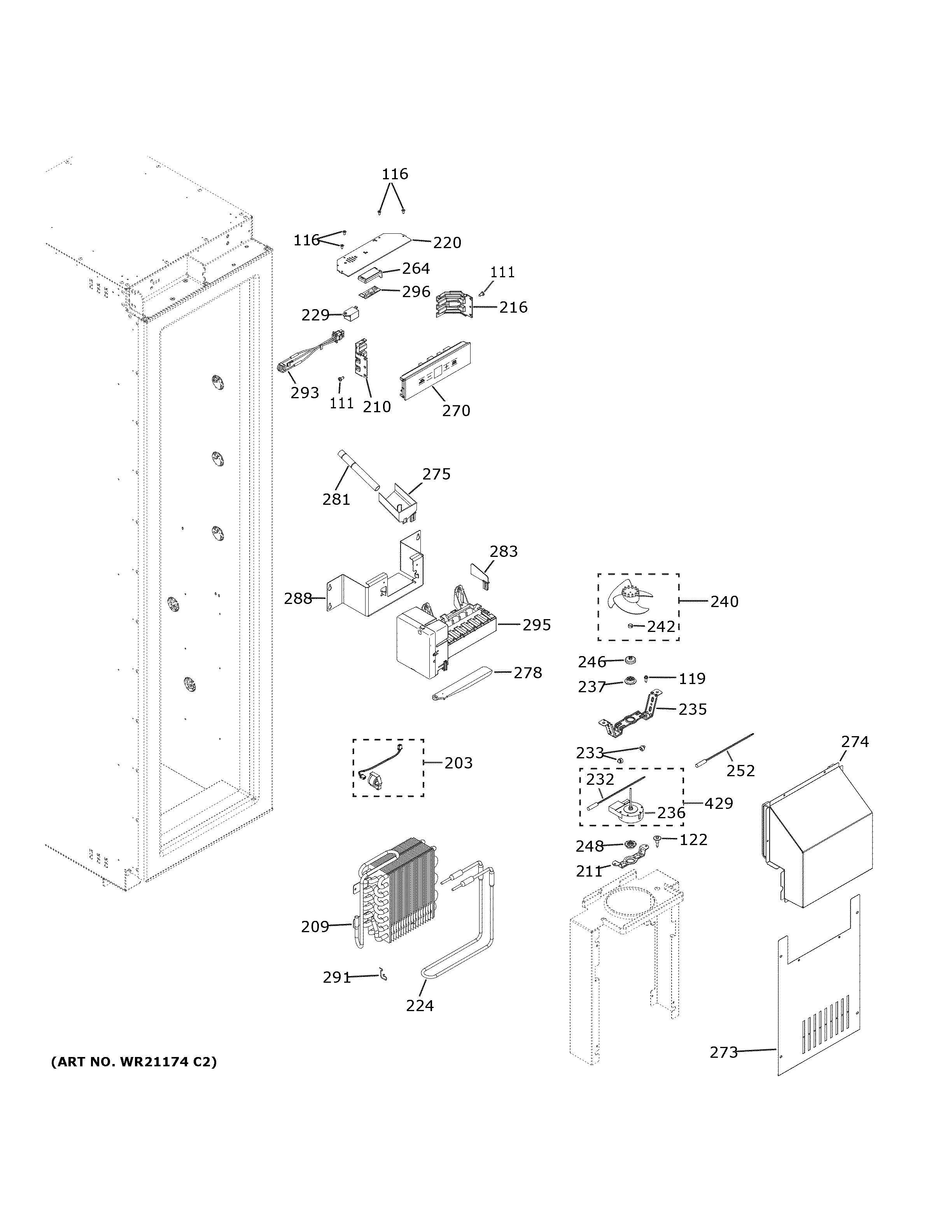

ZIF241NPNCII FREEZER SECTION

ZIF241NPNCII FREEZER SECTION

Products

PositionProduct
111WR1X5645 GE Refrigerator Screw
116WB1X5364 GE Oven Mounting Screw
119WR01X10620 GE Refrigerator Screw 10-32
122WR01X10685 GE Scraper 8-18 Assembly
203DEFROST JUMPER HARNESS
209EVAPORATOR 24 / 30"
210USER INTERFACE LEFT BRACKET
211EVAPORATOR FAN BRACKET
216USER INTERFACE RIGHT BRACKET
220USER INTERFACE TOP COVER 24"
224DEFROST HEATER 24" / 30"
229WR55X11139 GE Refrigerator Speaker
232SENSOR TEMPERATURE
233BUMPER
235WR17X12269 GE Refrigerator Evaporator Fan Front Bracket
236WR60X10185 GE Refrigerator Evaporator Fan Motor
237WR02X12008 GE Refrigerator Evaporator Fan Grommet
240EVAPORATOR FAN BLADE
242WR02X12149 GE Refrigerator Ring
246WR02X10322 GE Refrigerator Dust Cap B02
248WR02X11331 GE Refrigerator Grommet
252WR55X10025 GE Refrigerator Temperature Sensor
264WB02X20265 GE Transceiver Housing
270FREEZER USER INTERFACE GLASS AND CONTROL
273FREEZER EVAPORATOR COVER 24 / 30"
274EVAPORATOR FAN COVER PREMIUM 24/30"
275WR29X20863 GE Refrigerator Cup Fill Assembly
278ICEMAKER FEELER ARM
281WR02X13045 GE Fill Tube
283WR29X10054 GE Refrigerator Ice Maker Guard Rail
288ICEMAKER MOUNTING BRACKET 24"
291DEFROST HEATER CLIP
293WR55X29195 GE Fill Tube Heater Harness
295WR30X30098 GE Refrigerator Icemaker
296WIFI BOARD
429WR60X10284 GE Refrigerator Evaporator Fan DC Motor Assembly
