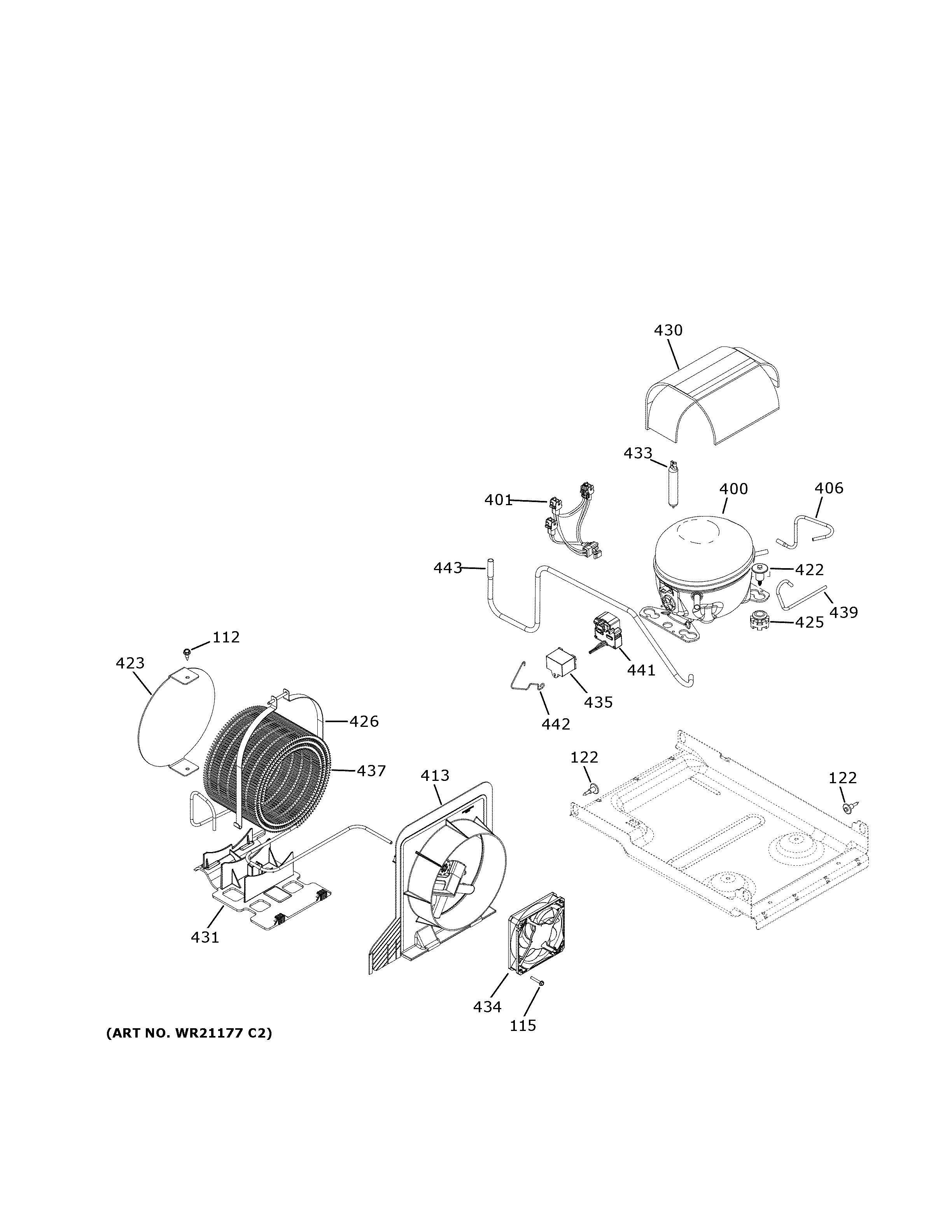

ZIF301NPNAII MACHINE COMPARTMENT

ZIF301NPNAII MACHINE COMPARTMENT

Written by

in

ZIF301NPNAII MACHINE COMPARTMENT

Products

PositionProduct
112WR01X10635 GE Scr 8-32 Ca IHVW .625 S
115SCREW 8-19 HI/LO PNP SS
122WR01X10685 GE Scraper 8-18 Assembly
400WR87X32565 GE Refrigerator Compressor
401COMPRESSOR JUMPER HARNESS
406FREEZER DISCHARGE JUMPER
413CONDENSER FAN HOUSING
422COMPRESSOR MOUNTING BOLT
423CONDENSER BAFFLE
425COMPRESSOR GROMMET
426CONDENSER STRAP
430WR02X30653 GE Refrigerator Compressor Mastic
431CONDENSER SUPPORT
433WR87X30875 GE Refrigerator R600 Dryer with Red Cap
434CONDENSER FAN
435WR55X24064 GE Refrigerator Run Capacitor
437CONDENSER
439WR84X32832 GE Freezer Process Tube
441WR55X32763 GE Refrigerator TSD Combo
442RETAINER CLIP
443FREEZER SUCTION TUBE
