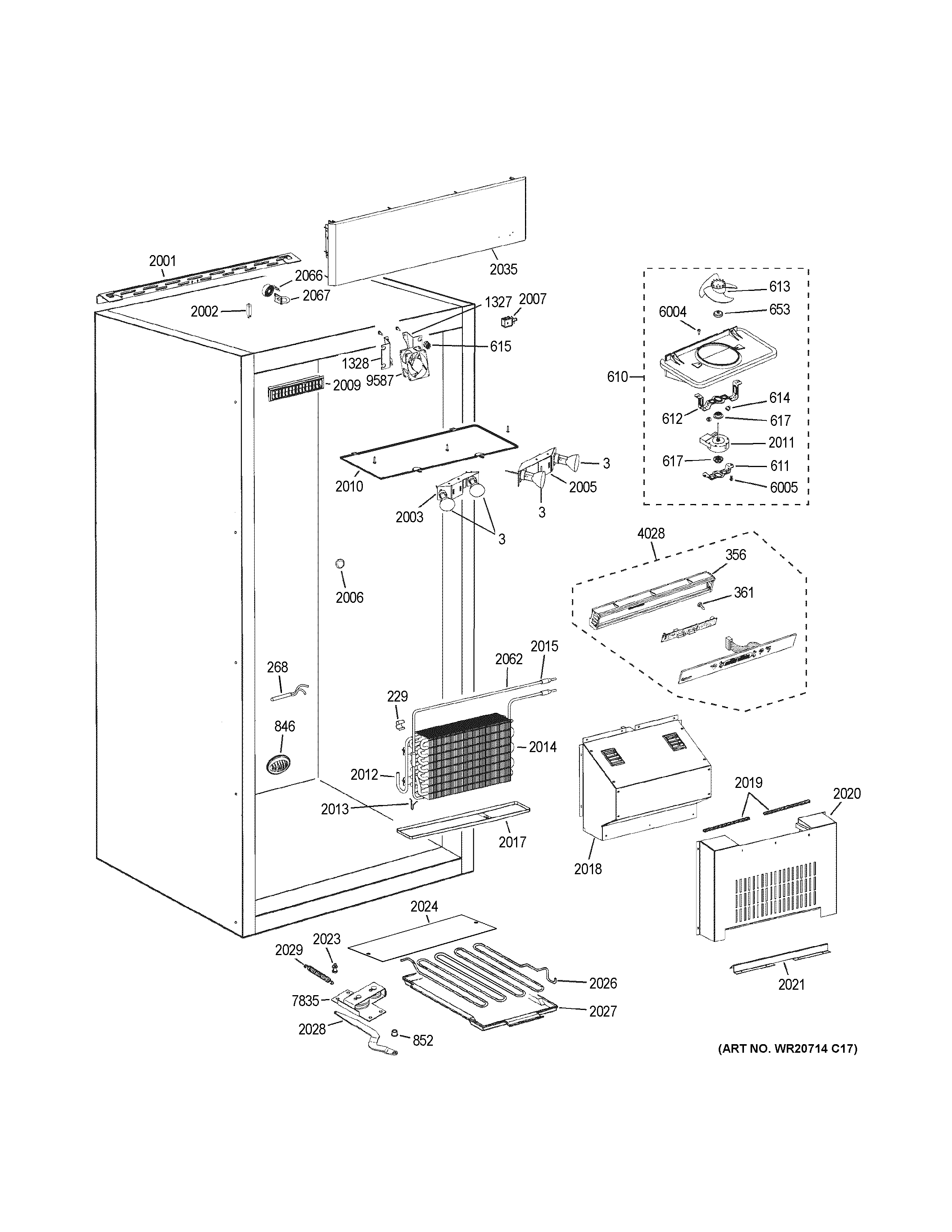

ZIF360NNBRH CABINET (1)

ZIF360NNBRH CABINET (1)

Written by

in

ZIF360NNBRH CABINET (1)

Products

PositionProduct
3WR02X32331 GE Refrigerator Halogen Light Bulb
229GEN WR02X10552
268WR55X10025 GE Refrigerator Temperature Sensor
356WR17X12676 GE Control Housing
3614-40 X 1/4 PH SMS
610WR60X10283 GE Refrigerator Evaporator Fan & Orifice Assembly
611WR02X10764 GE Refrigerator Evaporator Bracket
612WR02X10653 GE Refrigerator Orifice Fan Bracket
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X11331 GE Refrigerator Grommet
617WR02X12008 GE Refrigerator Evaporator Fan Grommet
653WR02X10322 GE Refrigerator Dust Cap B02
846WR02X10647 GE Refrigerator Grille Sensor
852WR01X10879 GE Refrigerator Bushing Arm
1327WR02X13024 GE Top Fan Bracket
1328WR02X13011 GE Left Hand Top Fan Bracket
2001WR02X42385 GE Wall Mounting Bracket
2002WR23X10269 GE Refrigerator 2 AMP Fuse
2003WR74X10309 GE Refrigerator Left-Hand Top Light Assembly
2005WR74X10308 GE Top Light Assembly Right
2006GEN WR02X10154
2007WR02X37905 GE Twist Support
2009LOUVER SD
2010CEILING LIGHT SHIELD SD
2011WR60X10284 GE Refrigerator Evaporator Fan DC Motor Assembly
2012WR01X10884 GE Defrost Heater Clip
2013WR02X13221 GE Refrigerator Evaporator SUCT Tube Jump Assembly
2014EVAP COIL
2015WR51X10113 GE Refrigerator Defrost Heater
2017WR32X23805 GE Refrigerator Drain Pan Assembly
2018WR17X12693 GE Refrigerator Evaporator Fan Cover Foam Assembly
2019WR38X10190 GE Refrigerator Edge Trim
2020EVAP COVER ASM
2021WR17X12711 GE Refrigerator Catch Evaporator Trough
2023WR01X10258 GE Spring Stud
2024WR02X13038 GE Pan Rear Cover Protector
2026WR84X23767 GE Refrigerator Condenser Bottom Support
2027WR17X11016 GE Refrigerator Drain Pan
2028WR02X10979 GE Refrigerator Link Actuator Left Hand
2029WR01X10255 GE Refrigerator Spring Fresh Food Door Closure
2035WR74X10343 GE Grill Assembly Custom
2062WR09X29404 GE Heater Harness Assembly
2066WR62X10073 GE Refrigerator Transformer Light 160VA
2067WR01X10881 GE Light Breaker Bracket
4028TEMPERATURE CONTROL BOARD AND HOUSING
6004WR01X10620 GE Refrigerator Screw 10-32
6005WD2X295 GE Refrigerator Screw
7835WR02X13316 GE Refrigerator Closure Mechanical Right Hand
9587WR60X10225 GE Refrigerator Fresh Food Fan
