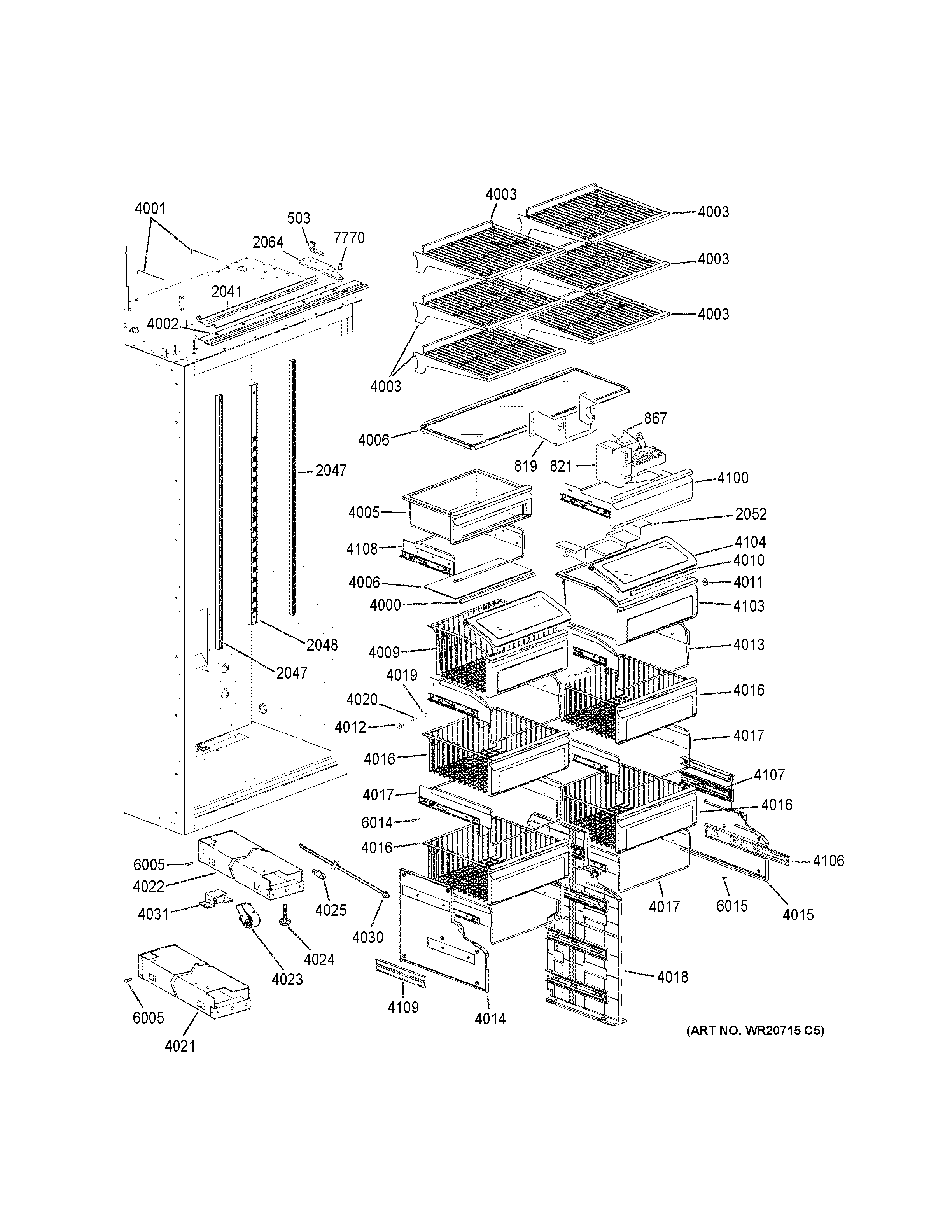

ZIF360NPBLH SHELVES & DAWERS

ZIF360NPBLH SHELVES & DAWERS

Written by

in

ZIF360NPBLH SHELVES & DAWERS

Products

PositionProduct
503WR02X13032 GE Refrigerator Spacer
819WR02X13214 GE Bracket Im
821WR30X30972 GE Refrigerator Ice Maker Kit
867WR29X20863 GE Refrigerator Cup Fill Assembly
2041EYEBROW LH FI
2047WR17X12680 GE Refrigerator Side Shelf Track
2048WR17X12681 GE Refrigerator Center Shelf Track
2052WR02X13212 GE Refrigerator Cover Pan
2064WR13X23350 GE Refrigerator Upper Hinge Case
4000STRIP SD FZ VEG PAN
4001ROD
4002SWITCH PLATE LH
4003WR71X10223 GE Freezer Wire Shelf
4005WR32X10078 GE Refrigerator Snack Pan Assembly
4006WR17X12679 GE Freezer Snack Pan Shelf
4009VEG PAN WIRE ASM
4010WR14X10040 GE Refrigerator Seal Front Showcase Lid
4011WR01X10047 GE Refrigerator Button Glide
4012WR01X10048 GE Refrigerator SHO Bushing
4013SUPPORT PAN ASM
4014SUPPORT SLIDE ASM LH
4015SUPPORT SIDE ASM RH
4016WR32X10121 GE Refrigerator Vegetable Basket Assembly
4017WR72X10200 GE Refrigerator Support Veg Basket Wire
4018WR72X10320 GE Refrigerator Divider Center Assembly
4019WR01X10046 GE Refrigerator Washer Showcase Pivot
4020WR01X10050 GE Refrigerator Screw #8 18 x 3/4
4021WR13X30112 GE Refrigerator Left Hand Base Channel
4022WR13X30113 GE Refrigerator Right HandBase Channel
4023WR02X13042 GE Front Wheel Assembly
4024LEVELING LEG
4025WR02X11233 GE Wheel Spring
4030WR01X10256 GE Refrigerator Base Shaft
4031WR2X8377 GE Refrigerator Wheel Assembly
4100COVER IM ASM
4103WR32X10728 GE Refrigerator Ice Bucket Cover Assembly
4104WR32X10720 GE Freezer Showcase Lid
4106WR72X10365 GE Refrigerator Outer Slide
4107WR72X10366 GE Refrigerator Outer Slide
4108WR72X10325 GE Refrigerator Support Snack Pan Assembly
4109SLIDE SUPPORT LOWER SD
6005WD2X295 GE Refrigerator Screw
6014WR1X2129 GE Screw
6015WR01X10449 GE Screw 6X1/2 Pan Head Phillips
7770WR02X11209 GE Refrigerator Shear Pin
