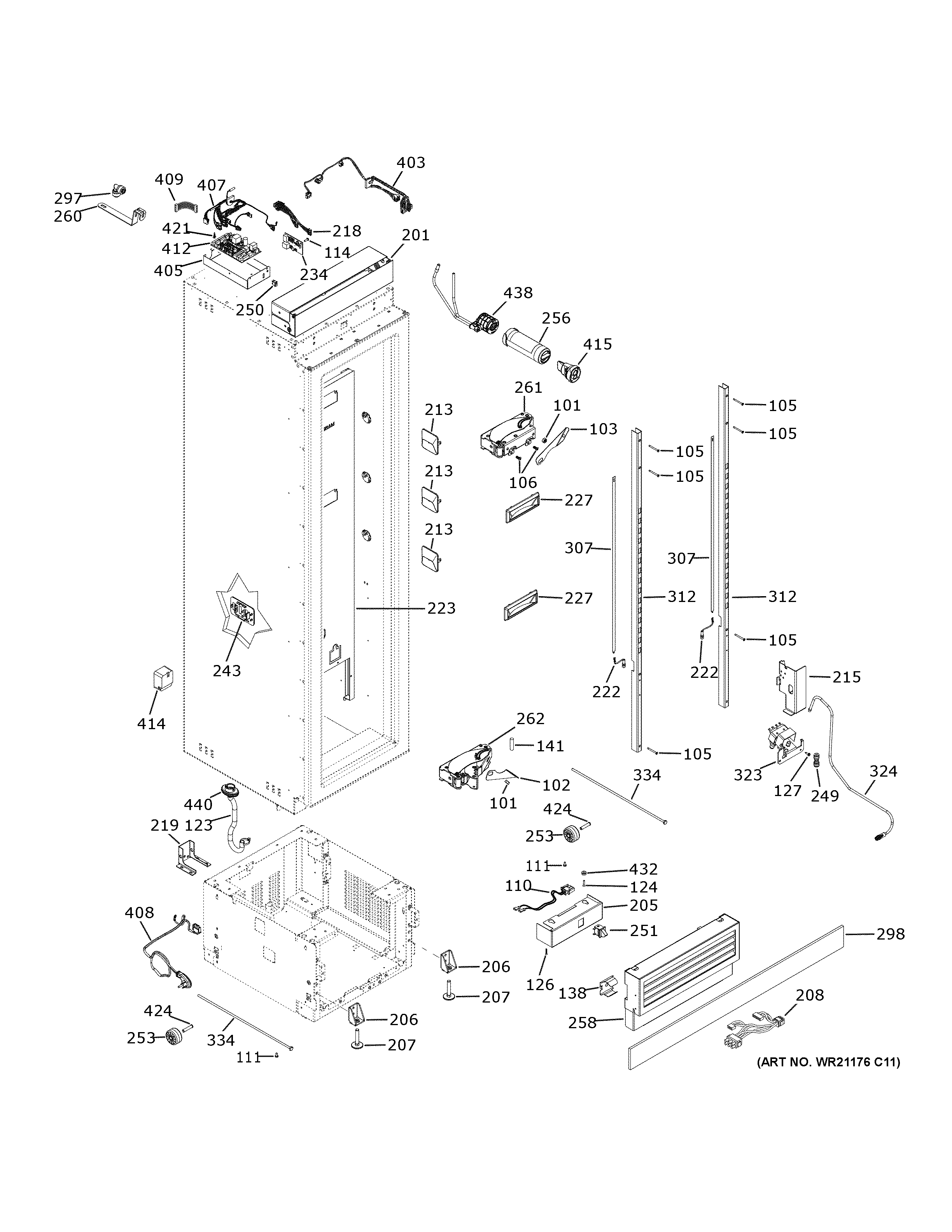

ZIF361NPRCII CASE PARTS

ZIF361NPRCII CASE PARTS

Written by

in

ZIF361NPRCII CASE PARTS

Products

PositionProduct
101NUT 5/16-18 THD
102WR02X29086 GE Slide Bracket Left
103WR02X29085 GE Left Hinge Door Support
105SCREW 10-24 TT FLT 1.60 S
106WR02X29021 GE Refrigerator Bolt M6 T30
110DOOR SWITCH JUMPER HARNESS
111WR1X5645 GE Refrigerator Screw
114WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
123DRAIN TUBE
124WR01X10050 GE Refrigerator Screw #8 18 x 3/4
126WD02X10115 GE Screw 6-19 Flp 3/4 S
127WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
138FRONT ACCESS COVER CLIP
141WR02X30724 GE Refrigerator Hinge Limit Pin
201UPPER ACCESS COVER 36"
205LIGHTSWITCHHOUSING
206LEVELER BRACKET
207LEVELING LEG
208RJ45 HARNESS
213WR55X29609 GE Refrigerator LED Cabinet
215WATER VALVE BRACKET
218HUMIDITY SENSOR JUMPER HARNESS
219ANTI TIP BRACKET
222BUS BAR JUMPER HARNESS
223FREEZER AIR TOWER 36"
227AIR VENT COVER 36"
234WR55X34647 GE Refrigerator Humidity Board
243WR02X12839 GE Refrigerator Grille Sensor
249WR02X13738 GE Refrigerator Coupler Straight 1/4
250WR49X10070 GE Refrigerator Master Light SW. Kit
251WR23X10734 GE Light Switch
253WR02X10480 GE Refrigerator Mobility Wheel
256XWFE GE Refrigerator Water Filter
258LOWERACCESSCOVER 36"
260XWF FILTER REMOVAL TOOL
261WR13X32809 GE Articulating Hinge Right
262WR13X32824 GE Left Articulating Hinge
2971/4" 90 DEGREE UNION
298TOE KICK 36"
307LIGHTING BUS BAR
312CANTILEVER SHELF TRACK
323WATER VALVE AND TUBE ASM
324WR02X32825 GE Refrigerator Water Line
334LEVELING SCREW
403WR55X32821 GE Main Accessory Harness
405MAIN CONTROL BOARD COVER
407MAIN DC HARNESS
408WR23X30808 GE Power Cord Extension
409PERSONALITY HARNESS FREEZER 36"
412WR55X42925 GE Mainboard Assembly
414CAP & SUCTION TUBE LOCATOR BLOCK
415WR17X33825 GE Bypass Filter Plug
421WR02X29169 GE Main Board Standoff
424WHEEL AXLE
432WR02X10678 GE Refrigerator Grommet
438WR02X32839 GE Water Filter Manifold
440WR01X29135 GE Refrigerator Drain Vacuum BR
440DEFROST DRAIN VACUUM BREAK VALVE
