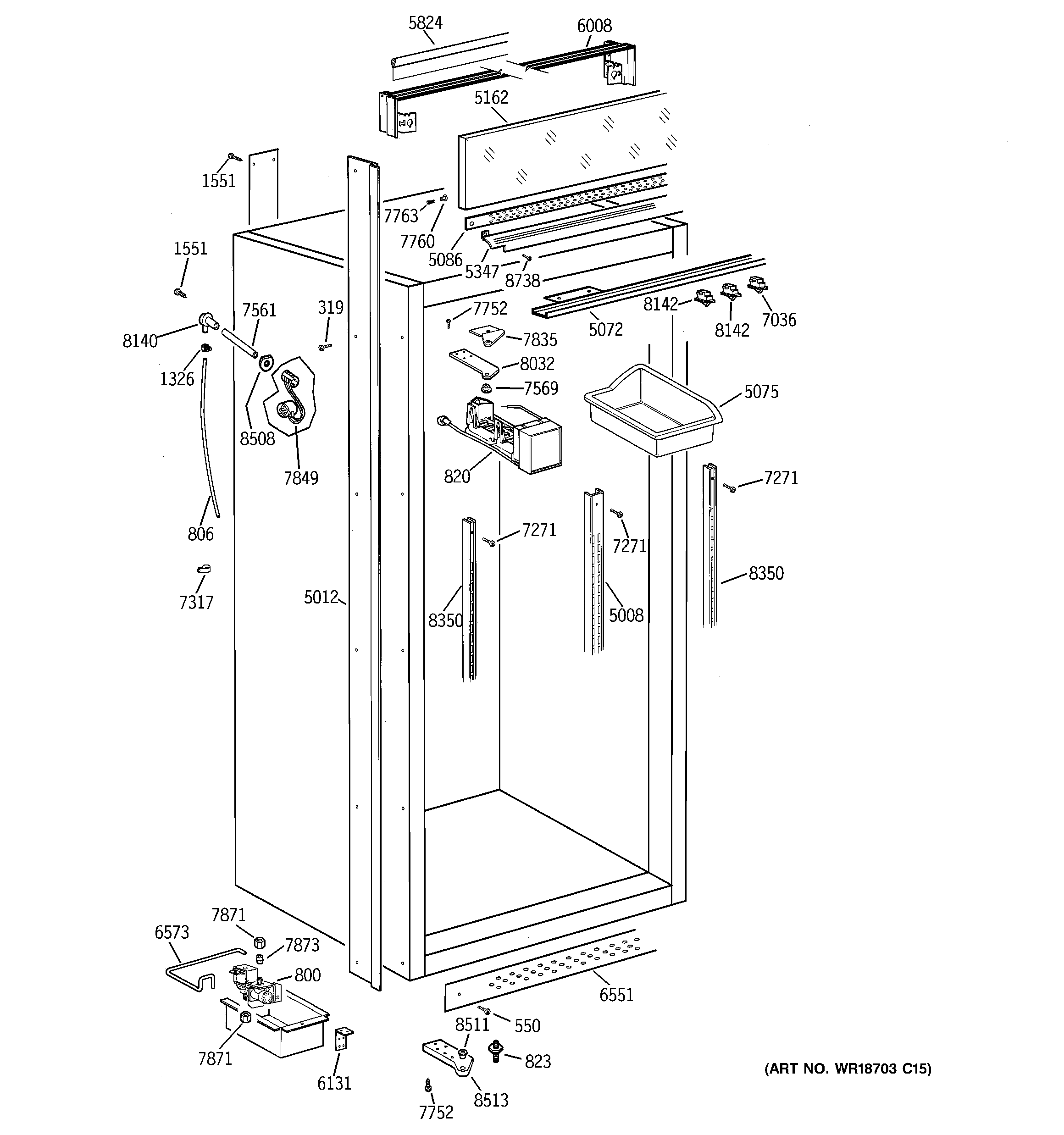

ZIF36NMALH CABINET PARTS (2)

ZIF36NMALH CABINET PARTS (2)

Written by

in

ZIF36NMALH CABINET PARTS (2)

Products

PositionProduct
319WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
550WR01X10065 GE Screw
800WR57X10033 GE Refrigerator Water Inlet Fill Valve
806WR17X11349 GE Refrigerator Plastic Tube
820WR30X10093 GE Refrigerator Ice Maker
823GEN WR01X10187
1326WR1X5278 GE Refrigerator Cable Clamp
1551WR1X5645 GE Refrigerator Screw
5008WR72X23860 GE Refrigerator Center Track Shelf Assembly
5012GEN WR17X10459
5072GEN WR17X10652
5075WR32X10075 GE Refrigerator Ice Bucket
5086GEN WR02X10142
5162GRILL PANEL ASM 84 IN
5347GEN WR02X10148
5824GEN WR02X9490
6008GEN WR74X10161
6131GEN WR02X11628
6551WR74X10047 GE Refrigerator Toekick 36 SD Left Hand
6573GEN WR02X10477
7036SWITCH AUG #780101
7271WR01X10051 GE 10-24 x 1" Phillips Head Tap
7317WR17X3046 GE Clamp 1/4"
7561WR2X8612 GE Refrigerator Fill Tube
7569GEN WR02X8587
7752WR1X1754D GE Refrigerator Screw Package
7760BARREL NUT
7763WR1X5690 GE Refrigerator Handle Screw
7835WR13X10080 GE Refrigerator Hinge Cover Left Hand
7849GEN WR51X10056
7871GEN WR57X10016
7873GEN WR57X10017
8032GEN WR13X10081
8140WR2X8474 GE Fill Tube
8142WR23X37285 GE Light Switch
8350WR17X20773 GE Refrigerator Shelf Track
8508GEN WR01X10176
8511BUSHING, FF HINGE
8513GEN WR13X10099
8738WR01X10053 GE Refrigerator #8-18 TYPE AB X 3/8 Black
