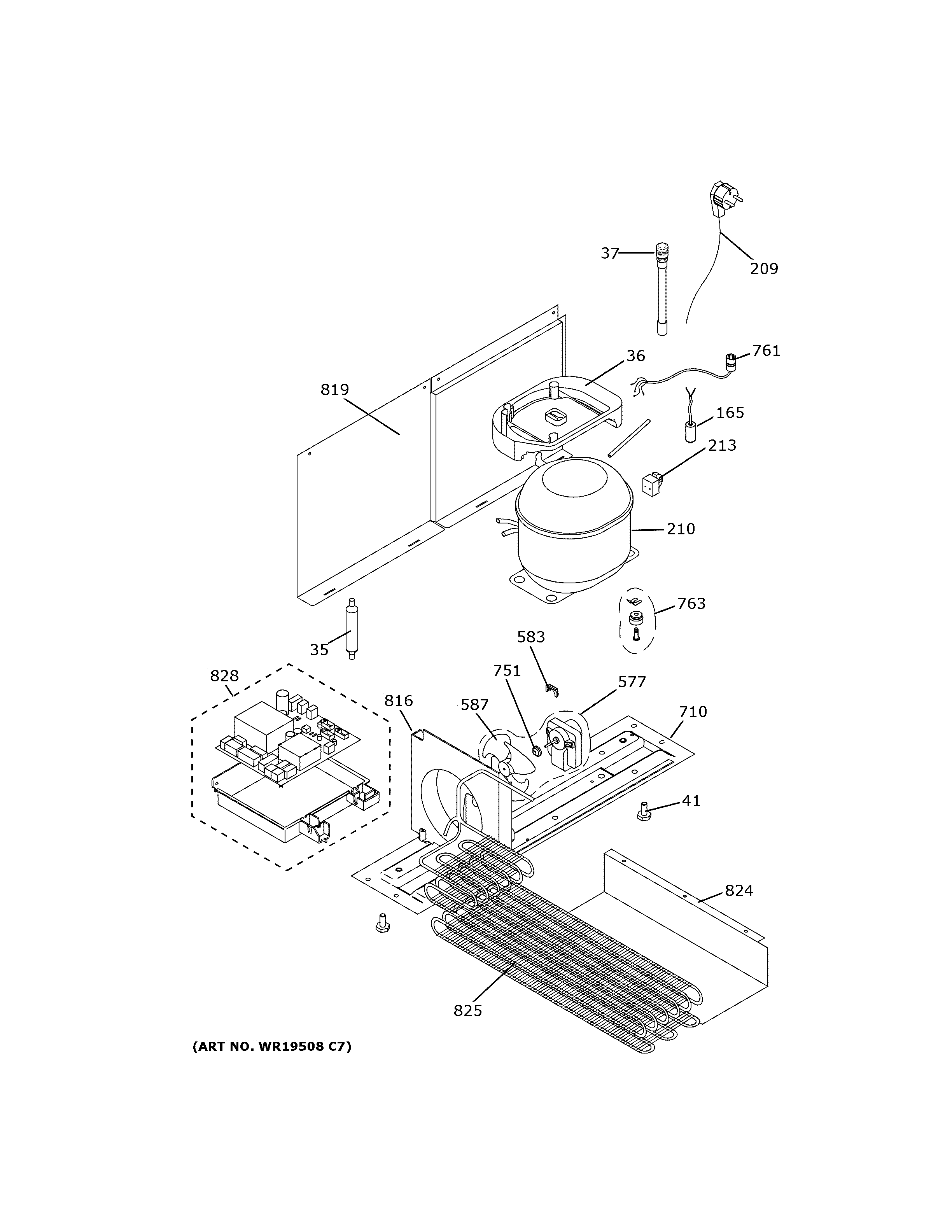

ZIFI240HDII MACHINE COMPARTMENT

ZIFI240HDII MACHINE COMPARTMENT

Written by

in

ZIFI240HDII MACHINE COMPARTMENT

Products

PositionProduct
35WR87X30875 GE Refrigerator R600 Dryer with Red Cap
36DRAIN PAN
37WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
41WR01X10384 GE Refrigerator Rear Levelling Leg
165CAPACITOR
209WR23X10373 GE Refrigerator Power Cord
210WR87X35307 GE Refrigerator Compressor
213PTCR COMBO
577WR60X23878 GE Refrigerator Condenser Fan Motor
583WR01X23838 GE Condenser Fan Spring Pin
587WR60X10164 GE Refrigerator Fan Propeller
710BASE PLATE
751WR01X10350 GE Fan Rubber
761COMPRESSOR HARNESS
763WR01X10452 GE Compressor Mounting Kit
816WR17X11675 GE Refrigerator Condenser Fan Housing
819MACHINE COVER
824WR17X11679 GE Condenser Canal
825CONDENSER
828WR55X35325 GE Refrigerator Power Supply Board
