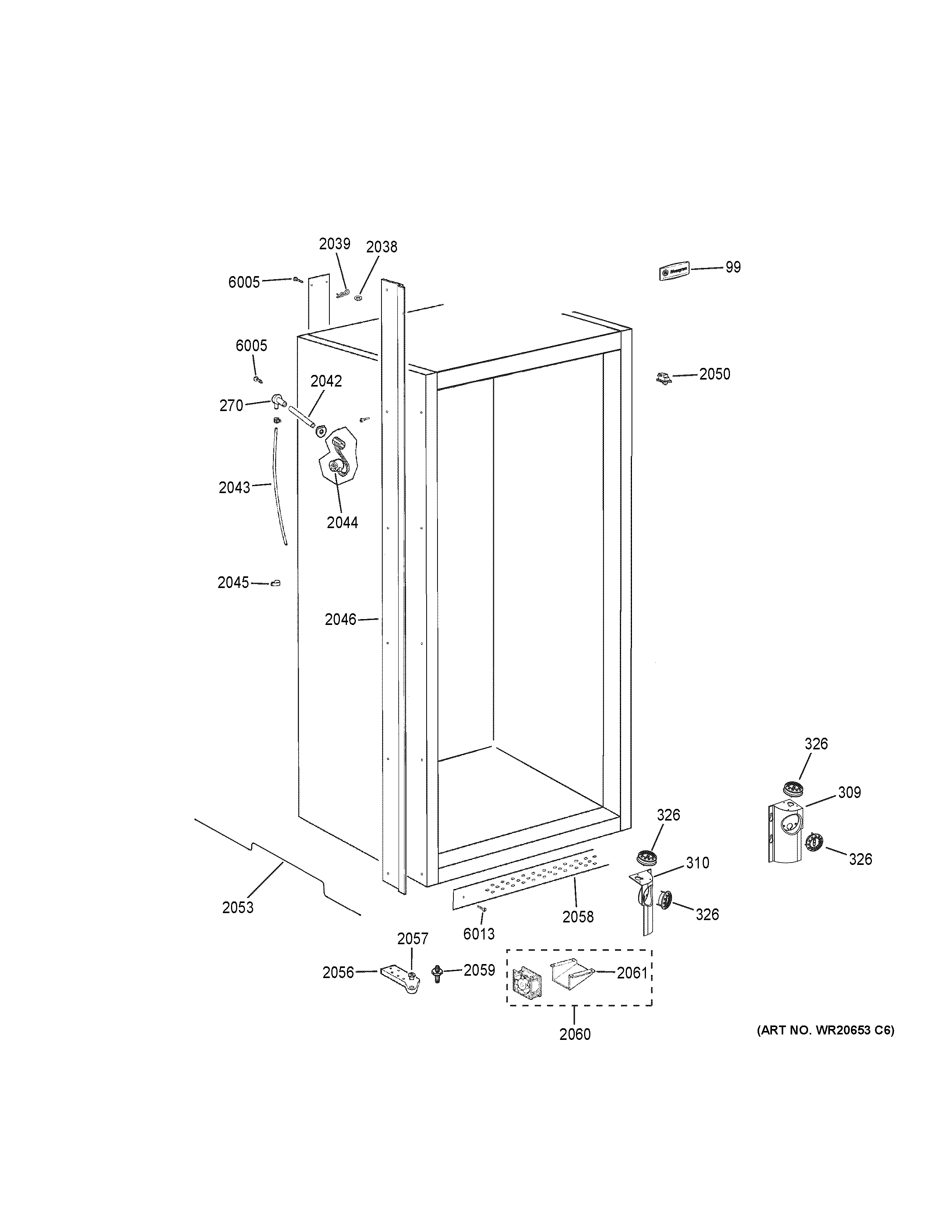

ZIFS360NHARH CABINET (2)

ZIFS360NHARH CABINET (2)

Written by

in

ZIFS360NHARH CABINET (2)

Products

PositionProduct
99WB02K10295 GE Oven Monogram Badge
270WR02X13037 GE Water Fill Grommet
309WR17X12689 GE Refrigerator Right Hand Bottom Light Assembly
310WR17X12690 GE Left Hand Bottom Light Assembly
326WR02X11198 GE Refrigerator Halogen QC Lamp Assembly
2038WR01X10906 GE Washer 3/8"
2039HAIRPIN COTTER
2042WR02X13045 GE Fill Tube
2043WR17X1948 GE Refrigerator Water Line
2044WR49X10206 GE Refrigerator Fill Tube Assembly
2045WR17X3046 GE Clamp 1/4"
2046TRIM CASE SIDE LH
2050WR23X37285 GE Light Switch
2053WR02X28071 GE Refrigerator Rotating Bin
2056WR13X10688 GE Lower Case Hinge Right and Left
2057WR02X10953 GE Refrigerator Bushing Hinge Bottom
2058WR74X23781 GE Right Side Toe Kick Service
2059WR13X10239 GE Refrigerator Lower Hinge Pin Adjuster
2060WR60X23769 GE Refrigerator Drain Fan Bracket Assembly
2061BRACKET FAN MTG
6005WD2X295 GE Refrigerator Screw
6013WR01X10065 GE Screw
