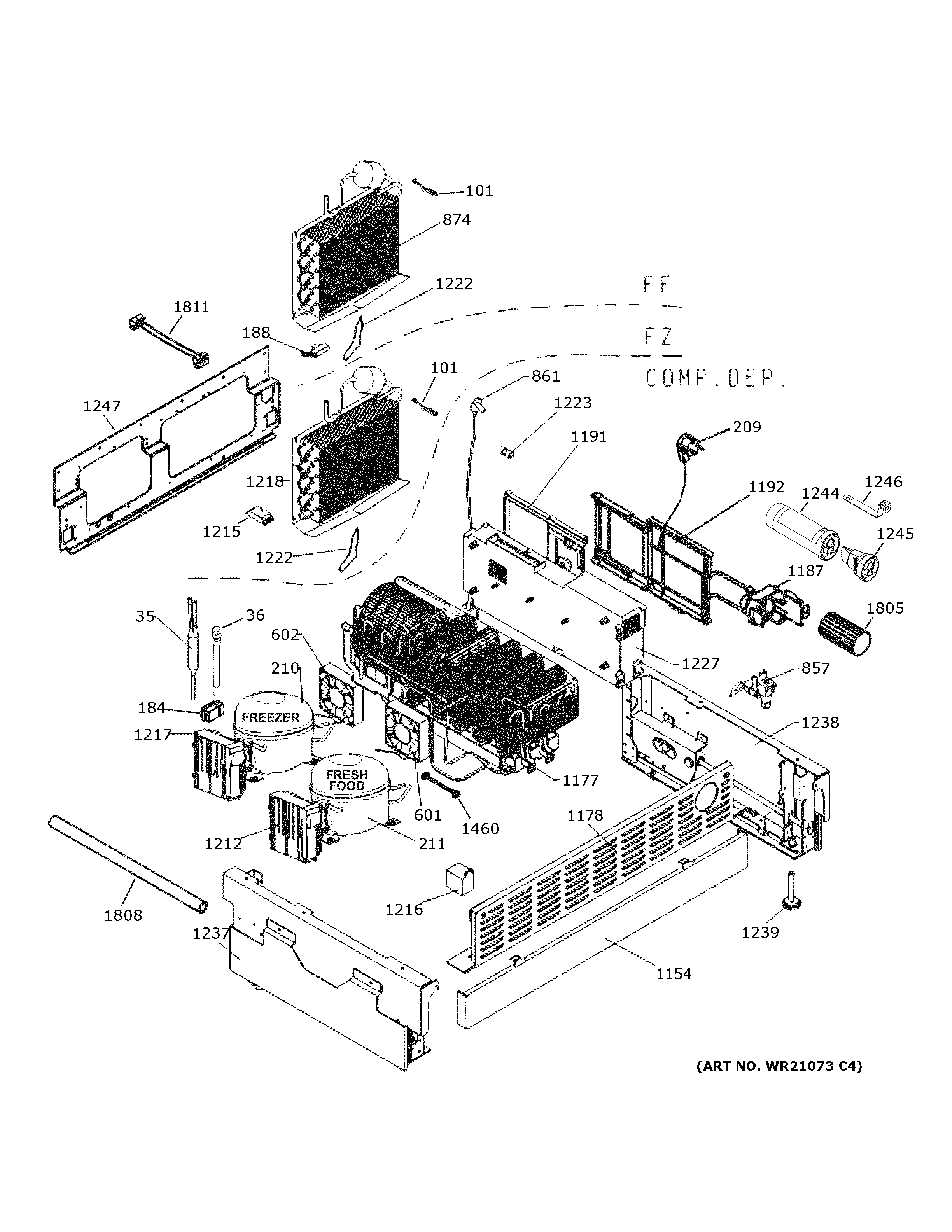

ZIK303NPPBII MACHINE COMPARTMENT

ZIK303NPPBII MACHINE COMPARTMENT

Written by

in

ZIK303NPPBII MACHINE COMPARTMENT

Products

PositionProduct
35WR87X30875 GE Refrigerator R600 Dryer with Red Cap
36WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
101WR55X10409 GE Refrigerator Temperature Sensor
184DRAIN PAN & TUBE
188WR23X10704 GE Refrigerator Thermal Fuse
209WR23X10727 GE Refrigerator Supply Cord
210COMPRESSOR FZ
211COMPRESSOR FF
601WR60X10328 GE Refrigerator Condenser Fan
602WR60X10338 GE Freezer Condenser Fan
857WR57X43105 GE Water Valve
861FILL TUBE ASM
874WR85X10138 GE Refrigerator Evaporator Assembly
1154WR79X10063 GE Refrigerator Kick Plate
1177WR84X10101 GE Condenser Assembly
1178WR13X10912 GE Refrigerator Compressor COMP.Cover FR
1187FILTER HEAD WITH MOUNTING BRACKET
1191WR32X10841 GE Right Electronics Cover
1192WR32X10842 GE Left Electronics Cover
1212WR55X32139 GE Inverter
1215AIRBLOCK RH
1216WR02X13600 GE Refrigerator EMI Filter
1217WR55X32140 GE Freezer Inverter
1218WR85X10139 GE Refrigerator Evaporator Assembly
1222WR02X13470 GE Refrigerator Heater Drain DEFROST"
1223WR02X13738 GE Refrigerator Coupler Straight 1/4
1227WR55X11162 GE Refrigerator Main Control Board
1237WR02X13598 GE Refrigerator Base Channel Assembly Left
1238WR02X13599 GE Refrigerator Right Base Channel Assembly
1239WR01X10994 GE Refrigerator Leveling Screw
1244XWFE GE Refrigerator Water Filter
1245WR17X33825 GE Bypass Filter Plug
1246XWF FILTER REMOVAL TOOL
1247FULL REAR COVER
1460WIRING HARNESS FAN+R22 OHM
1805XWFE FILTER COVER
1808WATER SUPPLY CONDUIT
1811SERVICE HARNESS EXTENSION
