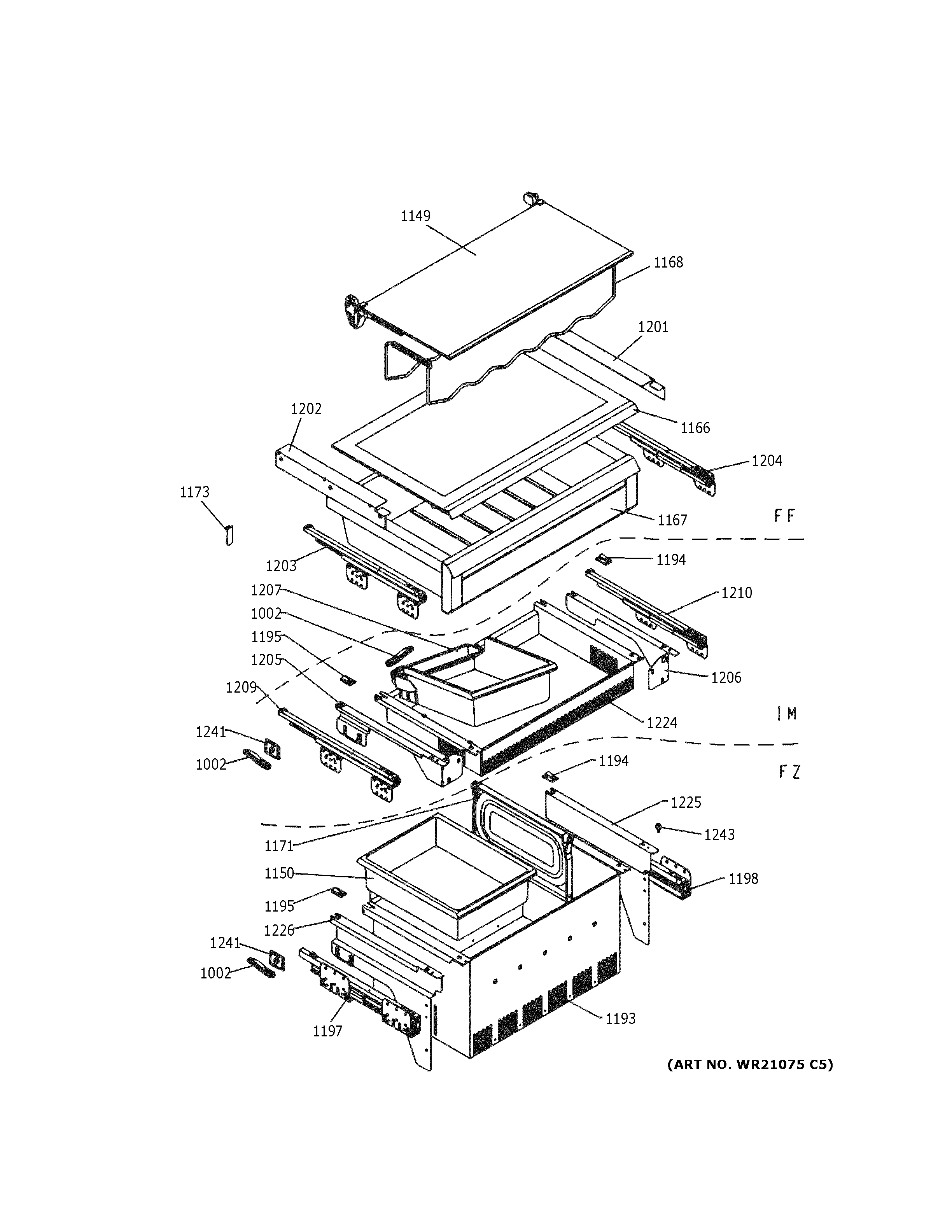

ZIK30GNNAII SHELVES & DRAWERS

ZIK30GNNAII SHELVES & DRAWERS

Written by

in

ZIK30GNNAII SHELVES & DRAWERS

Products

PositionProduct
1002WR23X10378 GE Refrigerator Reed Switch
1149WR71X11025 GE Refrigerator Glass Shelf Assembly
1150WR30X10153 GE Refrigerator Sliding Tray
1166WR71X10999 GE Vegetables Shelf Assembly
1167WR32X10843 GE Crisper Pan Assembly
1168BOTTLE HOLDER ASM
1171DRAWER PARTITION WALL
1173COVER-SHELF TRACK INSERT
1193BOTTOM DRAWER ASM
1194WR02X13461 GE Refrigerator Drawer Lock Left Hand
1195WR02X13462 GE Refrigerator Drawer Lock Right Hand
1197WR72X10390 GE Refrigerator Bottom Drawer Slide Left Hand
1198WR72X10391 GE Refrigerator Right Hand Bottom Drawer Slide
1201VEG SHELF HOLDER RH
1202WR38X10454 GE Refrigerator Left Hand Vegetable Shelf Holder
1203WR72X10393 GE Refrigerator Left Hand Slide
1204WR72X10392 GE Refrigerator Right-Hand Slide
1205ICE DRAWER HOLDER LH
1206WR17X12973 GE Right-Hand Ice Drawer Holder
1207WR31X10076 GE Refrigerator Ice Tray Assembly
1209ICE DRAWER SLIDE LH
1210ICE DRAWER SLIDE RH
1224WR31X10075 GE Ice Drawer
1225WR17X12962 GE Refrigerator Drawer Door Holder Right Hand
1226DRAWER DOOR HOLDER FZ LH
1241WR23X10726 GE Refrigerator Reed Switch Holder
1243WR01X10995 GE Refrigerator Thumb Screw
