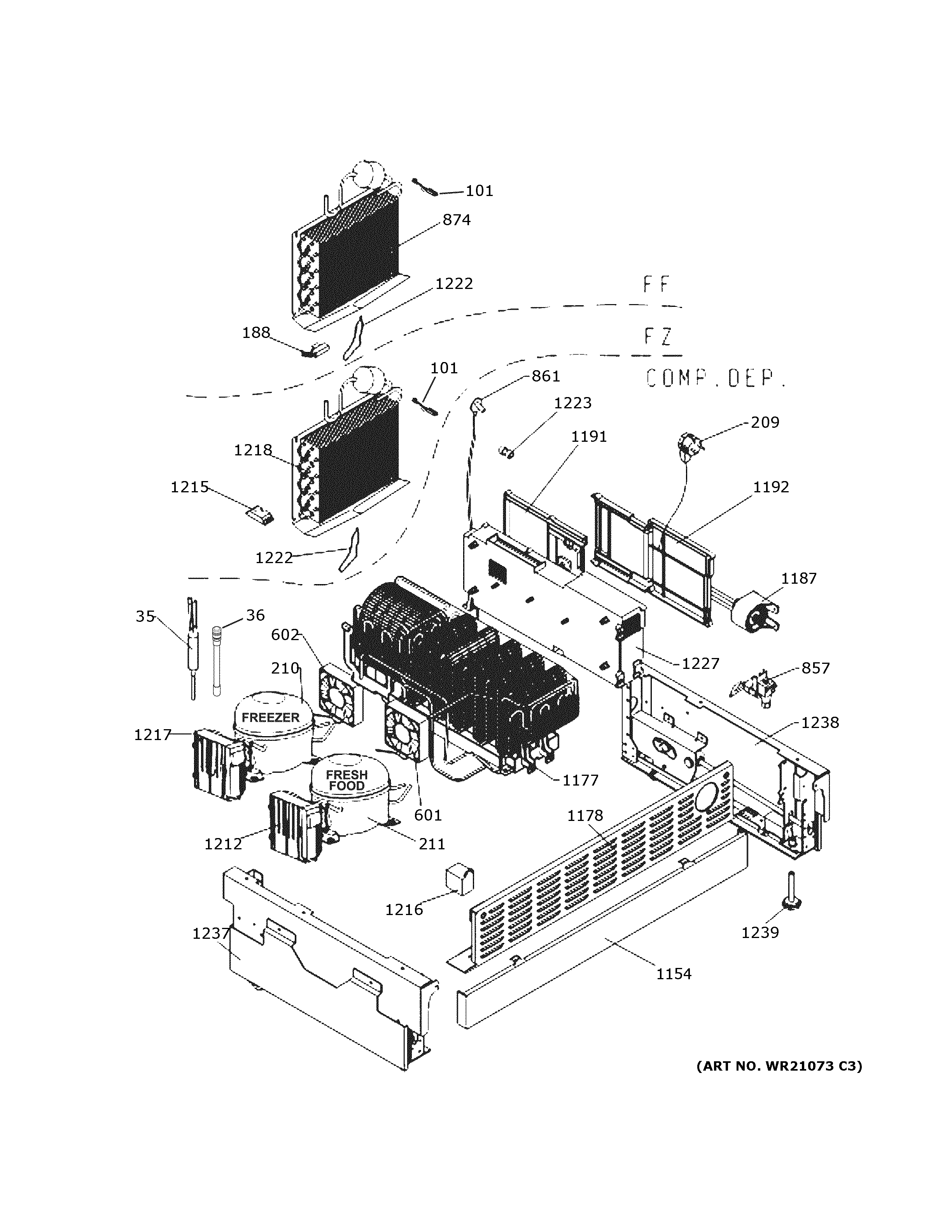

ZIK30GNNCII MACHINE COMPARTMENTadmin2025-04-26T10:54:07+00:00ZIK30GNNCII MACHINE COMPARTMENT ProductsPositionProduct35WR87X30875 GE Refrigerator R600 Dryer with Red Cap36WR87X30876 GE Refrigerator R600 Process Valve with Red Cap101WR55X10409 GE Refrigerator Temperature Sensor188WR23X10704 GE Refrigerator Thermal Fuse209WR23X10727 GE Refrigerator Supply Cord210COMPRESSOR FZ211COMPRESSOR FF601WR60X10328 GE Refrigerator Condenser Fan602WR60X10338 GE Freezer Condenser Fan857WR57X43105 GE Water Valve861FILL TUBE ASM874WR85X10138 GE Refrigerator Evaporator Assembly1154WR79X10063 GE Refrigerator Kick Plate1177WR84X10101 GE Condenser Assembly1178WR13X10912 GE Refrigerator Compressor COMP.Cover FR1187WR17X12956 GE Refrigerator Water Filter Head Assembly1191WR32X10841 GE Right Electronics Cover1192WR32X10842 GE Left Electronics Cover1212WR55X32139 GE Inverter1215AIRBLOCK RH1216WR02X13600 GE Refrigerator EMI Filter1217WR55X32140 GE Freezer Inverter1218WR85X10139 GE Refrigerator Evaporator Assembly1222WR02X13470 GE Refrigerator Heater Drain DEFROST"1223CONNECTOR, FILL TUBE"1227WR55X11162 GE Refrigerator Main Control Board1237WR02X13598 GE Refrigerator Base Channel Assembly Left1238WR02X13599 GE Refrigerator Right Base Channel Assembly1239WR01X10994 GE Refrigerator Leveling Screw
