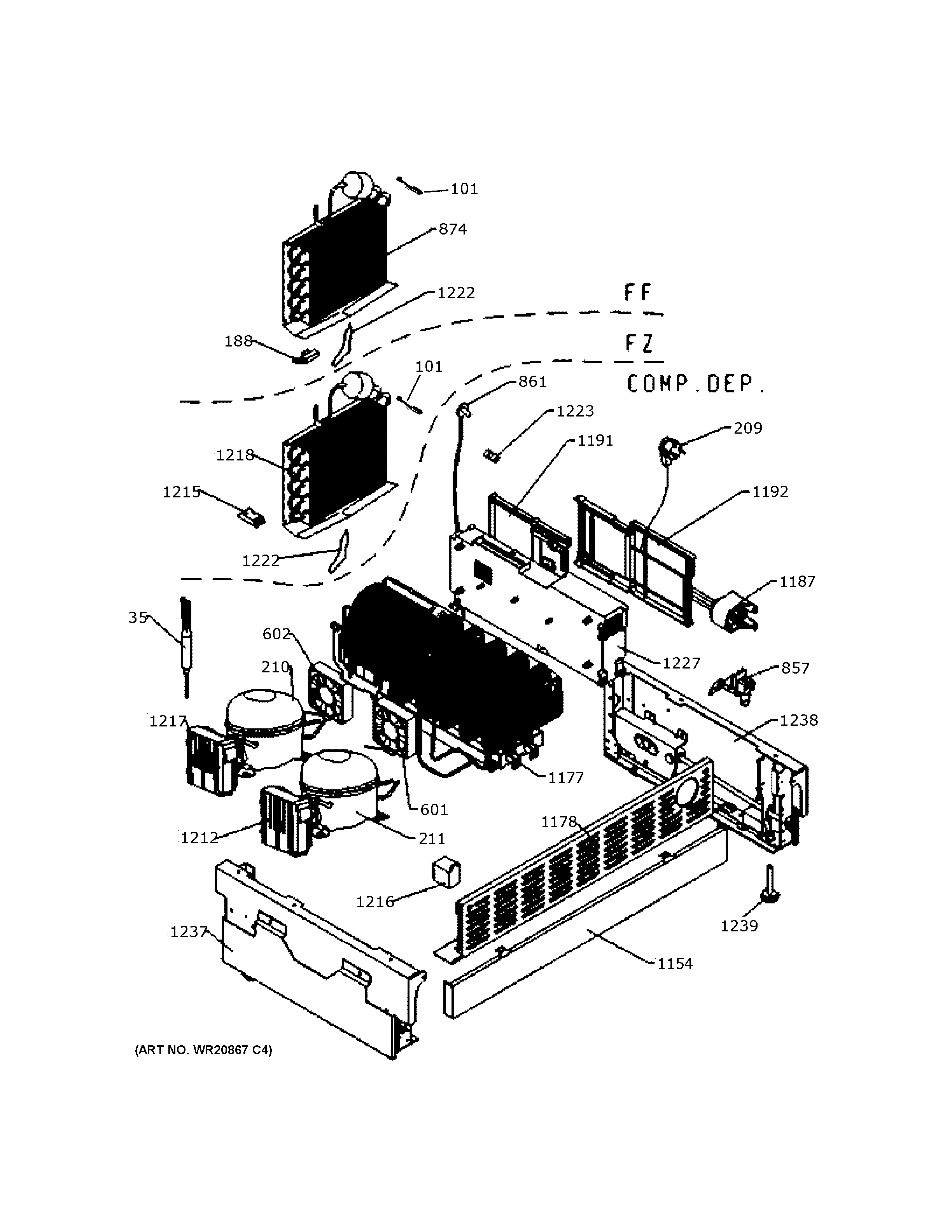

ZIK30GNZAII MACHINE COMPARTMENT

ZIK30GNZAII MACHINE COMPARTMENT

Written by

in

ZIK30GNZAII MACHINE COMPARTMENT

Products

PositionProduct
35WR86X10083 GE Filter Dryer
101WR55X10409 GE Refrigerator Temperature Sensor
188WR23X10704 GE Refrigerator Thermal Fuse
209WR23X10727 GE Refrigerator Supply Cord
210COMPRESSOR FZ
211COMPRESSOR FF
601WR60X10328 GE Refrigerator Condenser Fan
602WR60X10338 GE Freezer Condenser Fan
857WR57X43105 GE Water Valve
861FILL TUBE ASM
874WR85X10138 GE Refrigerator Evaporator Assembly
1154WR79X10063 GE Refrigerator Kick Plate
1177WR84X10101 GE Condenser Assembly
1178WR13X10912 GE Refrigerator Compressor COMP.Cover FR
1187WR17X12956 GE Refrigerator Water Filter Head Assembly
1191WR32X10841 GE Right Electronics Cover
1192WR32X10842 GE Left Electronics Cover
1212WR55X11081 GE Refrigerator Inverter
1215AIRBLOCK RH
1216WR02X13600 GE Refrigerator EMI Filter
1217INVERTER – FZ
1218WR85X10139 GE Refrigerator Evaporator Assembly
1222WR02X13470 GE Refrigerator Heater Drain DEFROST"
1223CONNECTOR, FILL TUBE"
1227MAIN CONTROL BOARD
1237WR02X13598 GE Refrigerator Base Channel Assembly Left
1238WR02X13599 GE Refrigerator Right Base Channel Assembly
1239WR01X10994 GE Refrigerator Leveling Screw
