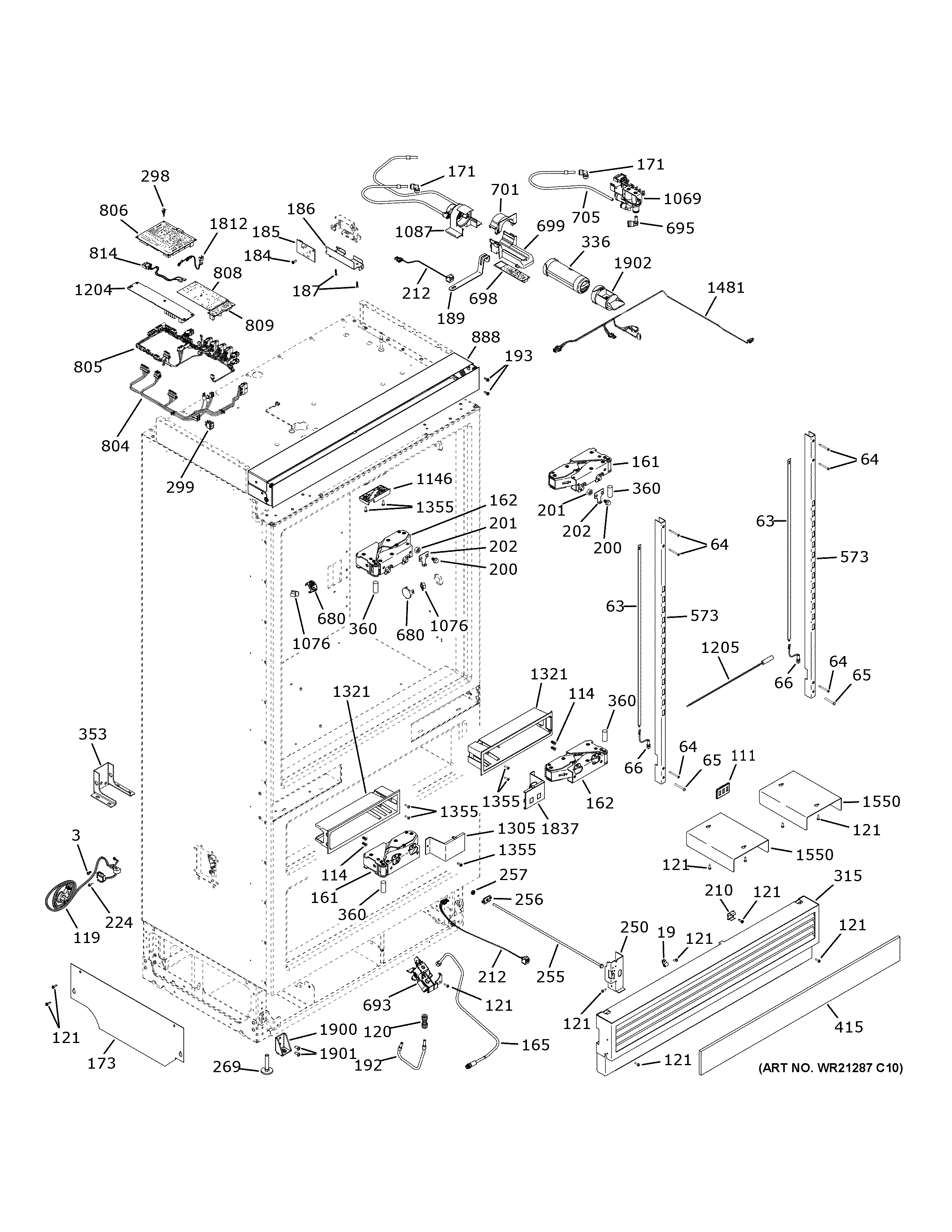

| 3 | WS02X10087 GE Screws 10-32 GX HXW 7/16 S |
| 19 | WR17X3046 GE Clamp 1/4" |
| 63 | LIGHTING BUS BAR |
| 64 | SCREW 10-24 TT FLT 1.60 S |
| 65 | SCREW 10-24 TT TRT 1.50 S |
| 66 | BUS BAR JUMPER HARNESS |
| 111 | WR02X12839 GE Refrigerator Grille Sensor |
| 114 | WR02X29021 GE Refrigerator Bolt M6 T30 |
| 119 | WR23X30808 GE Power Cord Extension |
| 120 | WR02X13738 GE Refrigerator Coupler Straight 1/4 |
| 121 | WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S |
| 161 | WR13X32809 GE Articulating Hinge Right |
| 162 | WR13X32824 GE Left Articulating Hinge |
| 165 | WR02X32825 GE Refrigerator Water Line |
| 171 | 1/4" 90 DEGREE UNION |
| 173 | LEFT SIDE ACCESS COVER |
| 184 | WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S |
| 185 | WR55X40048 GE Humidity Control Board |
| 186 | HUMIDITY SENSOR BRACKET |
| 187 | WD02X10115 GE Screw 6-19 Flp 3/4 S |
| 189 | XWF FILTER REMOVAL TOOL |
| 192 | FORMED WATER LINE |
| 193 | WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S |
| 200 | SCR 5/16-18 B IHXW 1/2 S |
| 201 | NUT 5/16-18 THD |
| 202 | BRACKET SLIDE |
| 210 | FRONT ACCESS COVER CLIP |
| 212 | RJ45 HARNESS |
| 224 | WR01X10635 GE Scr 8-32 Ca IHVW .625 S |
| 250 | WATER VALVE BRACKET |
| 255 | LEVELING SCREW |
| 256 | WD02X22539 GE Dishwasher Leveling Nut |
| 257 | NUT LOCK |
| 269 | LEVELING LEG |
| 298 | WR02X29169 GE Main Board Standoff |
| 299 | WR49X10070 GE Refrigerator Master Light SW. Kit |
| 315 | LOWERACCESSCOVER 36" |
| 336 | XWFE GE Refrigerator Water Filter |
| 353 | ANTI TIP BRACKET |
| 360 | WR02X30724 GE Refrigerator Hinge Limit Pin |
| 415 | TOE KICK MAGNET - FULL LENGTH |
| 573 | CANTILEVER SHELF TRACK |
| 680 | LED LENS |
| 693 | VALVE WATER ISO ASM |
| 695 | WR02X13754 GE Connector 5/16 Stem Height |
| 698 | RFID BOARD |
| 699 | LEAK DETECT HOUSING |
| 701 | LEAK DETECT COVER |
| 705 | WATER LINE |
| 804 | MAIN AC HARNESS |
| 805 | MAIN DC HARNESS |
| 806 | WR55X47345 GE Main Control Board |
| 808 | WR55X31984 GE Refrigerator Power Supply Board |
| 809 | LED DRIVE BOARD PCBA |
| 814 | PERSONALITY HARNESS |
| 888 | UPPER ACCESS COVER 36" |
| 1069 | DUAL WATER VALVE |
| 1076 | PCB ASM POINT LED LIGHT |
| 1087 | XWF FILTER MANIFOLD ASSEMBLY |
| 1146 | STRIKER PLATE |
| 1204 | DOOR BOARD |
| 1205 | WR55X10025 GE Refrigerator Temperature Sensor |
| 1305 | POCKET HINGE COVER |
| 1321 | POCKET HINGE HOUSING |
| 1355 | WB01X22380 GE Screw (White) |
| 1481 | HUMIDITY SENSOR JUMPER |
| 1550 | U BRACKET |
| 1812 | JUMPER DOOR HEATER |
| 1837 | STRIKER PLATE ASSEMBLY |
| 1900 | LEVELER BRACKET |
| 1901 | BRACKET LEVELER SCREW |
| 1902 | WR17X33825 GE Bypass Filter Plug |
