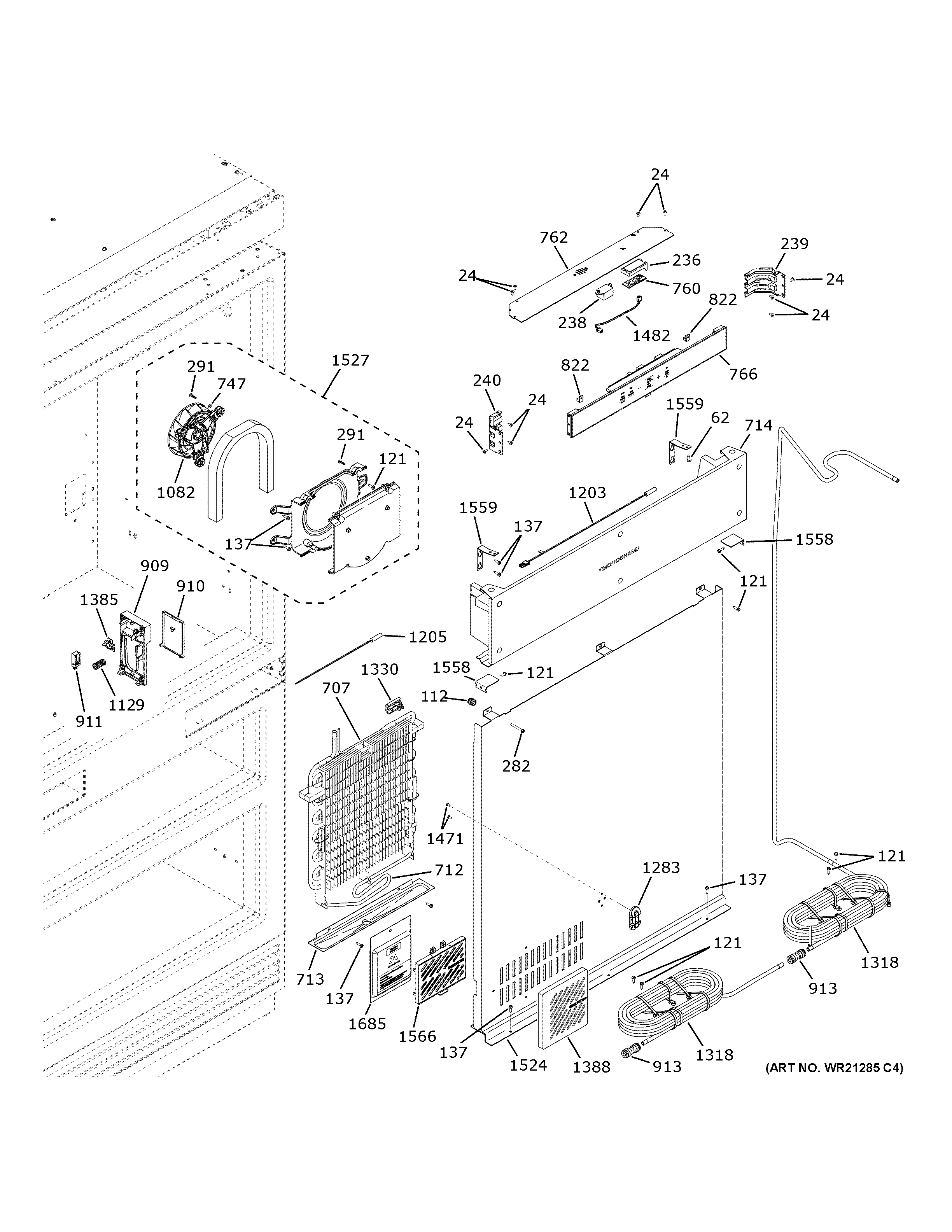

ZIP364IPVBII REFRIGERATOR SECTION

ZIP364IPVBII REFRIGERATOR SECTION

Written by

in

ZIP364IPVBII REFRIGERATOR SECTION

Products

PositionProduct
24WB1X5364 GE Oven Mounting Screw
62WR1X5645 GE Refrigerator Screw
112WR02X10678 GE Refrigerator Grommet
121WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
137SCR 8-32 TTGX IHXW 5/8 S
236WB02X20265 GE Transceiver Housing
238WR55X11139 GE Refrigerator Speaker
239USER INTERFACE RIGHT BRACKET
240USER INTERFACE LEFT BRACKET
282SCREW 8-19 HI/LO PNP SS
291HI-LO SCREW W/#6 HD
707EVAPORATOR WITH BRACKETS
712WR51X31996 GE Refrigerator Defrost Heater
713REFRIGERATOR DRAIN PAN FF
714TOP AIRFLOW COVER – MONOGRAM
747FLAT WASHER
760WIFI BOARD
762USER INTERFACE TOP COVER 36"
766GLASS TOUCH TEMPERATURE CONTROL BOARD
822WR55X32501 GE Refrigerator Freezer Reed Switch White CO
909INTERNAL DISPENSE COVER WITH PADDLE
910INTERNAL DISPENSE PADDLE COVER
911INTERNAL DISPENSE MICROSWITCH
913WR02X30250 GE Water Line Connector 5/16"
1082FAN MOTOR-BLADE ASSEMBLY
1129WR01X11027 GE Refrigerator Spring
1203THERMISTOR
1205WR55X10025 GE Refrigerator Temperature Sensor
1283CENTER SUPPORT LOCATOR
1318WATER TUBE COILED – RIGHT
1330THERMISTOR CLIP
1385DISPENSER TUBE CLIP
1388ODOR COVER FILTER
1471SCR 6-19 TT PNT15 1/4 S
1482HMI JUMPER
1524REFRIGERATOR EVAPORATOR COVER WITH AIR F
1527FAN HOUSING
1558AIR HANDLER SIDE MOUNTING BRACKET
1559AIR HANDLER MOUNTING BRACKET
1566FRESH FILTER CARTRIDGE ASSEMBLY
1685ODOR FILTER ASSEMBLY PACK
