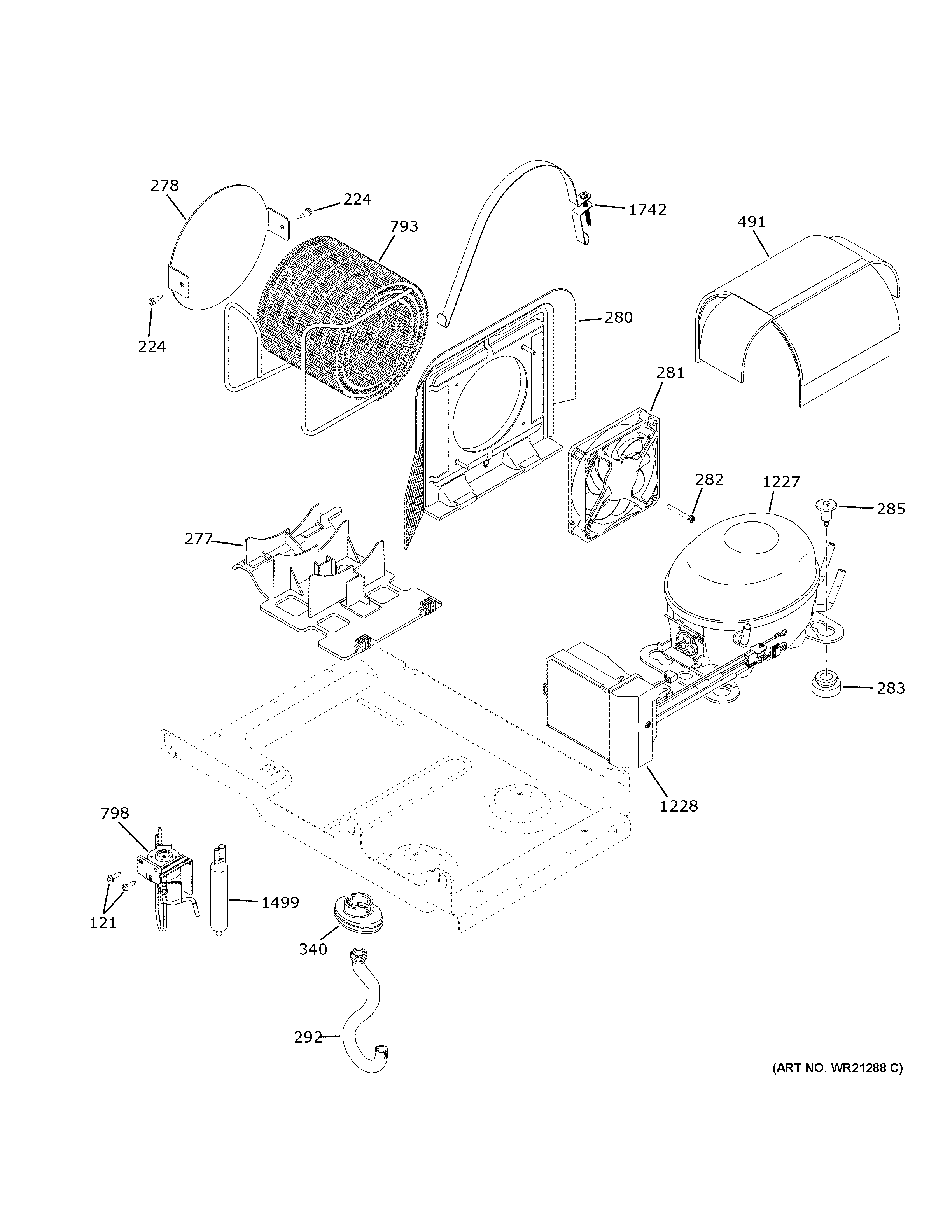

ZIP364NBVBII MACHINE COMPARTMENT

ZIP364NBVBII MACHINE COMPARTMENT

Written by

in

ZIP364NBVBII MACHINE COMPARTMENT

Products

PositionProduct
121WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
224WR01X10635 GE Scr 8-32 Ca IHVW .625 S
277CONDENSER SUPPORT
278CONDENSER BAFFLE
280CONDENSER FAN HOUSING
281CONDENSER FAN
282SCREW 8-19 HI/LO PNP SS
283COMPRESSOR GROMMET
285COMPRESSOR MOUNTING BOLT
292DRAIN TUBE
340DEFROST DRAIN VACUUM BREAK VALVE
491WR02X13428 GE Refrigerator Compressor Dampener
793CONDENSER
7983 WAY VALVE W/ BRACKET
1227COMPRESSOR SERVICE KIT – JIAXIPERA
1228INVERTER
1499WR86X25269 GE Refrigerator R134 Dryer
1742CONDENSER STRAP
