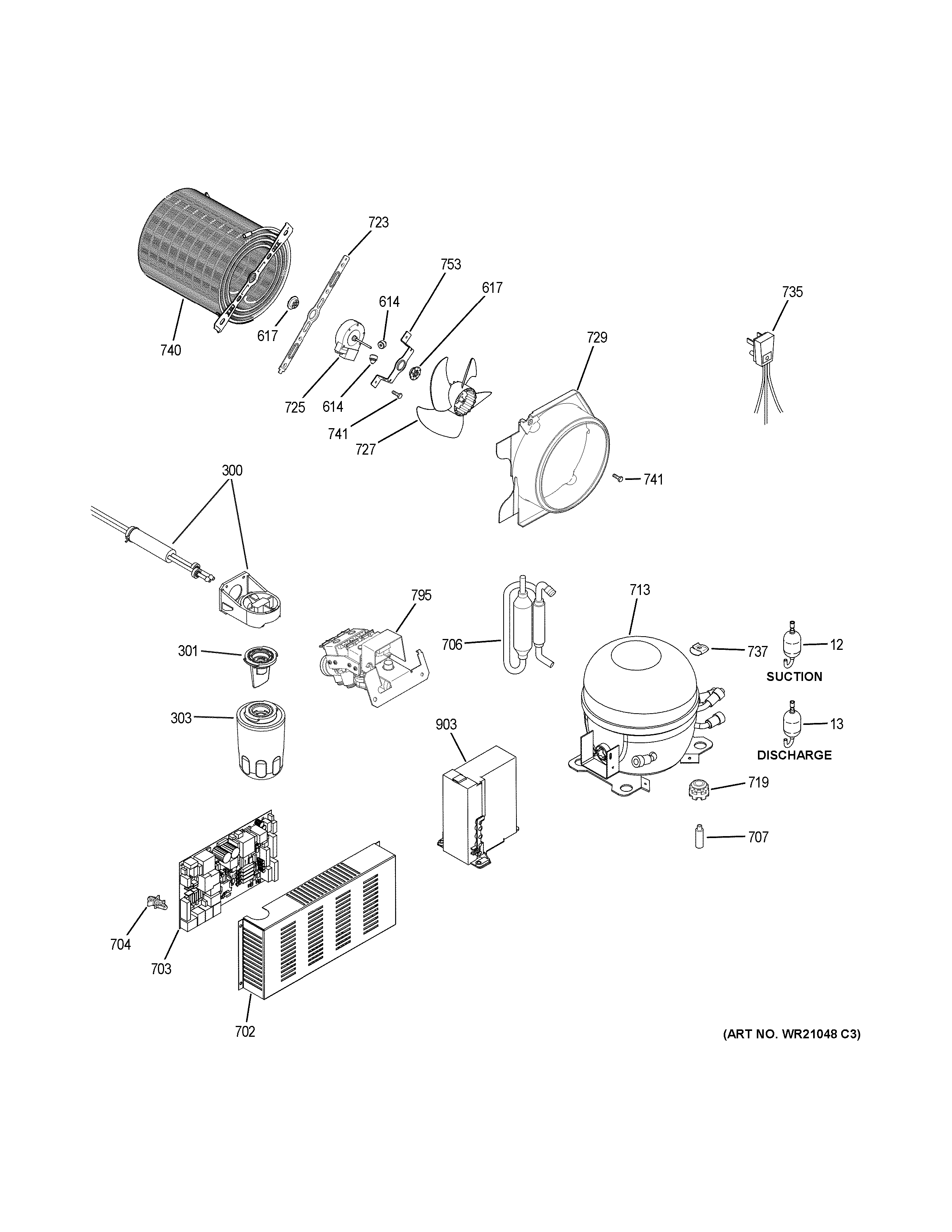

ZIPS360NNDSS MACHINE COMPARTMENT

ZIPS360NNDSS MACHINE COMPARTMENT

Written by

in

ZIPS360NNDSS MACHINE COMPARTMENT

Products

PositionProduct
12MUFFLER SUCTION
13WR87X25049 GE Muffler Discharge
300MWF MANIFOLD
301WR17X22070 GE Water Filter Bypass Plug
303MWFP GE Replacement Water Filter Pureline for Refrigerator
614BUMPER
617WR02X10520 GE Refrigerator Fan Motor Grommet
702MAIN CONTROL BOARD COVER
703WR55X42925 GE Mainboard Assembly
704WR02X29169 GE Main Board Standoff
706WR86X25269 GE Refrigerator R134 Dryer
707WR1X1779 GE Refrigerator Stud Mounting Compressor
713WR87X24135 GE Refrigerator Compressor Service Kit CU1
719WR02X22869 GE Refrigerator Grommet
723WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR60X10209 GE Refrigerator DC Condenser Fan Motor
727WR60X24484 GE Refrigerator Condenser Fan Blade
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735WR55X29405 GE Refrigerator Power Cord
737GEN WR02X8203
740WR84X10022 GE Refrigerator Condenser Replacement Kit
741WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
795BRACKET AND VALVE ASM
903WR87X29409 GE Refrigerator Inverter Compressor Control Board
