ZIPS360NNGSS CONTROLS & COMPONENTS

ZIPS360NNGSS CONTROLS & COMPONENTS

Written by

in

ZIPS360NNGSS CONTROLS & COMPONENTS

Products

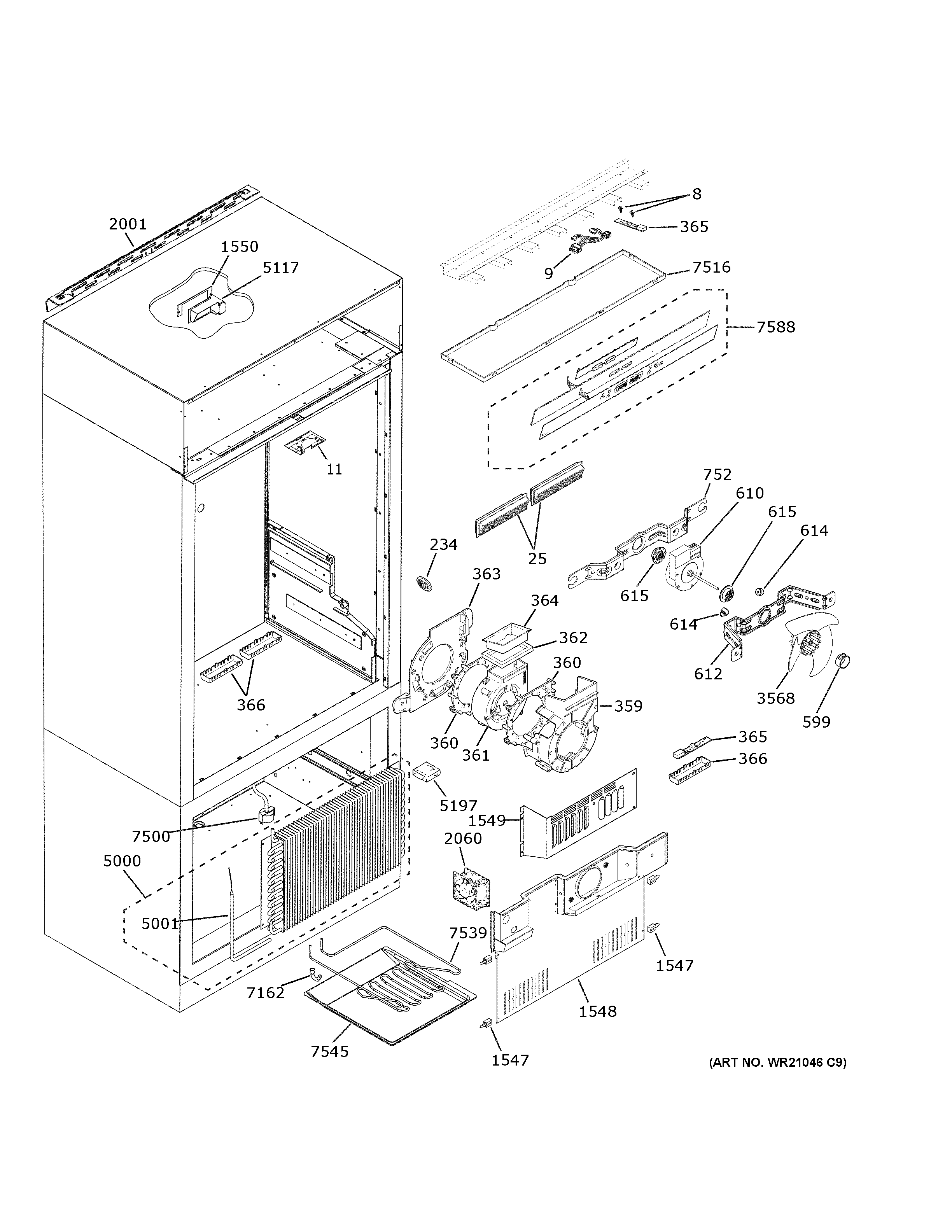

PositionProduct
8WR02X23950 GE LED Board Standoff
9HARNESS LED BM FD
11STRIKER TOP MULLION
25GRILL VENT
234WR02X10647 GE Refrigerator Grille Sensor
359WR17X12998 GE Rear Blower Bracket
360WR17X12999 GE Refrigerator Blower Damper
361WR60X10330 GE Refrigerator Duct Blower Fan
362WR14X26551 GE Fan Bracket Gasket
363WR17X13001 GE Blower Front Bracket
364WR14X26550 GE Fan Boot
365WR55X11088 GE Refrigerator LED Board Light Assembly
366WR02X23939 GE Refrigerator LED Cover Lens
599WR02X12149 GE Refrigerator Ring
610WR60X10185 GE Refrigerator Evaporator Fan Motor
612WR17X12269 GE Refrigerator Evaporator Fan Front Bracket
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
752WR17X12270 GE Rear Evaporator Fan Bracket
1547WR02X37905 GE Twist Support
1548EVAP COVER ASM
1549FZ FAN COVER ASM FD
1550WR17X11009 GE Refrigerator Bracket Damper Mounting
2001WR02X42385 GE Wall Mounting Bracket
2060WR60X23405 GE Refrigerator Drain Fan Assembly
3568EVAPORATOR FAN BLADE
5000WR87X23941 GE Refrigerator Evaporator BM Defrost AS
5001WR51X23942 GE Refrigerator Defrost Heater
5117DAMPER ASM
5197WR02X10145 GE Refrigerator Left Hand Evaporator Baffle
7162WR17X10675 GE Refrigerator Drain Trap AUX Condenser
7500THERMOSTAT DEF
7516SHIELD LIGHT SNAP IN
7539WR84X23938 GE Condenser Bottom Frame
7545WR17X11016 GE Refrigerator Drain Pan
7588WR55X32596 GE Temperature Control Board
