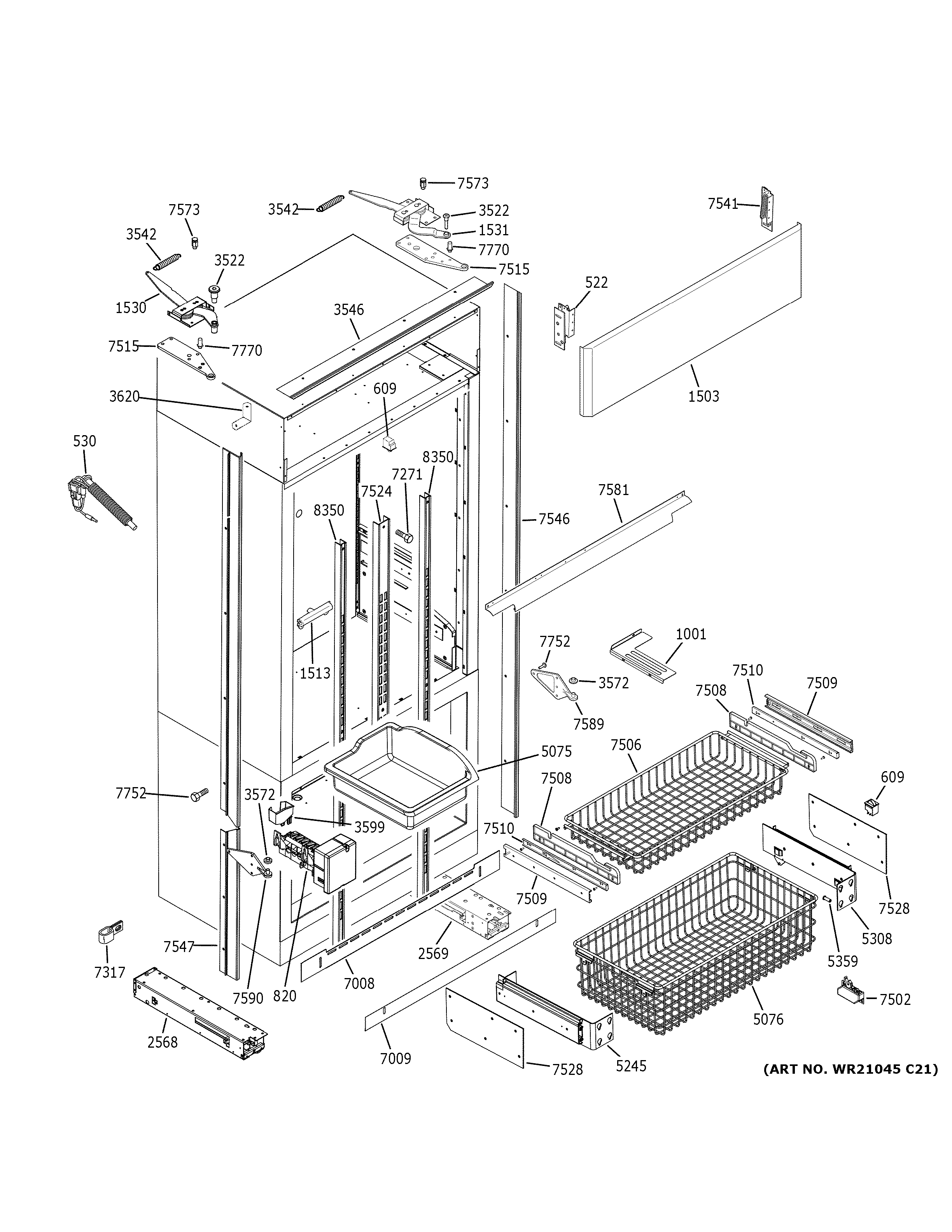

ZIPS360NPBSS FREEZER SECTION, TRIM & COMPONENTS

ZIPS360NPBSS FREEZER SECTION, TRIM & COMPONENTS

Written by

in

ZIPS360NPBSS FREEZER SECTION, TRIM & COMPONENTS

Products

PositionProduct
522WR13X10411 GE Grill Right Hinge
530WR09X30091 GE Refrigerator Ice Maker Fill Tube and Heater
609WR23X37285 GE Light Switch
820WR30X10093 GE Refrigerator Ice Maker
1001ICE SHIELD
1503WR74X32724 GE Grill Stainless
1513WR02X10942 GE Refrigerator Thermistor Holder
1530WR02X10979 GE Refrigerator Link Actuator Left Hand
1531WR02X10948 GE Refrigerator Door Actuator Arm
2568LH BASE CHANNEL
2569RH BASE CHANNEL
3522WR01X10752 GE Refrigerator Shoulder Bolt
3542WR02X12948 SPRING CLOSURE
3546WR17X32357 GE Refrigerator Top Case Trim
3572WR02X10953 GE Refrigerator Bushing Hinge Bottom
3599WR29X20863 GE Refrigerator Cup Fill Assembly
3620CORNER KEY ASM CAFE PROF
5075WR29X23876 GE Refrigerator Ice Bucket
5076WR32X29400 GE Freezer Basket Large
5245WR72X23882 GE Refrigerator Left Hand Slide Drawer Assembly
5308WR72X10396 GE Refrigerator Drawer Slide Assembly
5359WR01X10049 GE Refrigerator Screw TRUSS HD 1/4-20 X
7008WR74X32594 GE Refrigerator Toekick
7009WR74X32595 GE Refrigerator Toekick Skirt
7271WR01X10051 GE 10-24 x 1" Phillips Head Tap
7317WR17X3046 GE Clamp 1/4"
7502WR02X13480 GE Refrigerator Closure Assembly
7506SMALL FREEZER BASKET
7508WR72X10080 GE Refrigerator Support Assembly
7509WR72X10081 GE Refrigerator Upper Slide Liner
7510WR72X10082 GE Refrigerator Slide Basket
7515WR13X23350 GE Refrigerator Upper Hinge Case
7524WR72X23860 GE Refrigerator Center Track Shelf Assembly
7528WR72X10085 GE Refrigerator Freezer Slide Shim
7541WR13X10410 GE Refrigerator Grille Hinge Left Hand
7546REFRIGERATOR CASE RIGHT SIDE TRIM
7547WR17X32374 GE Refrigerator Left Side Case
7573WR01X10258 GE Spring Stud
7581EYEBROW FD FI
7589WR13X23937 GE Refrigerator Right Hand Bottom Case Hinge Assembly
7590WR13X23349 GE Refrigerator Hinge Assembly Case Bottom Left Hand
7752WR1X2138 GE Refrigerator Screw
7770WR02X11209 GE Refrigerator Shear Pin
8350TRACK SHELF FF ASM
