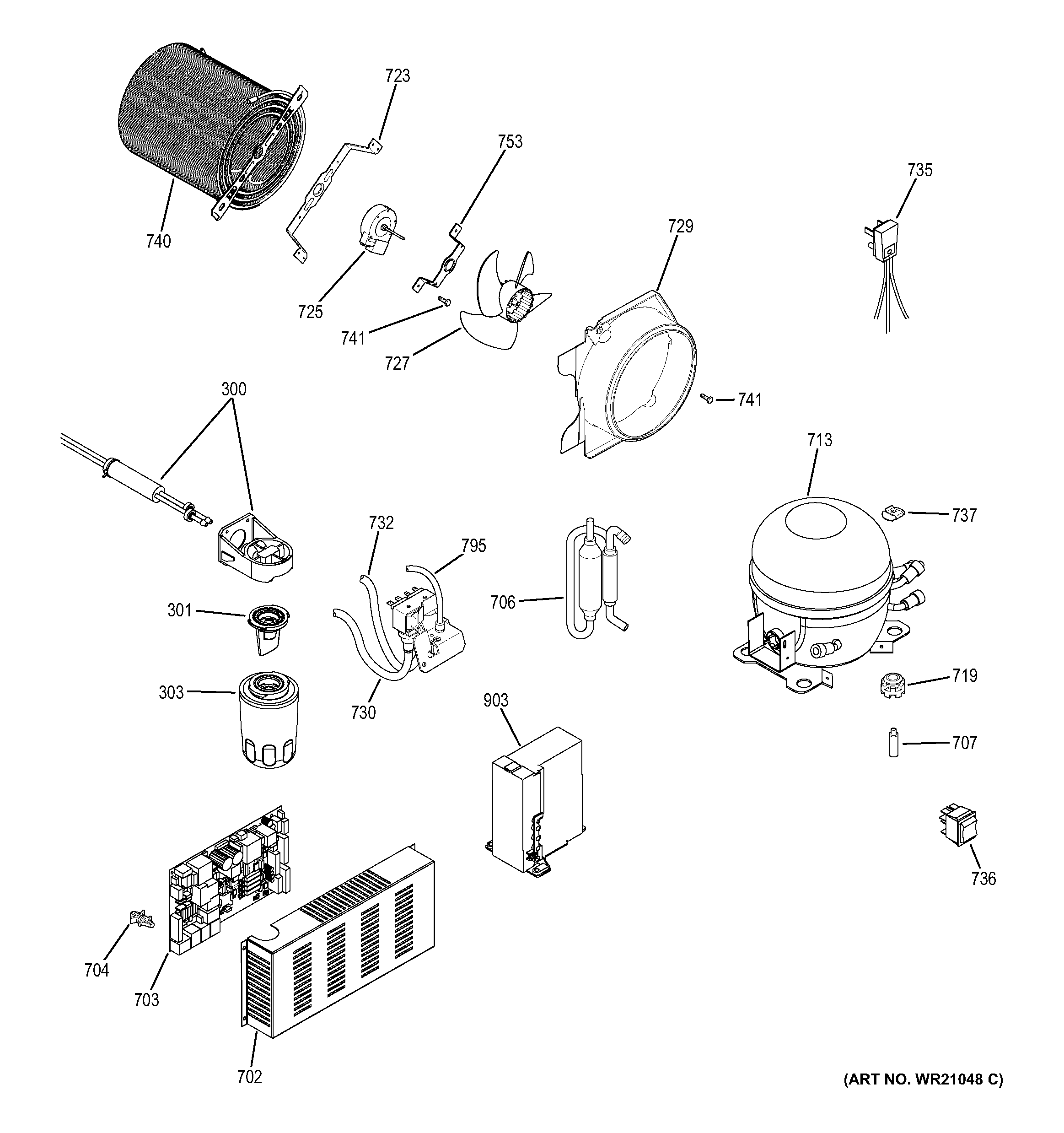

ZIPS360NZA MACHINE COMPARTMENT

Products

PositionProduct
300MWF MANIFOLD
301WR17X22070 GE Water Filter Bypass Plug
303MWFP GE Replacement Water Filter Pureline for Refrigerator
702WR02X12570 GE Motherboard Cover
703GEN WR55X20944
704WR01X10301 GE Refrigerator Main Board Standoff
706WR86X25269 GE Refrigerator R134 Dryer
707WR1X1779 GE Refrigerator Stud Mounting Compressor
713WR87X20937 GE Refrigerator Variable Speed Compressor Kit
719WR02X22869 GE Refrigerator Grommet
723WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR60X10209 GE Refrigerator DC Condenser Fan Motor
727WR60X24484 GE Refrigerator Condenser Fan Blade
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735WR23X10300 GE Refrigerator Power Cord Assembly
736WR49X10070 GE Refrigerator Master Light SW. Kit
737GEN WR02X8203
740WR84X10022 GE Refrigerator Condenser Replacement Kit
741WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
795BRACKET AND VALVE ASM
903WR55X23123 GE Refrigerator Inverter
