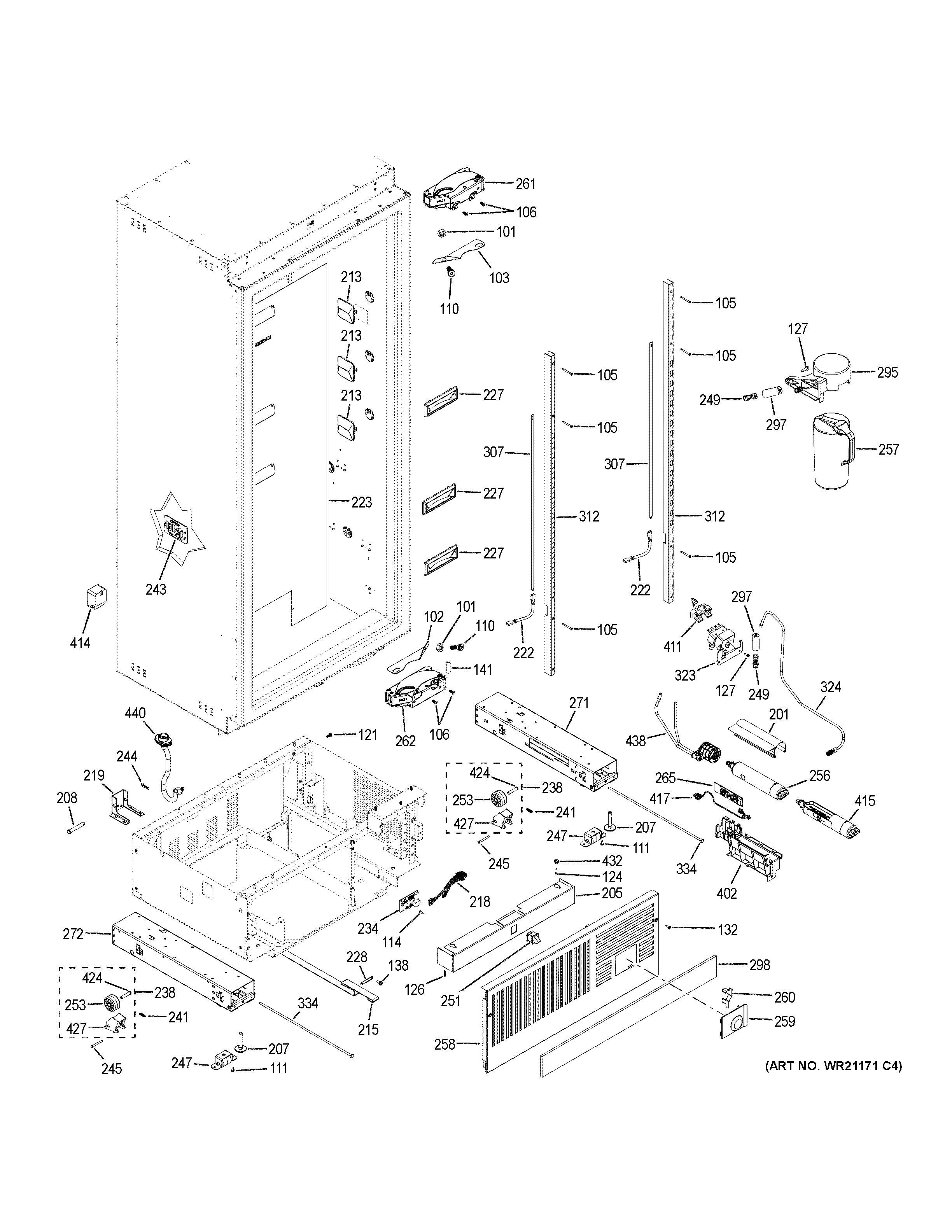

ZIR240NPKAII CASE PARTS

ZIR240NPKAII CASE PARTS

Written by

in

ZIR240NPKAII CASE PARTS

Products

PositionProduct
101NUT 5/16-18 THD
102WR02X29086 GE Slide Bracket Left
103WR02X29085 GE Left Hinge Door Support
105SCREW 10-24 TT FLT 1.60 S
106WR02X29021 GE Refrigerator Bolt M6 T30
110SHOULDER BOLT 3/8X1/4 (5/16-18 THD)
111WR1X5645 GE Refrigerator Screw
114WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
121WS02X10087 GE Screws 10-32 GX HXW 7/16 S
124WR01X10050 GE Refrigerator Screw #8 18 x 3/4
126WD02X10115 GE Screw 6-19 Flp 3/4 S
127WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
132WB01X22380 GE Screw (White)
138ANTI TIP TENSION BOLT
141WR02X30724 GE Refrigerator Hinge Limit Pin
201WATER FILTER COVER
205LIGHT SWITCH HOUSING 24"
207WR02X29053 GE Leg Leveling
208CLEVIS PIN
213WR55X29609 GE Refrigerator LED Cabinet
215ANTI TIP STRAP
218HUMIDITY SENSOR HARNESS
219WR02X30158 GE Refrigerator Anti-Tip Bracket
222BUS BAR JUMPER HARNESS
223REFRIGERATOR LINER BACK COVER 24"
227AIR VENT (AL ACCENT)
228ANTI TIP CLINCH PLATE
234WR55X34647 GE Refrigerator Humidity Board
238WR2X8377 GE Refrigerator Wheel Assembly
241WR02X11233 GE Wheel Spring
243WR02X12839 GE Refrigerator Grille Sensor
244HAIRPIN COTTER
245WR01X10809 GE Key Pivot
247WR02X13042 GE Front Wheel Assembly
249WR02X13738 GE Refrigerator Coupler Straight 1/4
251REFRIGERATOR DOOR LIGHT SWITCH
253WR02X10480 GE Refrigerator Mobility Wheel
256RPWFE GE Refrigerator Water Filter
257WR01X29098 GE Refrigerator Autofill Pitcher
258WR13X29100 GE Refrigerator Front Access Cover 24"
259WR02X29105 GE Door Filter
260WR01X29106 GE Refrigerator Water Filter Removal Tool
261RIGHT ARTICULATING HINGE
262LEFT ARTICULATING HINGE
265RFID WATER FILTER BOARD
271WR13X29122 GE Right Base Channel
272WR13X29123 GE Left Base Channel
295WR02X29107 GE Refrigerator Autofill Housing and Control
297WR02X29306 GE Water Guard Connector
298WR74X31254 GE Refrigerator 24 Stainless Steel Toekick
307LIGHTING BUS BAR
312GEN WR72X29063
323WR57X29339 GE Refrigerator Water Valve
324WR02X32825 GE Refrigerator Water Line
334REAR LEVELING SCREW
402WR02X29031 GE Refrigerator Water Filter Housing
411GEN WR55X29075
414CAP & SUCTION TUBE LOCATOR BLOCK
415WR01X29059 GE Water Filter Bypass Plug Replacement
417WR55X29010 GE RFID Harness
424WR02X43425 GE Wheel Axle
427HOUSING WHEEL
432WR02X10678 GE Refrigerator Grommet
438GEN WR02X29138
440WR01X29135 GE Refrigerator Drain Vacuum BR
