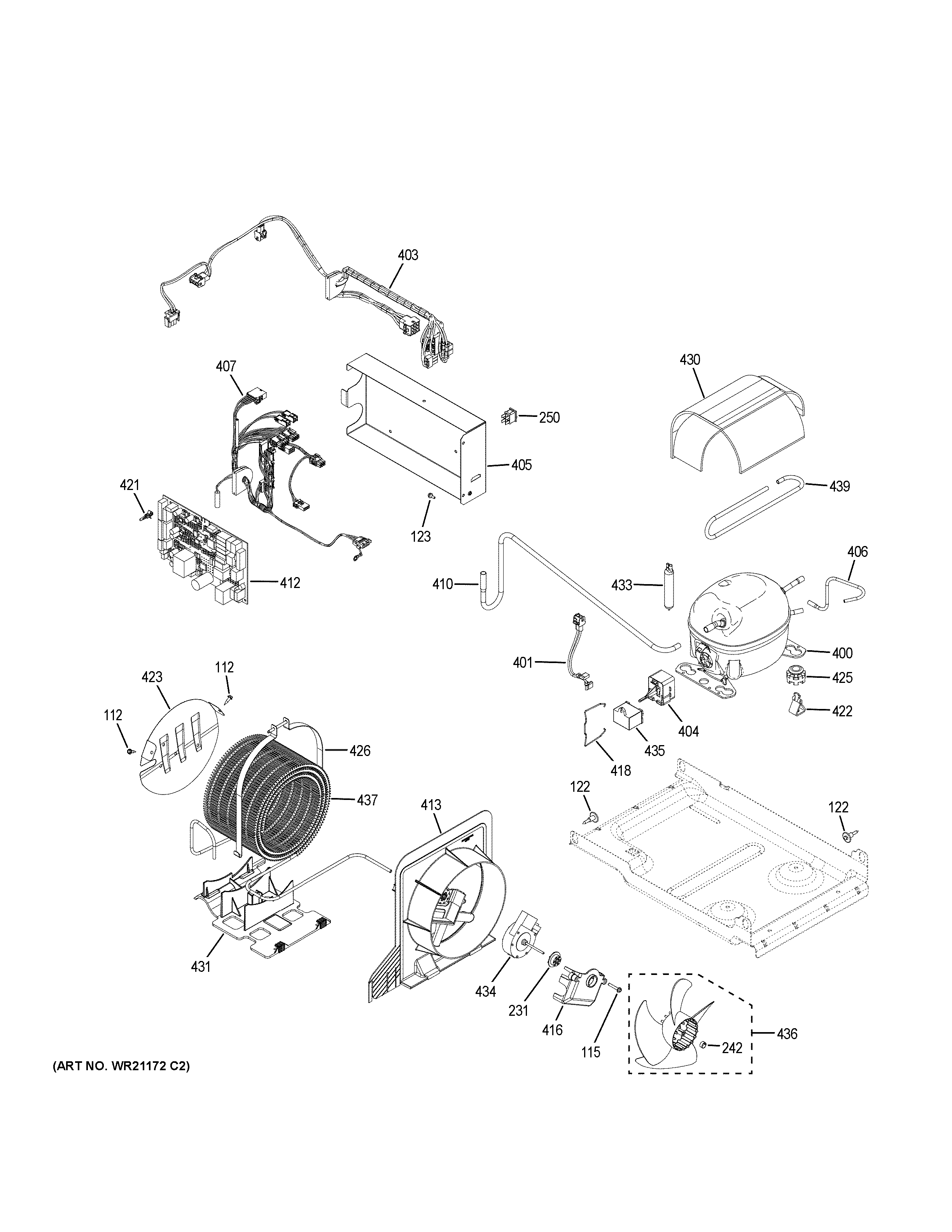

ZIR240NPKAII MACHINE COMPARTMENT

ZIR240NPKAII MACHINE COMPARTMENT

Written by

in

ZIR240NPKAII MACHINE COMPARTMENT

Products

PositionProduct
112WR01X10635 GE Scr 8-32 Ca IHVW .625 S
115WB1K5156 GE Oven Screw
122WR01X10685 GE Scraper 8-18 Assembly
123WZ5X158D GE Screw Package of 12
231WR02X10520 GE Refrigerator Fan Motor Grommet
242WR02X12149 GE Refrigerator Ring
250WR49X10070 GE Refrigerator Master Light SW. Kit
400WR87X29158 GE Compressor EM20HSC
401COMPRESSOR JUMPER HARNESS
403MAIN AC HARNESS
404WR55X29062 GE Overload PTCR Combo
405MAINBOARD COVER
406COMPRESSOR DISCHARGE JUMPER TUBE
407MAIN DC HARNESS
410COMPRESSOR SUCTION TUBE
412WR55X42925 GE Mainboard Assembly
413CONDENSOR FAN HOUSING
416CONDENSOR FAN BRACKET
418WR02X26153 GE Refrigerator Clip Retainer
421WR02X29169 GE Main Board Standoff
422WR1X1779 GE Refrigerator Stud Mounting Compressor
423BAFFLE CONDENSER
425WR02X22869 GE Refrigerator Grommet
426WR01X27406 GE Condenser Strap Assembly
430WR02X30653 GE Refrigerator Compressor Mastic
431WR02X21166 GE Refrigerator Condenser Support
433WR86X25269 GE Refrigerator R134 Dryer
434WR60X10209 GE Refrigerator DC Condenser Fan Motor
435WR55X24064 GE Refrigerator Run Capacitor
436WR60X24484 GE Refrigerator Condenser Fan Blade
437CONDENSER
439PROCESS TUBE
