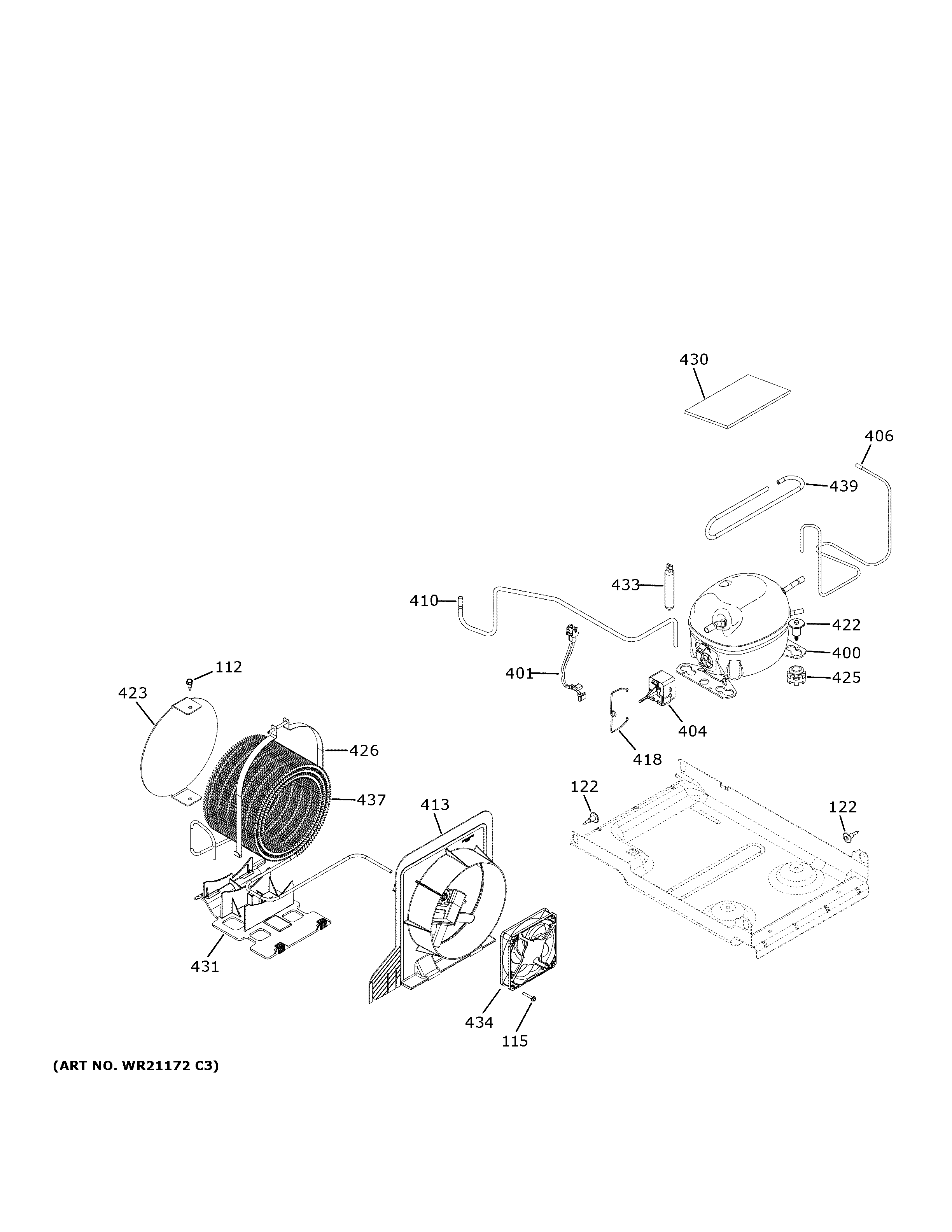

ZIR241NPNCII MACHINE COMPARTMENT

Products

Position	Product
112	WR01X10635 GE Scr 8-32 Ca IHVW .625 S
115	SCREW 8-19 HI/LO PNP SS
122	WR01X10685 GE Scraper 8-18 Assembly
400	WR87X33706 GE Compressor
401	COMPRESSOR JUMPER HARNESS
404	OL PTCR COMBO
406	REFRIGERATOR DISCHARGE JUMPER
410	REFRIGERATOR SUCTION TUBE
413	CONDENSER FAN HOUSING
418	RETAINER CLIP
422	COMPRESSOR MOUNTING BOLT
423	CONDENSER BAFFLE
425	COMPRESSOR GROMMET
426	CONDENSER STRAP
430	WR02X13428 GE Refrigerator Compressor Dampener
431	CONDENSER SUPPORT
433	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
434	CONDENSER FAN
437	CONDENSER
439	REFRIGERATOR PROCESS TUBE
