ZIR241NPPBII MACHINE COMPARTMENT

ZIR241NPPBII MACHINE COMPARTMENT

Written by

in

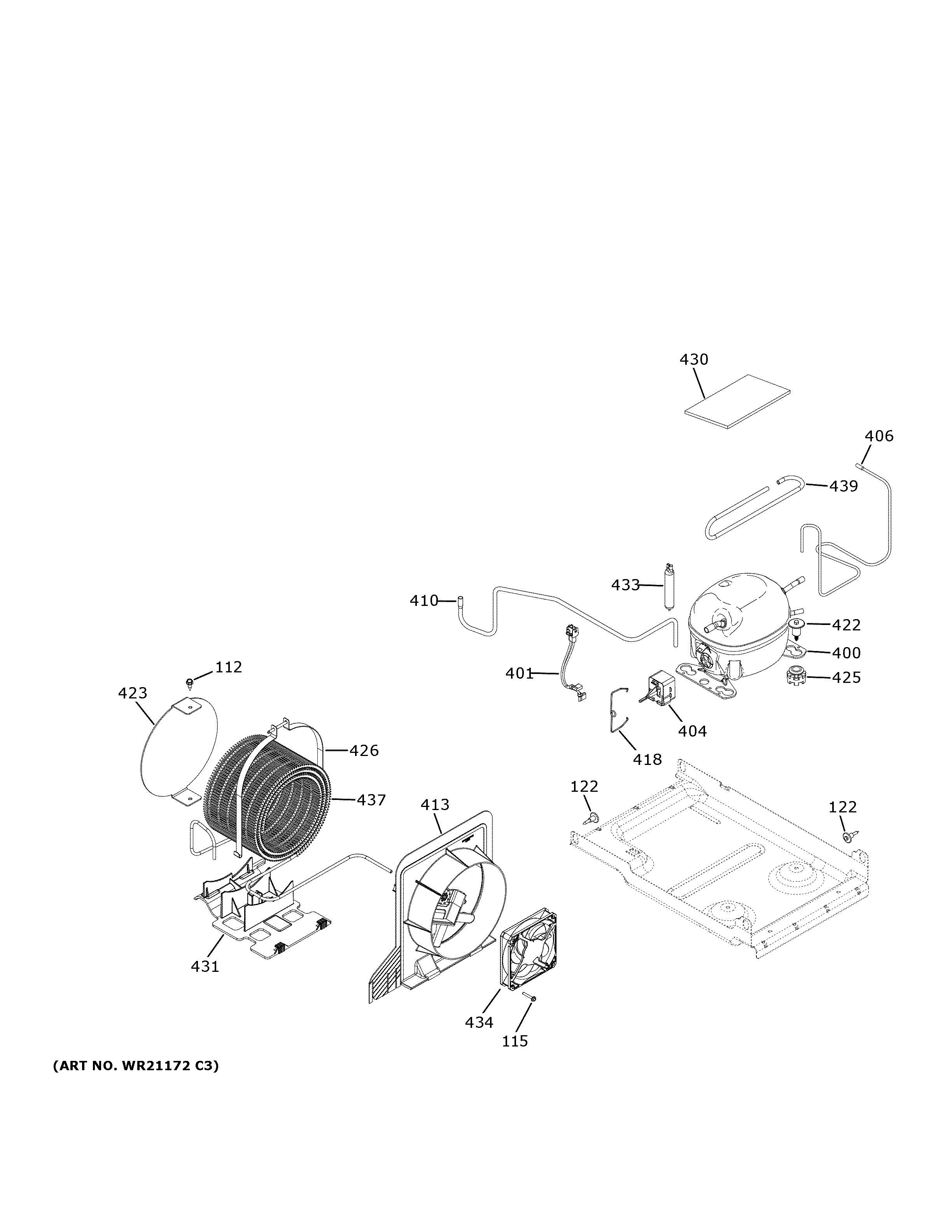

ZIR241NPPBII MACHINE COMPARTMENT

Products

PositionProduct
112WR01X10635 GE Scr 8-32 Ca IHVW .625 S
115SCREW 8-19 HI/LO PNP SS
122WR01X10685 GE Scraper 8-18 Assembly
400WR87X33706 GE Compressor
401COMPRESSOR JUMPER HARNESS
404OL PTCR COMBO
406REFRIGERATOR DISCHARGE JUMPER
410REFRIGERATOR SUCTION TUBE
413CONDENSER FAN HOUSING
418RETAINER CLIP
422COMPRESSOR MOUNTING BOLT
423CONDENSER BAFFLE
425COMPRESSOR GROMMET
426CONDENSER STRAP
430WR02X13428 GE Refrigerator Compressor Dampener
431CONDENSER SUPPORT
433WR87X30875 GE Refrigerator R600 Dryer with Red Cap
434CONDENSER FAN
437CONDENSER
439REFRIGERATOR PROCESS TUBE
