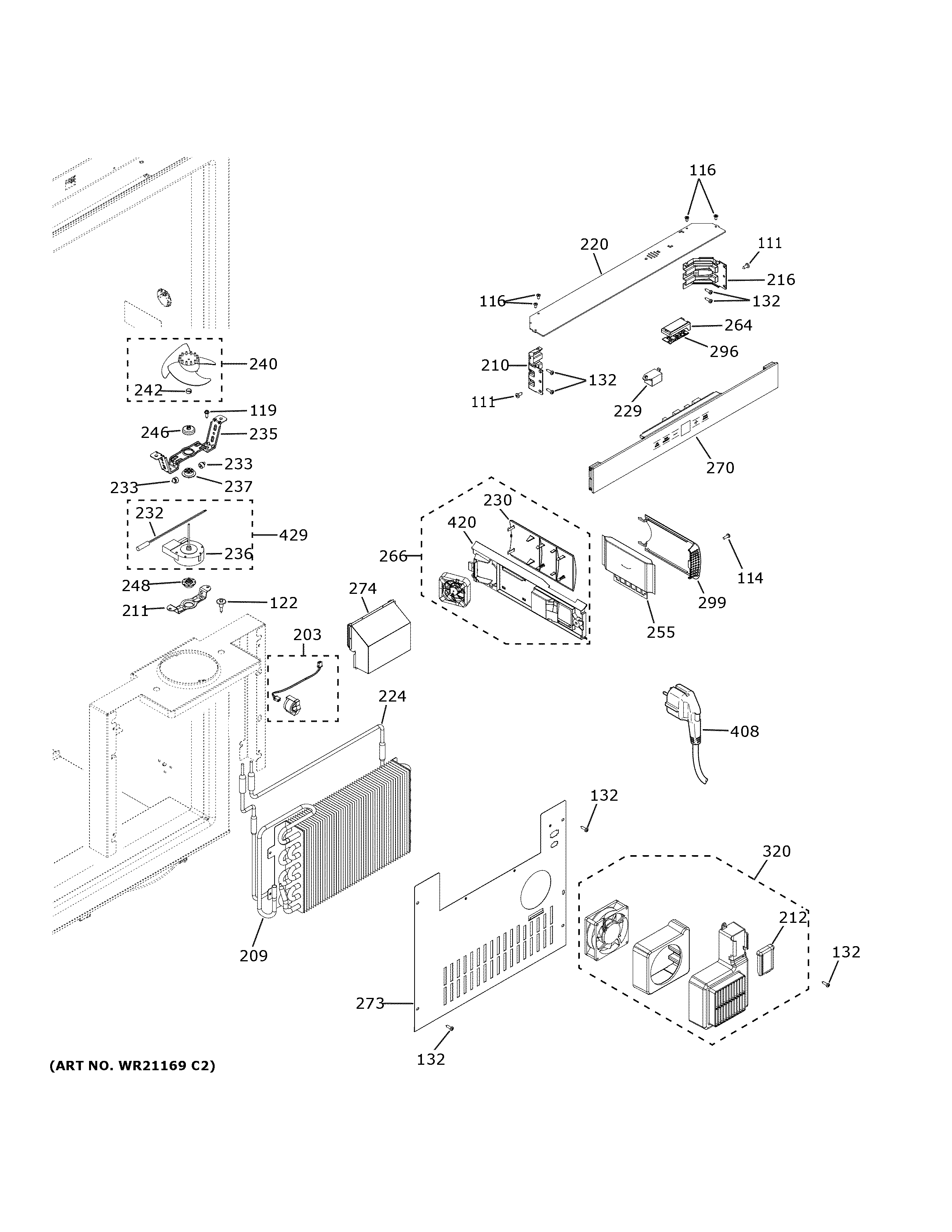

ZIR301NPNAII FRESH FOOD SECTION

ZIR301NPNAII FRESH FOOD SECTION

Written by

in

ZIR301NPNAII FRESH FOOD SECTION

Products

PositionProduct
111WR1X5645 GE Refrigerator Screw
114WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
116WB1X5364 GE Oven Mounting Screw
119WR01X10620 GE Refrigerator Screw 10-32
122WR01X10685 GE Scraper 8-18 Assembly
132WB01X22380 GE Screw (White)
203DEFROST JUMPER HARNESS
209EVAPORATOR 24 / 30"
210USER INTERFACE LEFT BRACKET
211EVAPORATOR FAN BRACKET
212TEMPERATURE CONTROL FAN CONNECTOR COVER
216USER INTERFACE RIGHT BRACKET
220USER INTERFACE TOP COVER 30"
224DEFROST HEATER 24" / 30"
229WR55X11139 GE Refrigerator Speaker
230WR02X13745 GE Fan Filter Cover
232SENSOR TEMPERATURE
233BUMPER
235WR17X12269 GE Refrigerator Evaporator Fan Front Bracket
236WR60X10185 GE Refrigerator Evaporator Fan Motor
237WR02X12008 GE Refrigerator Evaporator Fan Grommet
240EVAPORATOR FAN BLADE
242WR02X12149 GE Refrigerator Ring
246WR02X10322 GE Refrigerator Dust Cap B02
248WR02X11331 GE Refrigerator Grommet
255ODORFILTER GE Refrigerator Odor Filter Cartridge 2-Pack
264WB02X20265 GE Transceiver Housing
266ODOR FILTER FAN AND HOUSING
270WR17X32789 GE Refrigerator User Interface
273REFRIGERATOR EVAPORATOR COVER 24 / 30"
274EVAPORATOR FAN COVER PREMIUM 24/30"
296WIFI BOARD
299WR02X29340 GE Air Filter Cover
320TEMPERATURE CONTROL FAN
408WR23X30808 GE Power Cord Extension
420WR02X13744 GE Refrigerator Filter Housing
429WR60X10284 GE Refrigerator Evaporator Fan DC Motor Assembly
