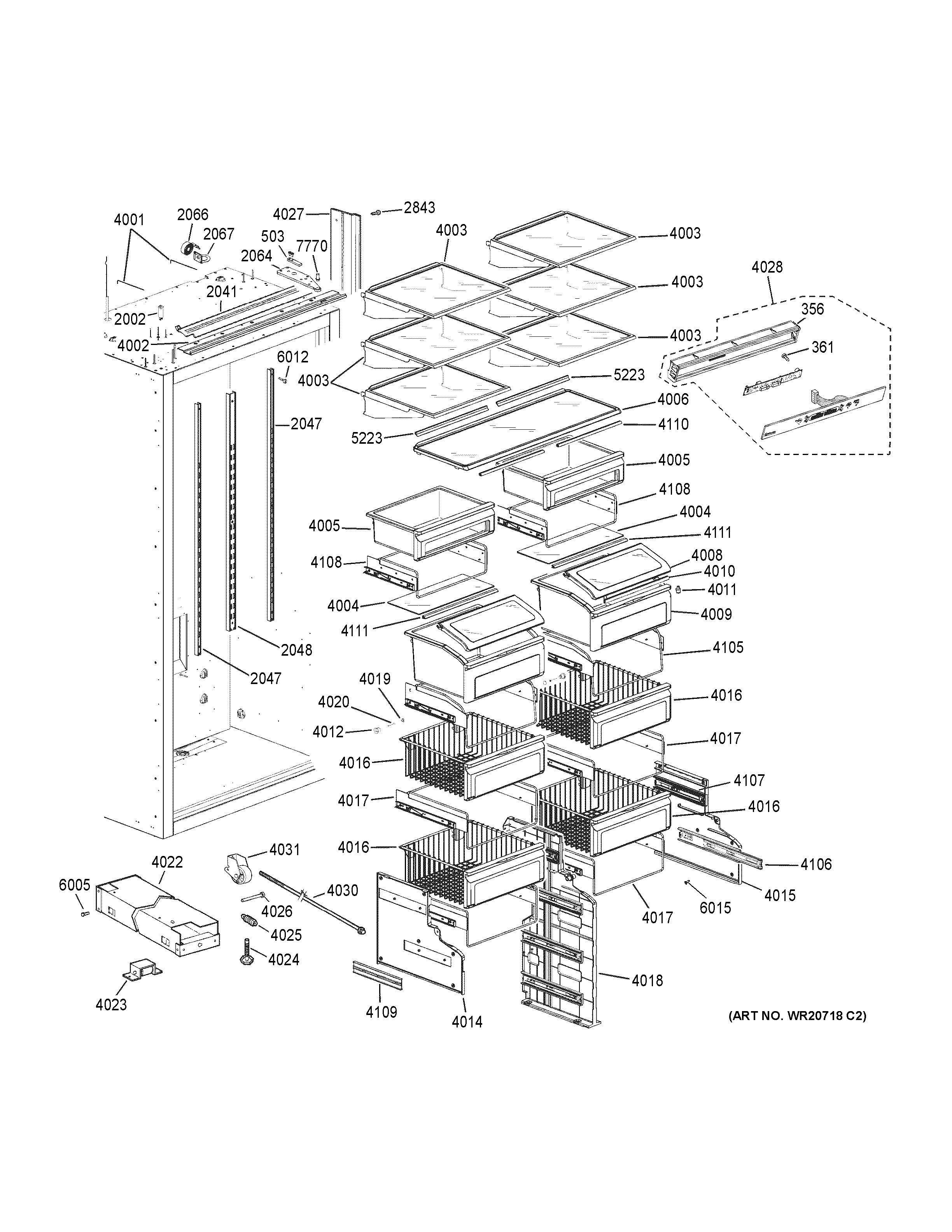

ZIR360NHCLH SHELVES & DRAWERS

ZIR360NHCLH SHELVES & DRAWERS

Written by

in

ZIR360NHCLH SHELVES & DRAWERS

Products

PositionProduct
356WR17X12676 GE Control Housing
3614-40 X 1/4 PH SMS
503WR02X13032 GE Refrigerator Spacer
2002WR23X10269 GE Refrigerator 2 AMP Fuse
2041EYEBROW LH FI
2047WR17X12680 GE Refrigerator Side Shelf Track
2048WR17X12681 GE Refrigerator Center Shelf Track
2064WR13X23350 GE Refrigerator Upper Hinge Case
2066WR62X10073 GE Refrigerator Transformer Light 160VA
2067WR01X10881 GE Light Breaker Bracket
2843WR01X10484 GE Refrigerator Stainless Steel TCS 8-32 x 5/8" PH
4001ROD
4002SWITCH PLATE LH
4003WR32X10074 GE Refrigerator Shelf Endcap
4004WR32X10727 GE Vegetable Pan Cover Assembly
4005WR32X10078 GE Refrigerator Snack Pan Assembly
4006WR32X10726 GE Shelf Assembly Snack Pan
4008WR32X10119 GE Refrigerator Vegetable Pan Showcase Lid
4009WR32X10725 GE Refrigerator Pan Assembly
4010WR14X10040 GE Refrigerator Seal Front Showcase Lid
4011WR01X10047 GE Refrigerator Button Glide
4012WR01X10048 GE Refrigerator SHO Bushing
4014SUPPORT SLIDE ASM LH
4015SUPPORT SIDE ASM RH
4016WR32X10121 GE Refrigerator Vegetable Basket Assembly
4017WR72X10200 GE Refrigerator Support Veg Basket Wire
4018WR72X10320 GE Refrigerator Divider Center Assembly
4019WR01X10046 GE Refrigerator Washer Showcase Pivot
4020WR01X10050 GE Refrigerator Screw #8 18 x 3/4
4022WR13X30113 GE Refrigerator Right HandBase Channel
4023WR02X13042 GE Front Wheel Assembly
4024LEVELING LEG
4025WR02X11233 GE Wheel Spring
4026WR02X43425 GE Wheel Axle
4027TRIM CASE SIDE RH
4028REFRIGERATOR HMI CONTROL
4030WR01X10256 GE Refrigerator Base Shaft
4031WR02X10480 GE Refrigerator Mobility Wheel
4105WR72X10324 GE Refrigerator Support Pan Assembly
4106WR72X10365 GE Refrigerator Outer Slide
4107WR72X10366 GE Refrigerator Outer Slide
4108WR72X10325 GE Refrigerator Support Snack Pan Assembly
4109SLIDE SUPPORT LOWER SD
4110WR14X10009 GE Refrigerator Seal Front Snack Pan
4111WR14X10012 GE Refrigerator Seal Front Vegetable Pan Glass
5223WR14X10011 GE Snack Pan Rear Seal
6005WD2X295 GE Refrigerator Screw
6012WR01X10051 GE 10-24 x 1" Phillips Head Tap
6015WR01X10449 GE Screw 6X1/2 Pan Head Phillips
7770WR02X11209 GE Refrigerator Shear Pin
