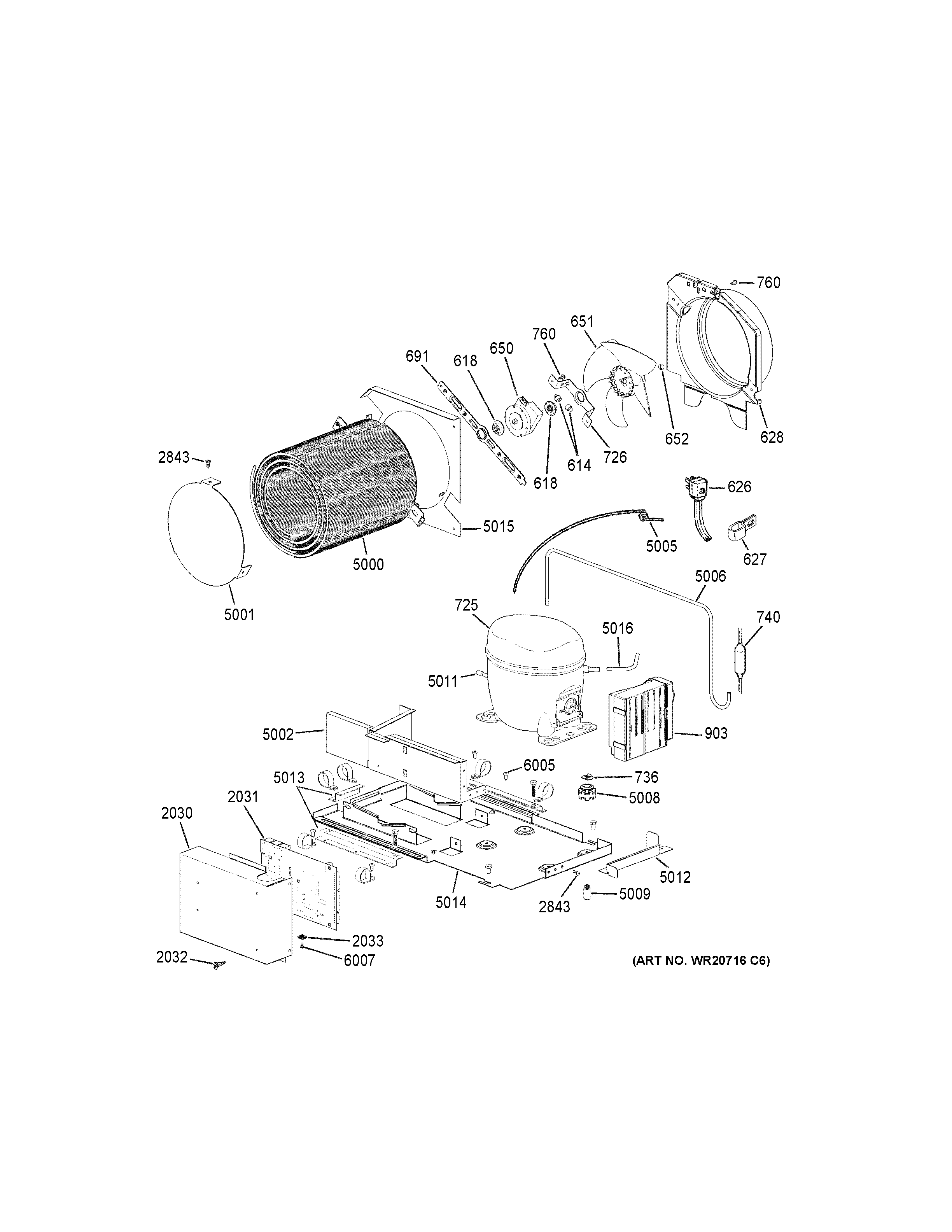

ZIR360NPBLH MACHINE COMPARTMENT

ZIR360NPBLH MACHINE COMPARTMENT

Written by

in

ZIR360NPBLH MACHINE COMPARTMENT

Products

PositionProduct
614BUMPER
618WR02X10520 GE Refrigerator Fan Motor Grommet
626WR55X29405 GE Refrigerator Power Cord
627WR1X5278 GE Refrigerator Cable Clamp
628WR17X35527 GE Refrigerator Condenser Fan Shroud
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X28786 GE Refrigerator Compressor Kit
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
736CLIP
740WR86X25269 GE Refrigerator R134 Dryer
760WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
903WR87X29409 GE Refrigerator Inverter Compressor Control Board
2030MAIN CONTROL BOARD COVER
2031WR55X42925 GE Mainboard Assembly
2032PCB STAND OFF
2033NUT-U
2843WR01X10484 GE Refrigerator Stainless Steel TCS 8-32 x 5/8" PH
5000WR84X10022 GE Refrigerator Condenser Replacement Kit
5001WR17X13159 GE Refrigerator Baffle Condenser Air
5002FOAM COND BAFFLE
5005WR02X13220 GE Refrigerator Tube Jump Suction Compressor Assembly
5006WR02X13222 GE Refrigerator Tube Jump Cap Dryer
5008WR02X10678 GE Refrigerator Grommet
5009WR1X1779 GE Refrigerator Stud Mounting Compressor
5011WR02X13215 GE Refrigerator Dryer Process Tube
5012KEEP OUT LT SW LH
5013WR02X11221 GE Refrigerator Retainer Pan System
5014SYSTEM PAN ASM
5015FAN ORIFICE COND
5016WR01X23817 GE Discharge Tube
6005WD2X295 GE Refrigerator Screw
6007WR1X1826 GE Refrigerator Screw
