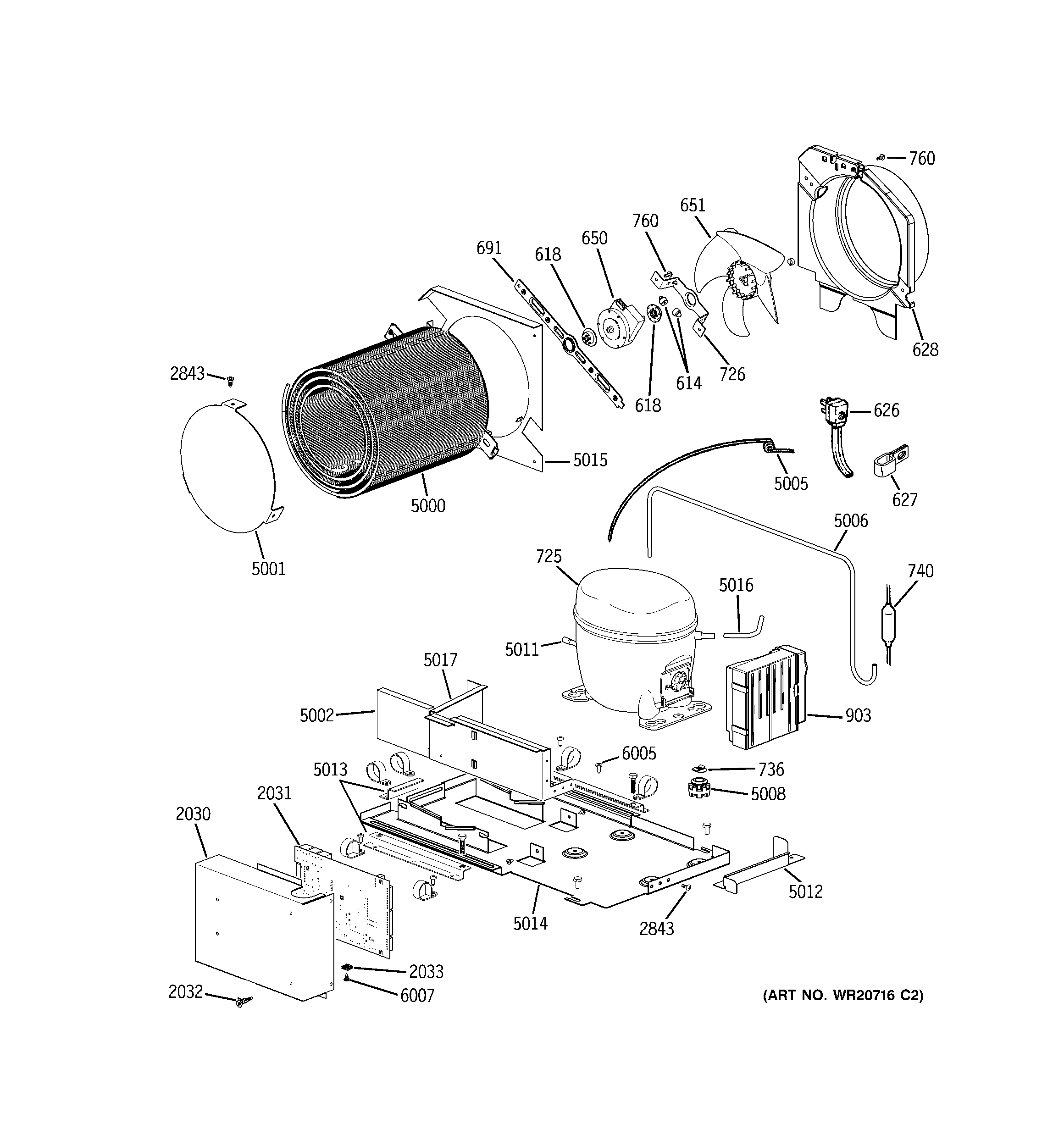

ZIR360NXALH UNIT PARTS

ZIR360NXALH UNIT PARTS

Written by

in

ZIR360NXALH UNIT PARTS

Products

PositionProduct
614BUMPER
618WR02X10520 GE Refrigerator Fan Motor Grommet
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR1X5278 GE Refrigerator Cable Clamp
628WR17X35527 GE Refrigerator Condenser Fan Shroud
650AC/DC COND FAN MOTOR
651WR60X24484 GE Refrigerator Condenser Fan Blade
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X10199 GE Refrigerator Compressor Kit Inverter
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
736GEN WR02X8203
740WR86X25269 GE Refrigerator R134 Dryer
760WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
2030COVER MOTHERBOARD
2031WR55X10922 GE Refrigerator Main Control Board Assembly
2032PCB STAND OFF
2033NUT-U
2843WR01X10484 GE Refrigerator Stainless Steel TCS 8-32 x 5/8" PH
5000WR84X10022 GE Refrigerator Condenser Replacement Kit
5001BAFFLE COND
5002GEN WR17X12691
5005WR02X13220 GE Refrigerator Tube Jump Suction Compressor Assembly
5006WR02X13222 GE Refrigerator Tube Jump Cap Dryer
5008WR02X10678 GE Refrigerator Grommet
5011WR02X13215 GE Refrigerator Dryer Process Tube
5012KEEP OUT LT SW LH
5013WR02X11221 GE Refrigerator Retainer Pan System
5014SYSTEM PAN ASM
5015FAN ORIFICE COND
5016WR01X10880 GE Refrigerator Discharge Tube
6005WD2X295 GE Refrigerator Screw
6007WR1X1826 GE Refrigerator Screw
