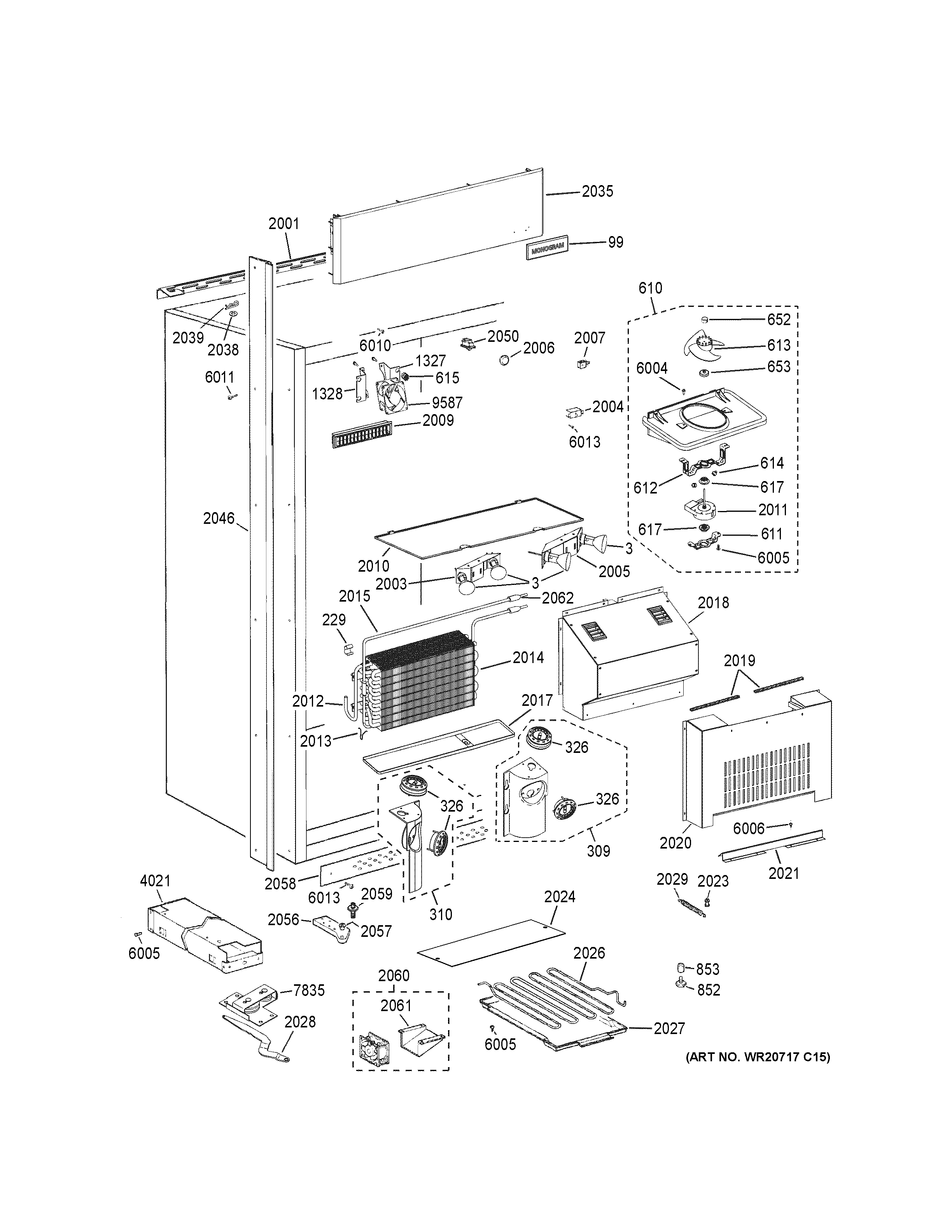

ZIRP360NHBLH CABINET

ZIRP360NHBLH CABINET

Written by

in

ZIRP360NHBLH CABINET

Products

PositionProduct
3WR02X32331 GE Refrigerator Halogen Light Bulb
99WB02X26123 GE Monogram Badge
229GEN WR02X10552
309WR17X12689 GE Refrigerator Right Hand Bottom Light Assembly
310WR17X12690 GE Left Hand Bottom Light Assembly
326WR02X11198 GE Refrigerator Halogen QC Lamp Assembly
610WR60X10283 GE Refrigerator Evaporator Fan & Orifice Assembly
611WR02X10764 GE Refrigerator Evaporator Bracket
612WR02X10653 GE Refrigerator Orifice Fan Bracket
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X11331 GE Refrigerator Grommet
617WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
852WR01X10752 GE Refrigerator Shoulder Bolt
853WR01X10879 GE Refrigerator Bushing Arm
1327WR02X13024 GE Top Fan Bracket
1328WR02X13011 GE Left Hand Top Fan Bracket
2001WR02X42385 GE Wall Mounting Bracket
2003WR74X10309 GE Refrigerator Left-Hand Top Light Assembly
2004WR49X10070 GE Refrigerator Master Light SW. Kit
2005WR74X10308 GE Top Light Assembly Right
2006GEN WR02X10154
2007WR02X37905 GE Twist Support
2009LOUVER SD
2010CEILING LIGHT SHIELD SD
2011WR60X10284 GE Refrigerator Evaporator Fan DC Motor Assembly
2012WR01X10884 GE Defrost Heater Clip
2013WR02X13221 GE Refrigerator Evaporator SUCT Tube Jump Assembly
2014EVAP COIL
2015WR51X10113 GE Refrigerator Defrost Heater
2017WR74X10355 GE Refrigerator Drain Pan Kit Assembly
2018EVAP FAN COVER FOAM ASM
2019WR38X10190 GE Refrigerator Edge Trim
2020EVAP COVER ASM
2021WR17X12711 GE Refrigerator Catch Evaporator Trough
2023WR01X10258 GE Spring Stud
2024WR02X13038 GE Pan Rear Cover Protector
2026WR84X10093 GE Refrigerator Bottom Condenser
2027WR17X11016 GE Refrigerator Drain Pan
2028WR02X10979 GE Refrigerator Link Actuator Left Hand
2029WR01X10255 GE Refrigerator Spring Fresh Food Door Closure
2035GRILL ASM PRO LH SD/BM
2038WR01X10906 GE Washer 3/8"
2039HAIRPIN COTTER
2046TRIM CASE SIDE LH
2050SWITCH LIGHT
2056WR13X10688 GE Lower Case Hinge Right and Left
2057WR02X10953 GE Refrigerator Bushing Hinge Bottom
2058TOE KICK SERVICE SD LH
2059WR13X10239 GE Refrigerator Lower Hinge Pin Adjuster
2060WR60X23769 GE Refrigerator Drain Fan Bracket Assembly
2061BRACKET FAN MTG
2062WR09X29410 GE Heater Harness Tod
4021WR13X30112 GE Refrigerator Left Hand Base Channel
6004WR01X10620 GE Refrigerator Screw 10-32
6005WD2X295 GE Refrigerator Screw
6006WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
6010WR01X10053 GE Refrigerator #8-18 TYPE AB X 3/8 Black
6013WR01X10065 GE Screw
7835WR02X13213 GE Refrigerator Closure Mechanical Left Hand
9587WR60X10225 GE Refrigerator Fresh Food Fan
