ZIRS36NDALH CABINET

ZIRS36NDALH CABINET

Written by

in

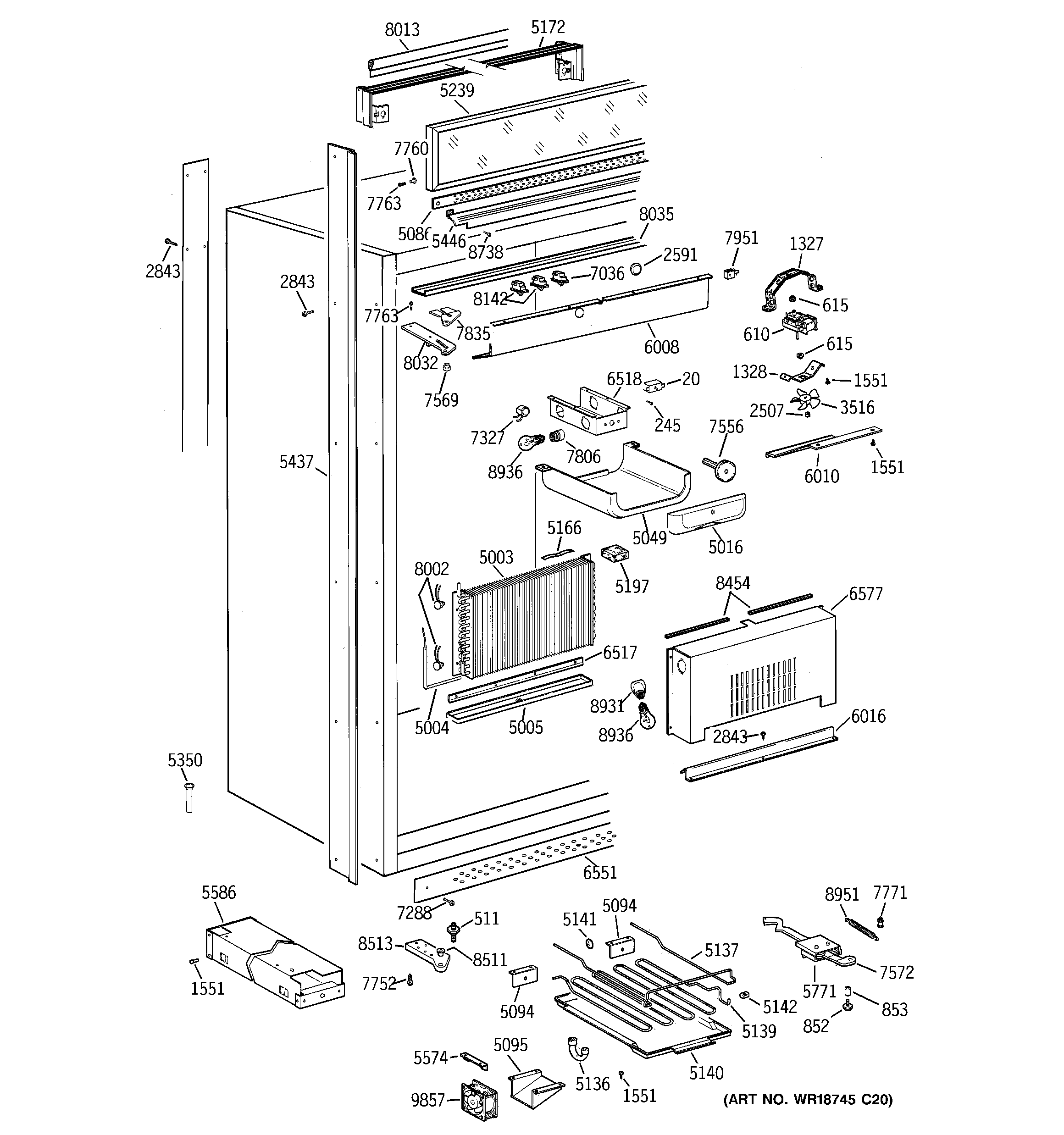

ZIRS36NDALH CABINET

Products

PositionProduct
20GEN WR09X10039
245WR1X5644 GE Screw
511WR01X10175 GE Refrigerator Hinge Pin Bottom (ADJ )
610GEN WR60X0190
615GEN WR02X7391
852GEN WR01X10184
853GEN WR01X10183
1327BRACKET FAN REAR
1328BRACKET FAN FRONT
1551WR1X5645 GE Refrigerator Screw
2507WR60X114 GE Refrigerator Evaporator Motor Fan Blade
2591GEN WR02X10154
2843WR1X2130 GE Refrigerator Screw
3516EVAPORATOR FAN BLADE
5003EVAP COIL
5004WR51X10036 GE Heater Defrost
5005GEN WR17X10648
5016GEN WR17X10650
5049GEN WR17X10651
5086GEN WR02X10142
5094GEN WR02X10524
5095GEN WR17X10680
5136WR17X10675 GE Refrigerator Drain Trap AUX Condenser
5137GEN WR17X10676
5139GEN WR84X10024
5140DRAIN PAN AUX. COND.
5141GEN WR01X10180
5142GEN WR02X10525
5166WR01X10045 GE Refrigerator Wire RET Evaporator Heater
5172GEN WR74X10050
5197WR02X10145 GE Refrigerator Left Hand Evaporator Baffle
5239GEN WR74X10213
5239GEN WR74X10158
5239GEN WR74X10052
5350WR17X26689 GE Refrigerator Drain Tube
5437GEN WR08X10016
5446GEN WR02X10169
5574GEN WR02X10443
5586GEN WR13X0670
5771CLOSURE FZ DOOR
6008GEN WR17X10658
6010EVAPORATOR FAN MTR. MTG
6016GEN WR17X10653
6517GEN WR17X10646
6518GEN WR74X10046
6551WR74X10047 GE Refrigerator Toekick 36 SD Left Hand
6577WR74X10048 GE Refrigerator Evaporator Cover
7288SCREW TOEKICK MTG
7327WR50X10003 GE Refrigerator Thermostat
7556GEN WR02X10495
7569GEN WR02X8587
7572ACTUATOR ARM FF
7752WR1X1754D GE Refrigerator Screw Package
7760BARREL NUT
7763WR1X5690 GE Refrigerator Handle Screw
7771GEN WR01X1839
7806GEN WR02X8928
7835WR13X10080 GE Refrigerator Hinge Cover Left Hand
7951WR02X37905 GE Twist Support
8002WR50X10032 GE Refrigerator Thermodisc
8013GEN WR02X8972
8032GEN WR13X10081
8035GEN WR17X10661
8142WR23X37285 GE Light Switch
8454WR38X10190 GE Refrigerator Edge Trim
8511BUSHING, FF HINGE
8513GEN WR13X10099
8738WR01X10053 GE Refrigerator #8-18 TYPE AB X 3/8 Black
8931WR02X11626 GE Refrigerator Light Socket
8936RANGE ONLY 40W 120V APPL BULB
8951GEN WR02X10526
9857WR60X26032 GE Refrigerator Drain Pan Fan Kit
