ZIS420NKC FREEZER DOOR

ZIS420NKC FREEZER DOOR

Written by

in

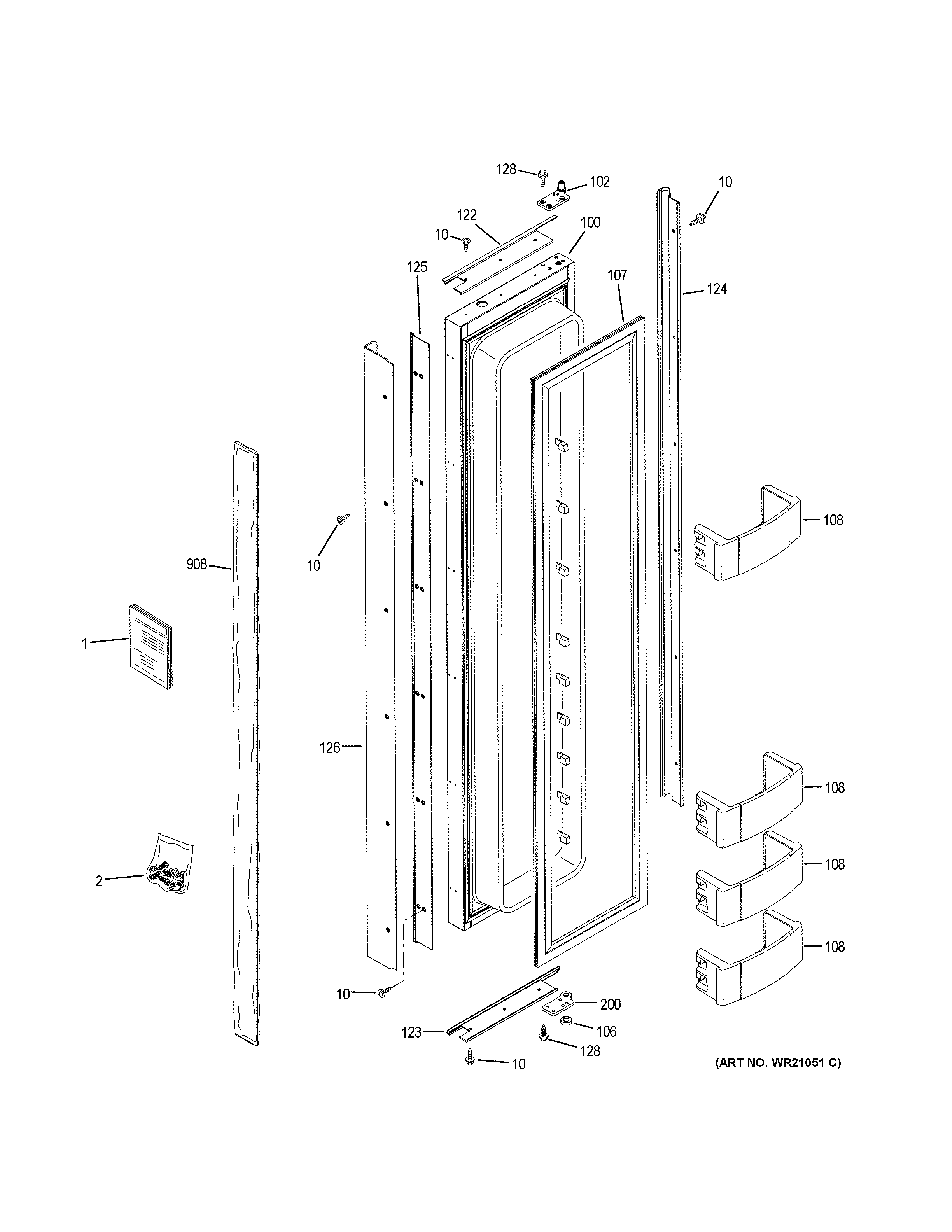

ZIS420NKC FREEZER DOOR

Products

PositionProduct
1PM MINI MANUAL
1PM INSTALL INSTRUCTIONS
2WR01X10304 GE Refrigerator Hardware Pack
10WR01X24363 GE Scr 8-18 Bolt 5/8 SS
100WR78X23592 GE Refrigerator 42" ND FI Pack Door Assembly
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25605 GE Refrigerator Door Bin Assembly 36/42
122WR38X10326 GE Freezer Top Door Trim
123WR38X10327 GE Freezer Bottom Door Trim
124WR38X10270 GE Refrigerator Door Trim Side
125WR38X10271 GE Refrigerator Handle Trim
126WR12X10526 GE Refrigerator Handle O/S1
128WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
200WR13X10657 GE Refrigerator Bottom Door Hinge
908WR02X24343 GE Handle Trim Cover
