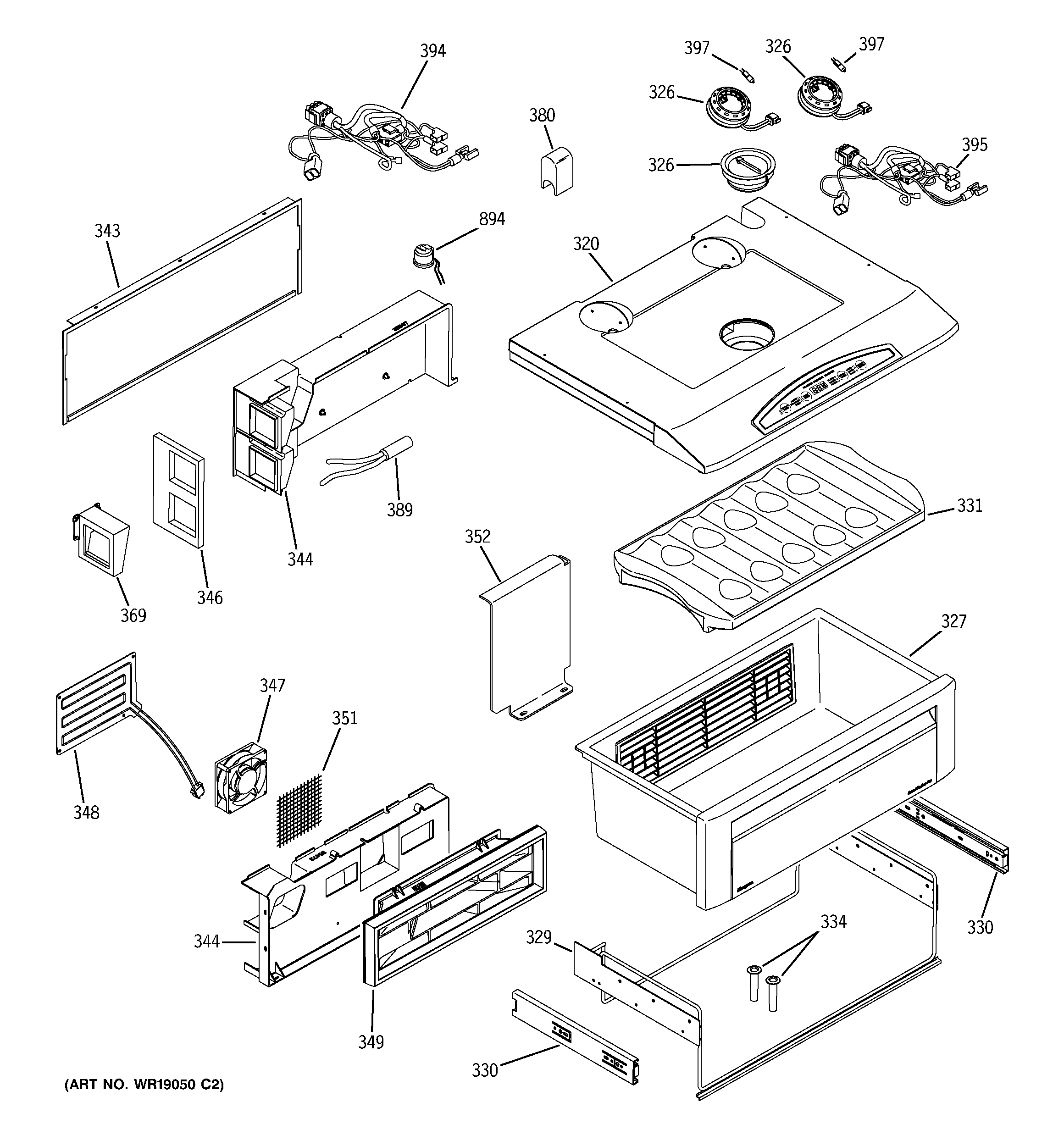

ZIS420NMD QUICK CHILL

ZIS420NMD QUICK CHILL

Written by

in

ZIS420NMD QUICK CHILL

Products

PositionProduct
320WR60X10269 GE Refrigerator QC Mullion Assembly
326WR02X11198 GE Refrigerator Halogen QC Lamp Assembly
327WR32X25927 GE Refrigerator Pan Quick Chill Assembly 42"
329WR71X10430 GE Vegetable Wire Frame
330WR72X10191 GE Refrigerator Slide Assembly 10"
331QC TRAY
334WR2X8472 GE Refrigerator Vent Tube
343QC FRONT SEAL ASM
344AIR HANDLER ASM QC
346WR60X10116 GE Refrigerator QC Damper Seal
347WR17X13035 GE Refrigerator QC Fan Harness
348WR51X10138 GE Refrigerator Thaw Heater
349WR31X10018 GE Refrigerator Case Diffuser Assembly
351WR01X10298 GE Wire Mesh Qc Housing
352WIRE COVER QC ASM
369DAMPER ASM D
380WR02X11449 GE Refrigerator Water Line Cover
389WR55X10025 GE Refrigerator Temperature Sensor
394WR23X10267 GE Refrigerator QC Harness
395HARNESS QC LIGHTS
397WB01X10239 GE Halogen Lamp 20W 12V G4 Base
894WR50X10035 GE Refrigerator Light Thermostat
