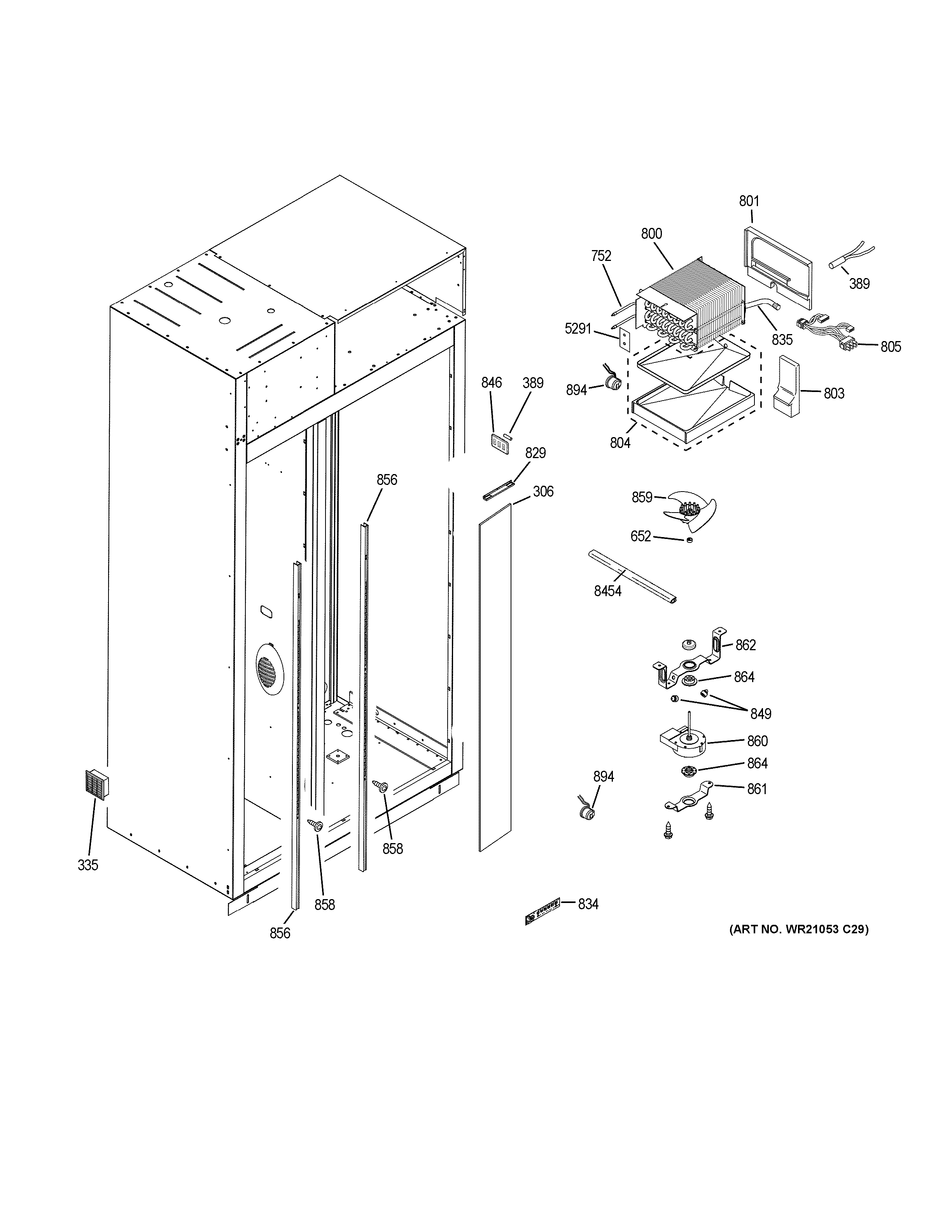

ZIS480NKB FREEZER SECTION

ZIS480NKB FREEZER SECTION

Written by

in

ZIS480NKB FREEZER SECTION

Products

PositionProduct
306LIGHT GUIDE ACRYLIC FZ 4
335WR02X21077 GE Duct Grill
389WR55X10025 GE Refrigerator Temperature Sensor
652WR02X12149 GE Refrigerator Ring
752WR51X10111 GE Refrigerator Defrost Heater
800WR85X27895 GE Refrigerator Evaporator Assembly
801WR17X12528 GE Refrigerator Return Baffle
803WR02X12857 GE Refrigerator Foam Block Evaporator
804WR17X29775 GE Refrigerator Drain Pan and Heater
805FREEZER AC HARNESS
829TOP END CAP-48
834WR55X25853 GE Refrigerator Tower LED Assembly
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
846WR02X12839 GE Refrigerator Grille Sensor
849BUMPER
856TRACK FZ SHELF
858SCR 10-24 F FLUP 1.60 S
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
862WR02X10653 GE Refrigerator Orifice Fan Bracket
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894THERMOSTAT CUTT-OFF
5291WR2X8619 GE Refrigerator HTR Bracket
8454WR38X10190 GE Refrigerator Edge Trim
