ZIS480NMA SEALED SYSTEM & MOTHER BOARD

ZIS480NMA SEALED SYSTEM & MOTHER BOARD

Written by

in

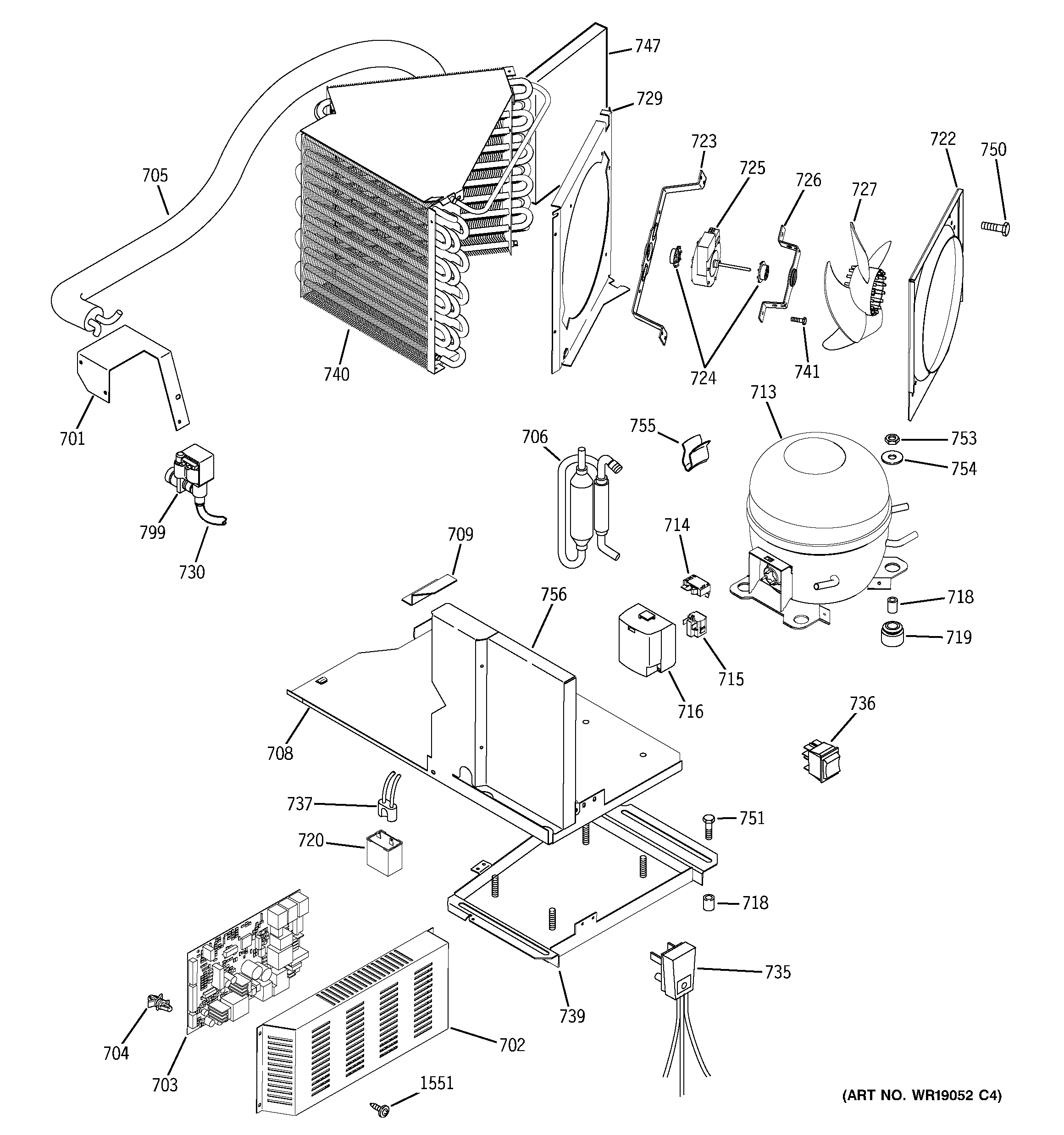

ZIS480NMA SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
701WATER VALVE BRACKET
702GEN WR02X11220
703WR55X11130 GE Refrigerator Main Control Board
704WR01X10301 GE Refrigerator Main Board Standoff
705CAP SUCTION TUBE ASM
706WR86X25269 GE Refrigerator R134 Dryer
708GEN WR17X11186
709WR02X11221 GE Refrigerator Retainer Pan System
713WR87X20798 GE Refrigerator High Side Assembly
714WR08X10015 GE Refrigerator Overload Relay
715GEN WR07X10031
716GEN WR02X10556
718WR01X10305 GE Refrigerator Steel Collar
719WR02X22869 GE Refrigerator Grommet
720WR55X24065 GE Refrigerator Kit Capacitor 15 UF
722GEN WR17X11188
723BRKT COND FAN MOTOR LG
724WR02X10520 GE Refrigerator Fan Motor Grommet
725WR60X10209 GE Refrigerator DC Condenser Fan Motor
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729GEN WR84X10036
730WR17X1948 GE Refrigerator Water Line
735WR23X10300 GE Refrigerator Power Cord Assembly
736WR49X10070 GE Refrigerator Master Light SW. Kit
737GEN WR23X0474
739GEN WR17X11189
740GEN WR84X10037
741WZ5X158D GE Screw Package of 12
747GEN WR17X11191
750WR1X1826 GE Refrigerator Screw
751WR01X10302 GE Bolt 1/4-20 x 1.5"
753WR01X10044 GE Refrigerator 1/4-20 Hex Nut
754WR01X10308 GE Flat Washer 3/8" x 7/8"
755GEN WR02X9501
756GEN WR17X11192
799WR57X10033 GE Refrigerator Water Inlet Fill Valve
1551WR1X5645 GE Refrigerator Screw
