ZIS480NPBII FREEZER DOOR

ZIS480NPBII FREEZER DOOR

Written by

in

ZIS480NPBII FREEZER DOOR

Products

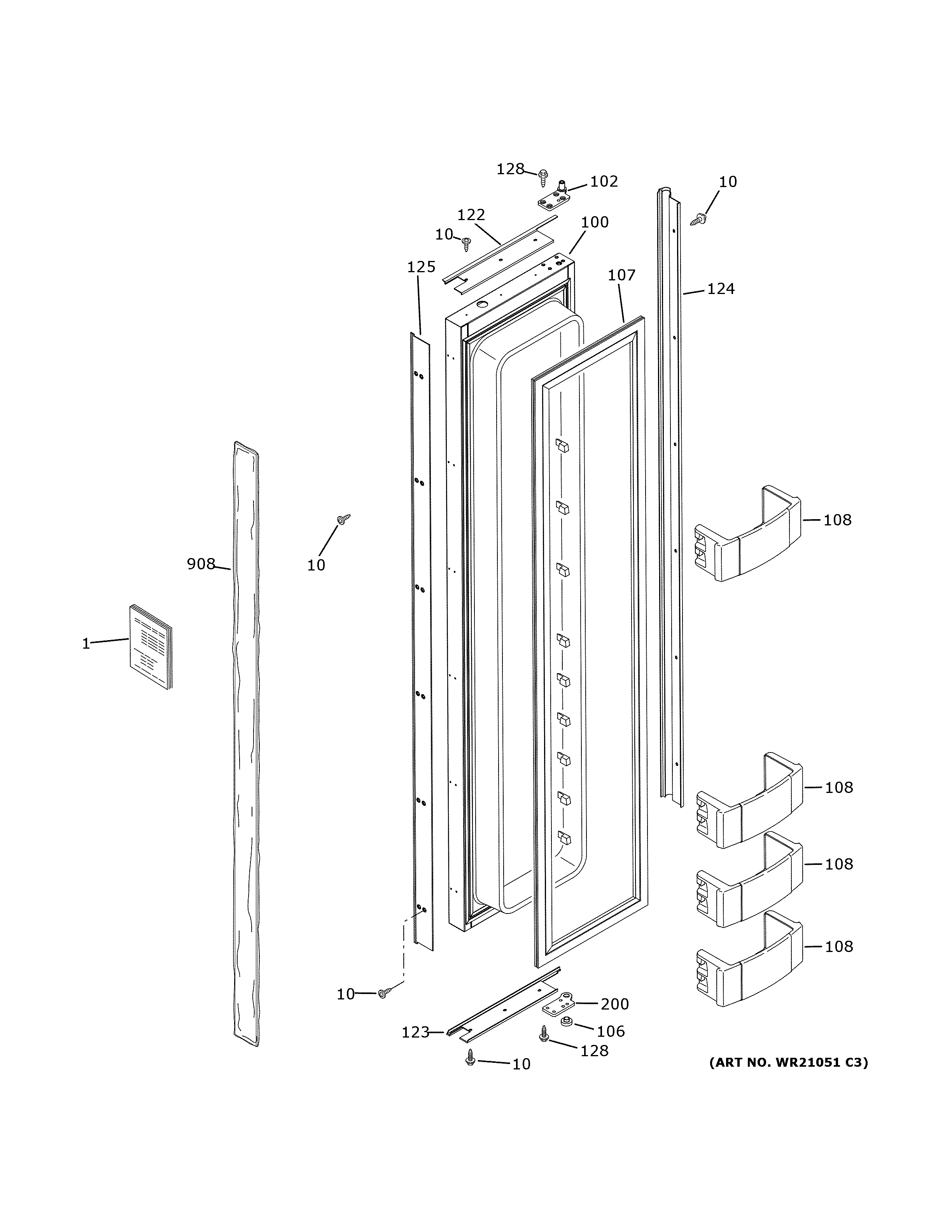

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL AND WIRING
10WR01X24363 GE Scr 8-18 Bolt 5/8 SS
100FREEZER NON DISPENSER DOOR 48"
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25604 GE Refrigerator Door Bin Assembly
122WR38X10332 GE Refrigerator Top Door Trim
123GEN WR38X10333
124WR38X10270 GE Refrigerator Door Trim Side
125WR38X10271 GE Refrigerator Handle Trim
128WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
200WR13X10657 GE Refrigerator Bottom Door Hinge
908WR02X24343 GE Handle Trim Cover
