ZIS48NXA FREEZER SECTION

ZIS48NXA FREEZER SECTION

Written by

in

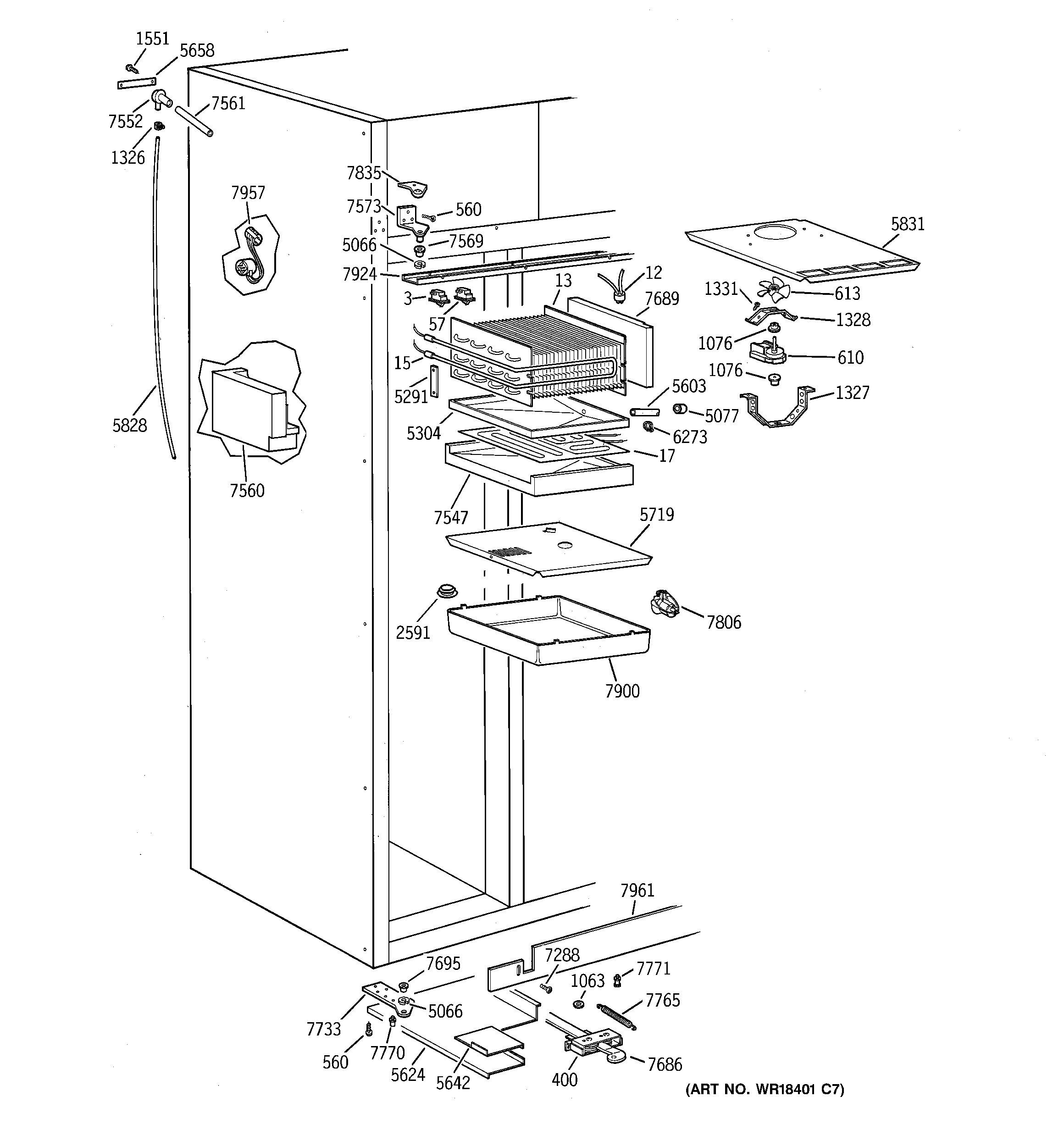

ZIS48NXA FREEZER SECTION

Products

PositionProduct
3WR23X37285 GE Light Switch
12DEFROST THERMOSTAT
13EVAPORATOR
15WR51X322 GE Refrigerator Defrost Heater
57SWITCH-CRADLE-WATER SIDE
352WR30X10154 GE Refrigerator Ice Bucket Assembly
371GEN WR17X3300
400CLOSURE FZ DOOR
560WR1X1754D GE Refrigerator Screw Package
610GEN WR60X0182
613WR60X123 GE Fan Blade Black
800WR57X10033 GE Refrigerator Water Inlet Fill Valve
820GEN WR30X0306
1063GEN WR01X1833
1076GEN WR02X7391
1326WR1X5278 GE Refrigerator Cable Clamp
1327BRACKET FAN REAR
1328BRACKET FAN FRONT
1331SCREW BRKT. EVAP. FAN
1551WR1X5645 GE Refrigerator Screw
2591GEN WR01X1932
2843WR1X2130 GE Refrigerator Screw
5066SPACER HINGE BUSHING
5077GEN WR02X10023
5291WR2X8619 GE Refrigerator HTR Bracket
5304WR49X10021 GE Refrigerator Defrost Pan Heater
5534GEN WR02X9424
5586GEN WR13X0670
5603GEN WR17X3030
5624GEN WR17X3423
5626GEN WR02X8605
5627GEN WR02X8604
5633COPPER TUBE
5642GEN WR17X3424
5652FRZ BASKET FRONT ASM
5658WR2X8613 GE Refrigerator Strap
5719FZ TOP LIGHT SHIELD
5788GEN WR01X1975
5789GEN WR01X1976
5790GEN WR74X0246
5828GEN WR17X10018
5831EVAP. HOUSING BTM
6273GEN WR01X1843
7271GEN WR01X5635
7288SCREW TOEKICK MTG
7547GEN WR17X3037
7552WR2X8474 GE Fill Tube
7560GEN WR17X3039
7561WR2X8612 GE Refrigerator Fill Tube
7569GEN WR02X8587
7573GEN WR13X0640
7686GEN WR02X8926
7689BAFFLE EVAP
7695BUSHING BTM HINGE
7717SHELF FZ
7733GEN WR13X0641
7749BOLT ADJ HINGE-BASE
7765GEN WR02X8804
7770WR02X11209 GE Refrigerator Shear Pin
7771GEN WR01X1839
7806GEN WR02X8928
7835WR13X10080 GE Refrigerator Hinge Cover Left Hand
7871NUT & FERRUL
7900GEN WR17X4173
7912WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
7924DISP GRILL BASE
7957GEN WR51X0369
7961GEN WR74X0238
8009GEN WR17X3655
8011GEN WR17X3443
8012GEN WR49X0360
8013GEN WR02X8972
8293WR72X10196 GE Refrigerator Slide Assembly
8306WR72X268 GE Refrigerator Slide with Bearings
8313GEN WR21X0206
8630GEN WR02X9449
8653GEN WR02X9427
