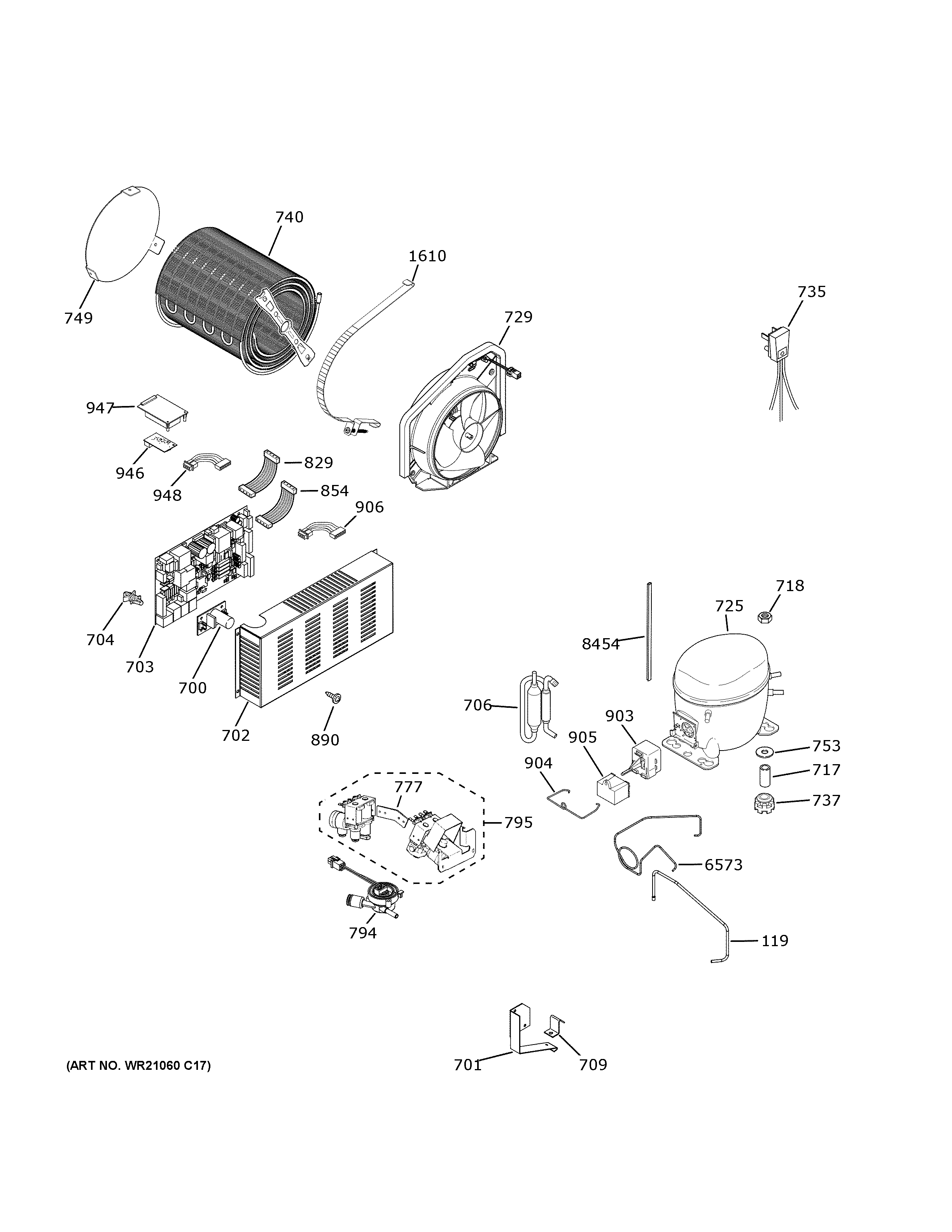

ZISB360DNKII MACHINE COMPARTMENTadmin2025-04-26T10:49:19+00:00ZISB360DNKII MACHINE COMPARTMENT ProductsPositionProduct119WR84X32682 GE Discharge Tube700POWER SUPPLY PCB701WR02X12198 GE Refrigerator Bracket Water Valve702WR02X29774 GE Refrigerator Main Board Cover703REFRIGERATOR MAIN CONTROL BOAR704WR02X29169 GE Main Board Standoff706WR87X30875 GE Refrigerator R600 Dryer with Red Cap709WR02X12569 GE Bracket System Pan717WR01X10305 GE Refrigerator Steel Collar718WR01X10044 GE Refrigerator 1/4-20 Hex Nut725WR87X39227 GE Compressor729CONDENSER FAN ASSEMBLY735WR55X29405 GE Refrigerator Power Cord737WR02X22869 GE Refrigerator Grommet740WR02X32654 GE Condenser and Bracket Assembly749WR17X13159 GE Refrigerator Baffle Condenser Air753WR01X10308 GE Flat Washer 3/8" x 7/8"777WR02X10370 GE Refrigerator Water Valve Bracket794WR57X32245 GE Refrigerator Flow Meter795BRACKET AND VALVE ASM829MAIN AC HARNESS 36"854MAIN DC HARNESS890WD2X295 GE Refrigerator Screw903PTCR ASSEMBLY904RETAINER CLIP905WR55X24064 GE Refrigerator Run Capacitor906PERSONALITY HARNESS946WR55X34645 GE Refrigerator Wifi and Humidity Board947WIFI HOUSING948WIFI JUMPER HARNESS1610CONDENSER STRAP6573WR84X32630 GE Refrigerator Suction Tube8454WR38X10190 GE Refrigerator Edge Trim
