ZISB36DTC ICE MAKER & DISPENSER

ZISB36DTC ICE MAKER & DISPENSER

Written by

in

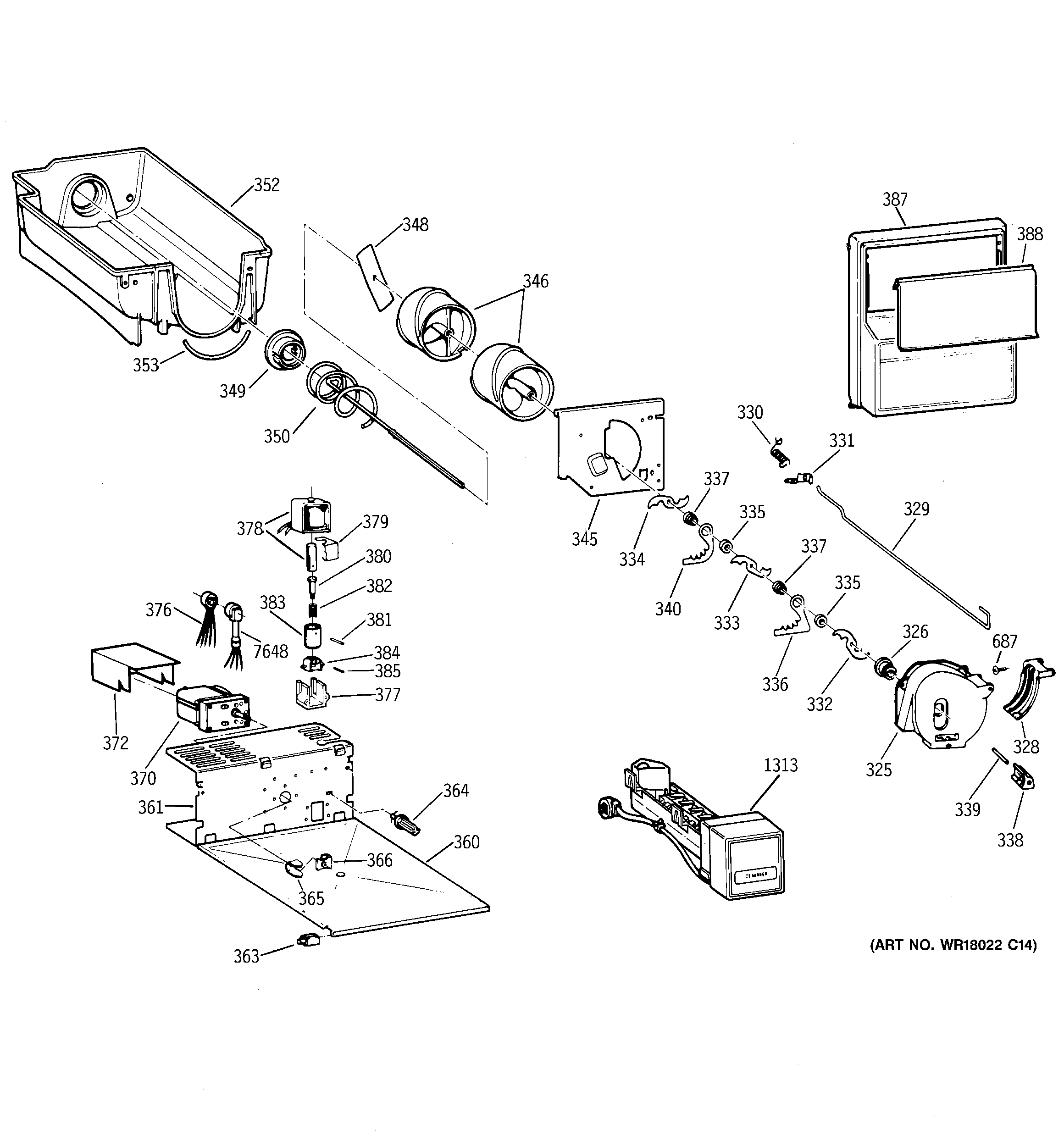

ZISB36DTC ICE MAKER & DISPENSER

Products

PositionProduct
325WR17X2061 GE Refrigerator Crush Dispenser
326GEN WR01X1585
328WR2X4143 GE Refrigerator Pivot
329WIRE ACTUATOR DISP
330GEN WR02X4145
331GEN WR02X4251
332WR17X1361 GE Refrigerator Blades Moving Display
333WR17X1362 GE Refrigerator Middle Blade
334WR17X1363 GE Refrigerator Blades Moving Display
335GEN WR02X4139
336GEN WR17X1009
337WR2X4138 GE Refrigerator Spacer
338WR2X4140 GE Refrigerator Blade Rest
339GEN WR02X4141
340WR17X2058 GE Refrigerator Dispenser Blade
345PLATE FRONT DISP
346HELIX FRONT-DISP
346HELIX REAR-DISP
348GEN WR02X7351
349WR2X4550 GE Refrigerator Drive Cup
350GEN WR17X2740
352WR30X256 GE Refrigerator Ice Dispenser
352WR17X4312 GE Refrigerator Ice Maker Auger and Bucket Assembly
353WR2X7905 GE Refrigerator Bucket Seal
360GEN WR71X2205
361GEN WR71X2353
363GEN WR02X4465
364GEN WR02X7310
365GEN WR02X4854
366GEN WR01X1547
370WR60X10262 GE Refrigerator Motor Crusher Dispenser
370WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
372GEN WR01X5623
372GEN WR01X1905
372WR02X11295 GE Refrigerator Auger Motor Boot
376GEN WR23X0189
377WR2X7309 GE Refrigerator Solenoid Cushion
381WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
382WR62X26536 GE Refrigerator Armature Kit
387GEN WR17X2964
388GEN WR17X2874
687GEN WZ05X0194
1313WR30X10093 GE Refrigerator Ice Maker
7648GEN WR02X8964
