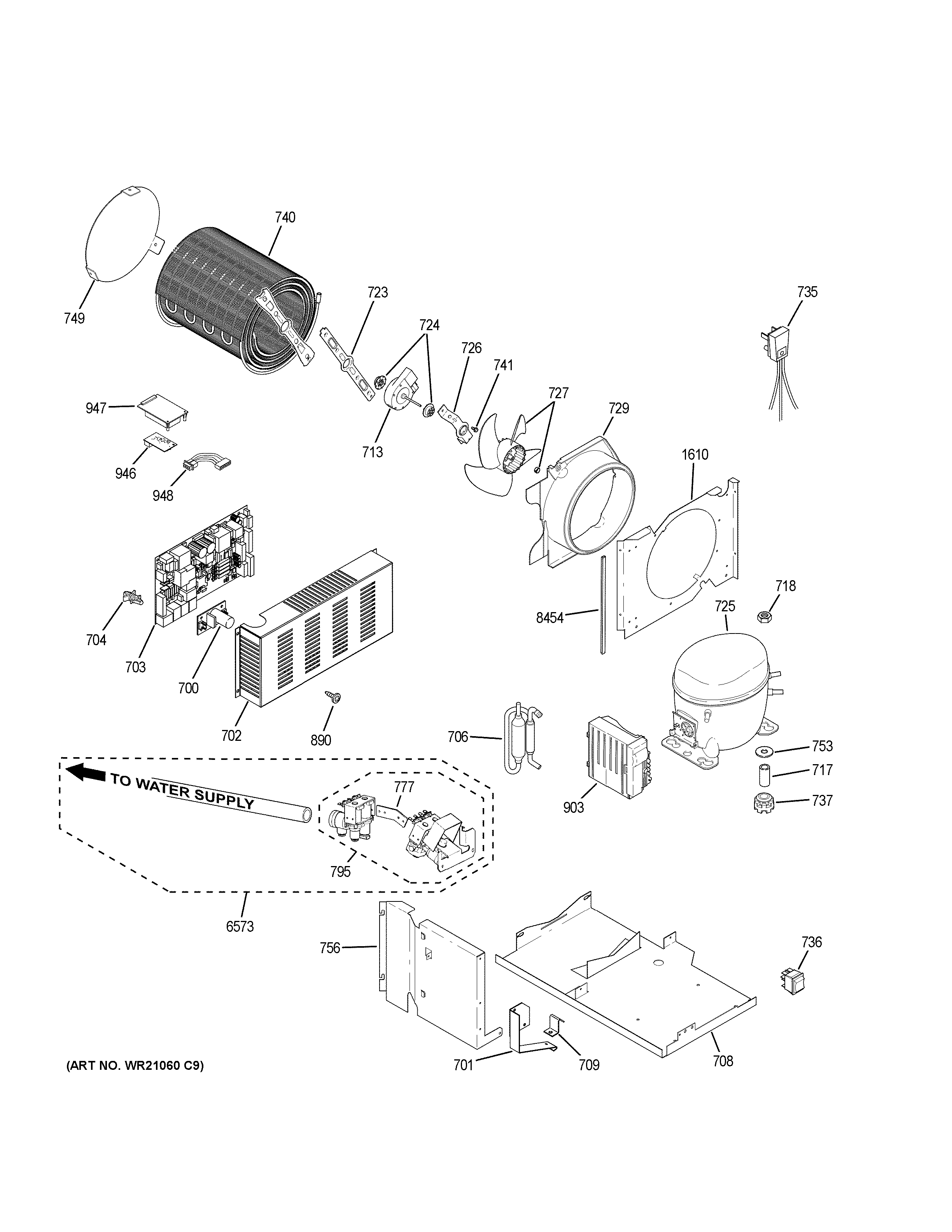

ZISB420DKB MACHINE COMPARTMENTadmin2025-04-26T10:50:06+00:00ZISB420DKB MACHINE COMPARTMENT ProductsPositionProduct700POWER SUPPLY PCB701WR02X12198 GE Refrigerator Bracket Water Valve702COVER BOARD MAIN SXS703REFRIGERATOR MAIN CONTROL BOAR704WR01X10301 GE Refrigerator Main Board Standoff706WR86X25269 GE Refrigerator R134 Dryer708SYSTEM PAN709WR02X12569 GE Bracket System Pan713WR60X10209 GE Refrigerator DC Condenser Fan Motor717WR01X10305 GE Refrigerator Steel Collar718WR01X10044 GE Refrigerator 1/4-20 Hex Nut723WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)724WR02X10520 GE Refrigerator Fan Motor Grommet725WR87X24135 GE Refrigerator Compressor Service Kit CU1726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)727WR60X24484 GE Refrigerator Condenser Fan Blade729WR17X35527 GE Refrigerator Condenser Fan Shroud735WR23X10300 GE Refrigerator Power Cord Assembly736WR49X10070 GE Refrigerator Master Light SW. Kit737WR02X22869 GE Refrigerator Grommet740WR84X10022 GE Refrigerator Condenser Replacement Kit741WZ5X158D GE Screw Package of 12749WR17X13159 GE Refrigerator Baffle Condenser Air753WR01X10308 GE Flat Washer 3/8" x 7/8"756BAFFLE LH777WR02X10370 GE Refrigerator Water Valve Bracket795BRACKET AND VALVE ASM890WD2X295 GE Refrigerator Screw903WR87X29409 GE Refrigerator Inverter Compressor Control Board946WR55X34645 GE Refrigerator Wifi and Humidity Board947WR02X26794 GE Refrigerator Housing with WiFi948WR55X26908 GE Refrigerator WiFi Jumper Harness1610COND BAFFLE6573WR17X32349 GE Refrigerator Water Line8454WR38X10190 GE Refrigerator Edge Trim
