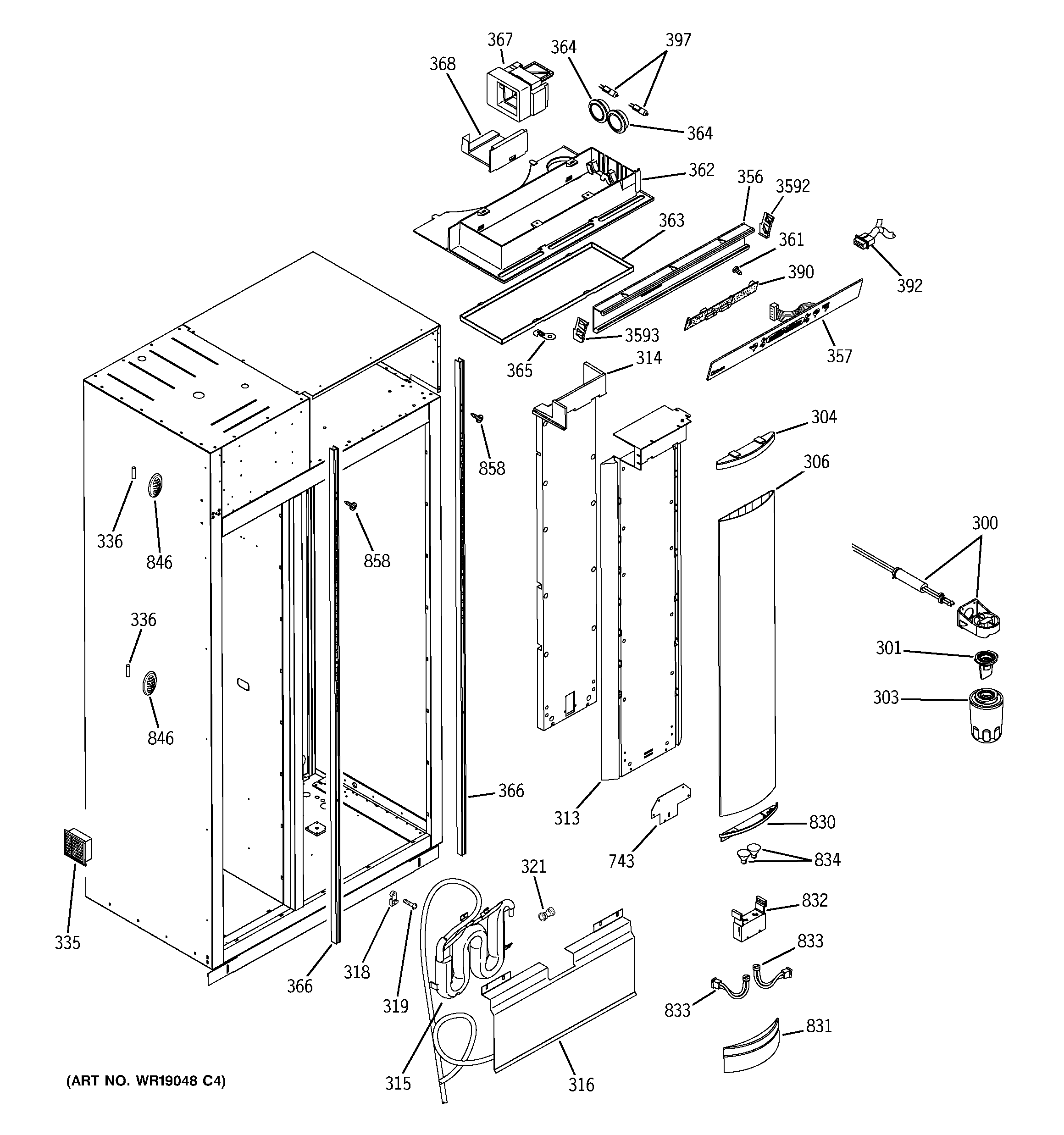

ZISB420DMD FRESH FOOD SECTION

ZISB420DMD FRESH FOOD SECTION

Written by

in

ZISB420DMD FRESH FOOD SECTION

Products

PositionProduct
300MWF MANIFOLD
301WR17X22070 GE Water Filter Bypass Plug
303MWFP GE Replacement Water Filter Pureline for Refrigerator
304END CAP LIGHT COLUMN TOP
306LIGHT COLUMN ASM
313AIR TOWER FF
314FOAM INSERT AIR TOWER
315WR17X11176 GE Refrigerator Water Tank Assembly
316GEN WR74X10110
318WR02X12574 GE Wire Tie Heat Stabilizing
319WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
321WR02X13738 GE Refrigerator Coupler Straight 1/4
335WR02X11199 GE Refrigerator QC Inlet Duct
336WR55X10025 GE Refrigerator Temperature Sensor
356WR31X10022 GE Refrigerator Temp Control Housing
357GEN WR55X10163
3614-40 X 1/4 PH SMS
362WR17X11212 GE Ceiling Light Bracket
363CEILING LIGHT SHIELD 42"
364WR02X11202 GE Refrigerator Hockey Puck with Lamp & HARN
365WR01X22266 GE Refrigerator Latch Light White (Pair)
366FF SHELF TRACK
368KIT DAMPER MONOGRAM
390BOARD HMI CONTRL
392WR23X10607 GE Refrigerator SXS HMI Harness
397WB01X10239 GE Halogen Lamp 20W 12V G4 Base
743WR02X11565 GE Refrigerator Bulb Housing Assembly
830ENDCAP LIGHT COLUMN BTM
831BULB HOUSING COVER
834WR02X11183 GE Refrigerator Halogen Bulb Light
846THERMISTOR GRILL KIT- AL
846WR02X10647 GE Refrigerator Grille Sensor
858WR01X10051 GE 10-24 x 1" Phillips Head Tap
3592WR02X11291 GE Right HMI Endcap
3593LH HMI ENDCAP
