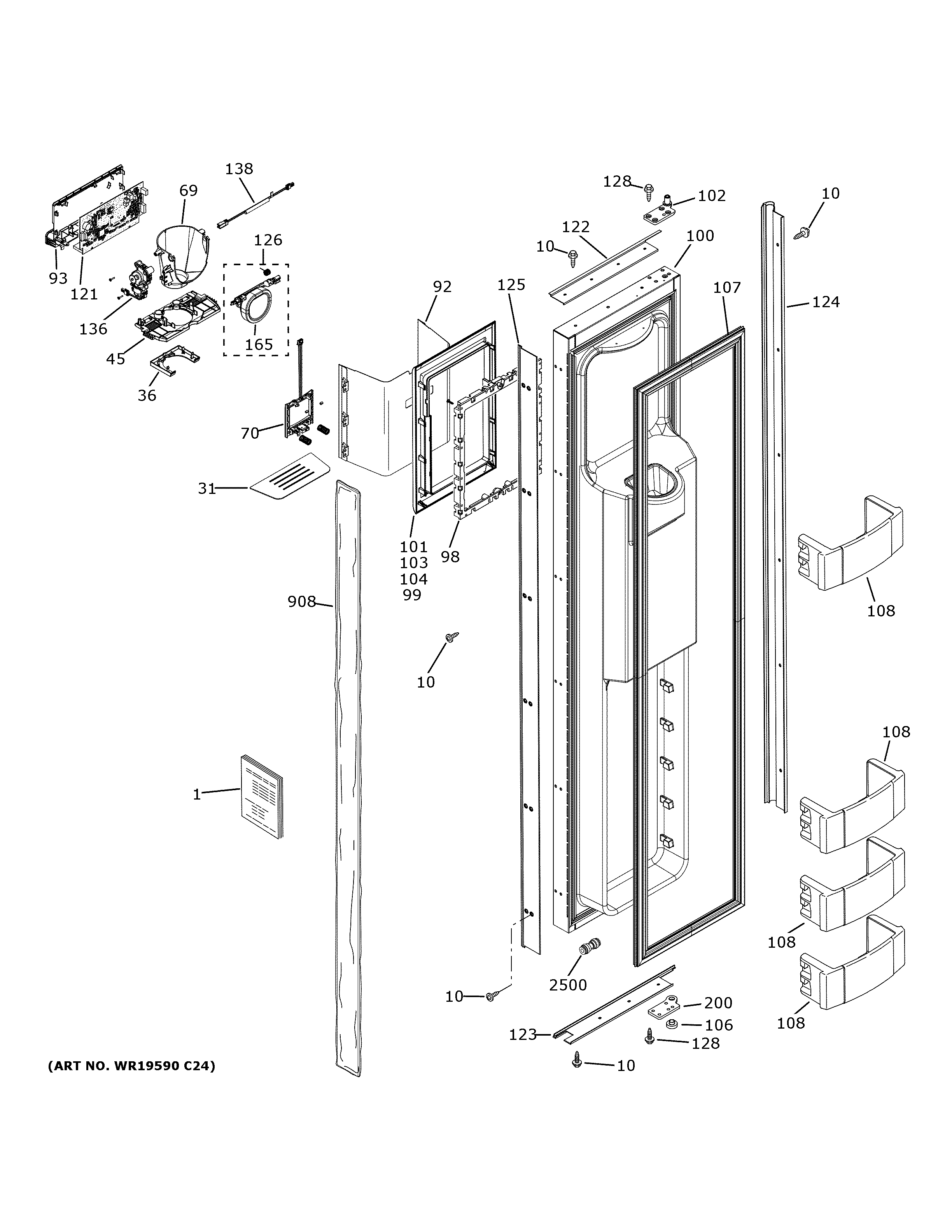

ZISB420DNFII FREEZER DOOR

ZISB420DNFII FREEZER DOOR

Written by

in

ZISB420DNFII FREEZER DOOR

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL AND WIRING
10WR01X24363 GE Scr 8-18 Bolt 5/8 SS
31DISPENSER DRIP TRAY MONOGRAM
36WR17X32640 GE Funnel Cover
45WR02X32708 GE Ice Funnel Bracket
69WR17X32683 GE Ice Maker Funnel
70WR17X35185 GE Refrigerator
92WR17X37547 GE Dispenser Recess
93WR17X32667 GE Refrigerator Monogram Capacitive Touch Display
98CUSTOM COLLAR MOUNTING BRACKET
99WR01X35808 GE Custom Collar 0.75"
100WR78X33066 GE Refrigerator Freezer Dispenser Door
101WR01X35805 GE Refrigerator Custom Collar 0.25"
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
103WR01X35807 GE Collar Custom 0.85"
104CUSTOM COLLAR 1.1"
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25605 GE Refrigerator Door Bin Assembly 36/42
121WR17X32712 GE Dispenser Control Board
122WR38X10326 GE Freezer Top Door Trim
123WR38X10327 GE Freezer Bottom Door Trim
124WR38X10270 GE Refrigerator Door Trim Side
125WR38X10271 GE Refrigerator Handle Trim
126WR17X32659 GE Refrigerator Duct Door
128WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
136WR60X33005 GE Refrigerator Motor Duct Door
138WR55X32726 GE Duct Door Diode Harness
165WR17X32658 GE Refrigerator Duct Door
200WR13X10657 GE Refrigerator Bottom Door Hinge
908WR02X24343 GE Handle Trim Cover
2500WR02X32986 GE Refrigerator 5/16" Coupler with Check Valve
