ZISB420DRH SEALED SYSTEM & MOTHER BOARD

ZISB420DRH SEALED SYSTEM & MOTHER BOARD

Written by

in

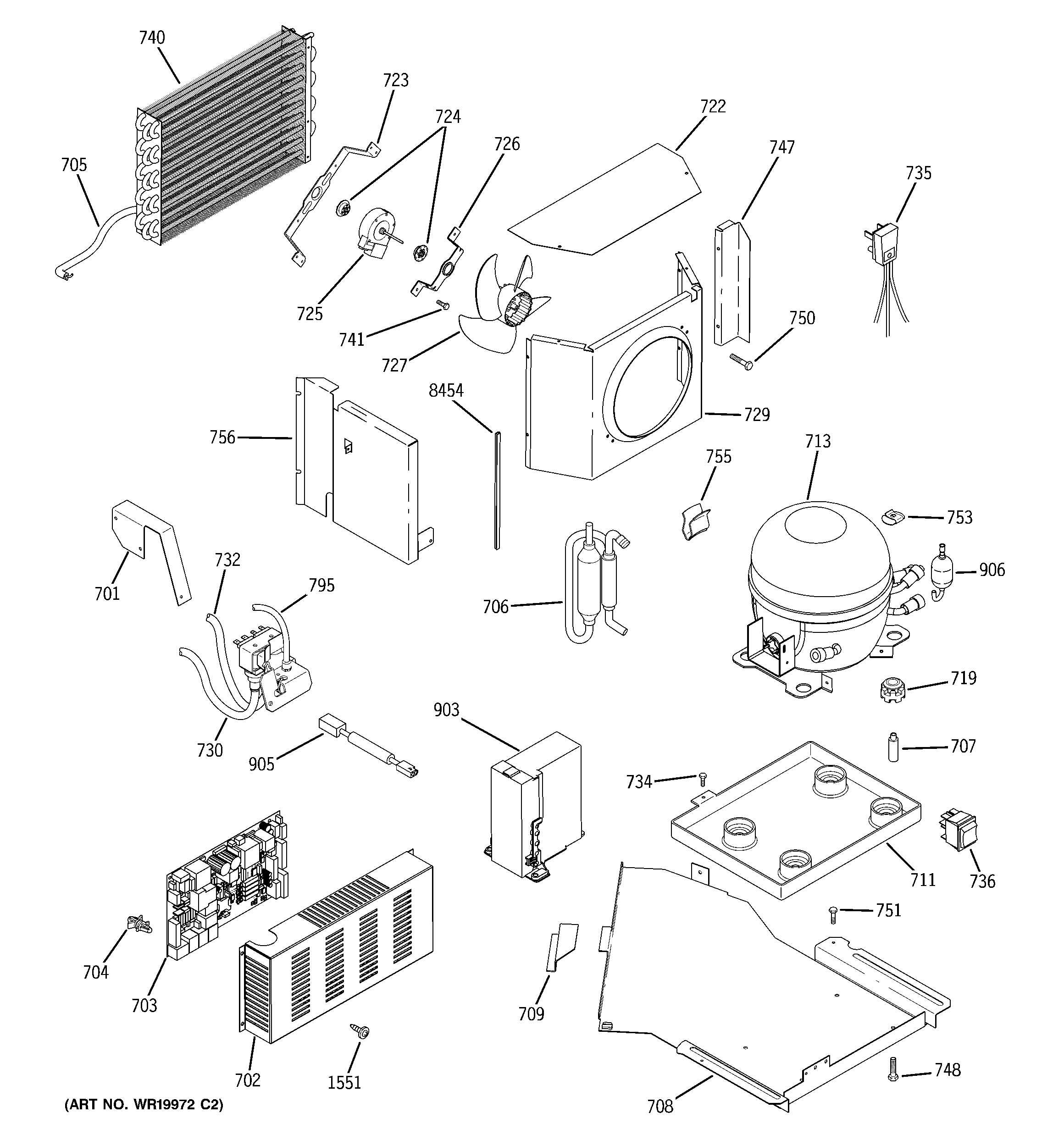

ZISB420DRH SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
701WR02X12198 GE Refrigerator Bracket Water Valve
702MAIN BOARD COVER
703BOARD ASM MAIN CONTROL
704WR01X10301 GE Refrigerator Main Board Standoff
705CAP SUCTION TUBE ASM
706WR86X25269 GE Refrigerator R134 Dryer
707STUD
708PAN SYSTEM
709WR02X11221 GE Refrigerator Retainer Pan System
711WR17X12061 GE Refrigerator Pan Sleeve
713COMPRESSOR VCC3 REPL. KI
719WR02X22869 GE Refrigerator Grommet
722COND. SHROUD TOP
723BRKT COND FAN MOTOR LG
724WR02X10520 GE Refrigerator Fan Motor Grommet
725WR60X10209 GE Refrigerator DC Condenser Fan Motor
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729SHROUD CONDENSER
730WR17X1948 GE Refrigerator Water Line
732WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
73436 VAPORIZER PAN BOLT
735WR23X10300 GE Refrigerator Power Cord Assembly
736WR49X10070 GE Refrigerator Master Light SW. Kit
740WR84X10048 GE Refrigerator Replacement Condenser Assembly
741WZ5X158D GE Screw Package of 12
747COND BAFFLE RH
748SCREW MTG STUD
750WR1X1826 GE Refrigerator Screw
751WR01X10302 GE Bolt 1/4-20 x 1.5"
753WR1X1779 GE Refrigerator Stud Mounting Compressor
755GEN WR02X9501
756GEN WR17X11698
795WR57X33326 GE Refrigerator Water Inlet Valve
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
905WR23X10491 GE Refrigerator Harness Inverter Common
906GEN WR02X11264
1551WR1X5645 GE Refrigerator Screw
8454WR38X10190 GE Refrigerator Edge Trim
