ZISB420DXA MACHINE COMPARTMENT

ZISB420DXA MACHINE COMPARTMENT

Written by

in

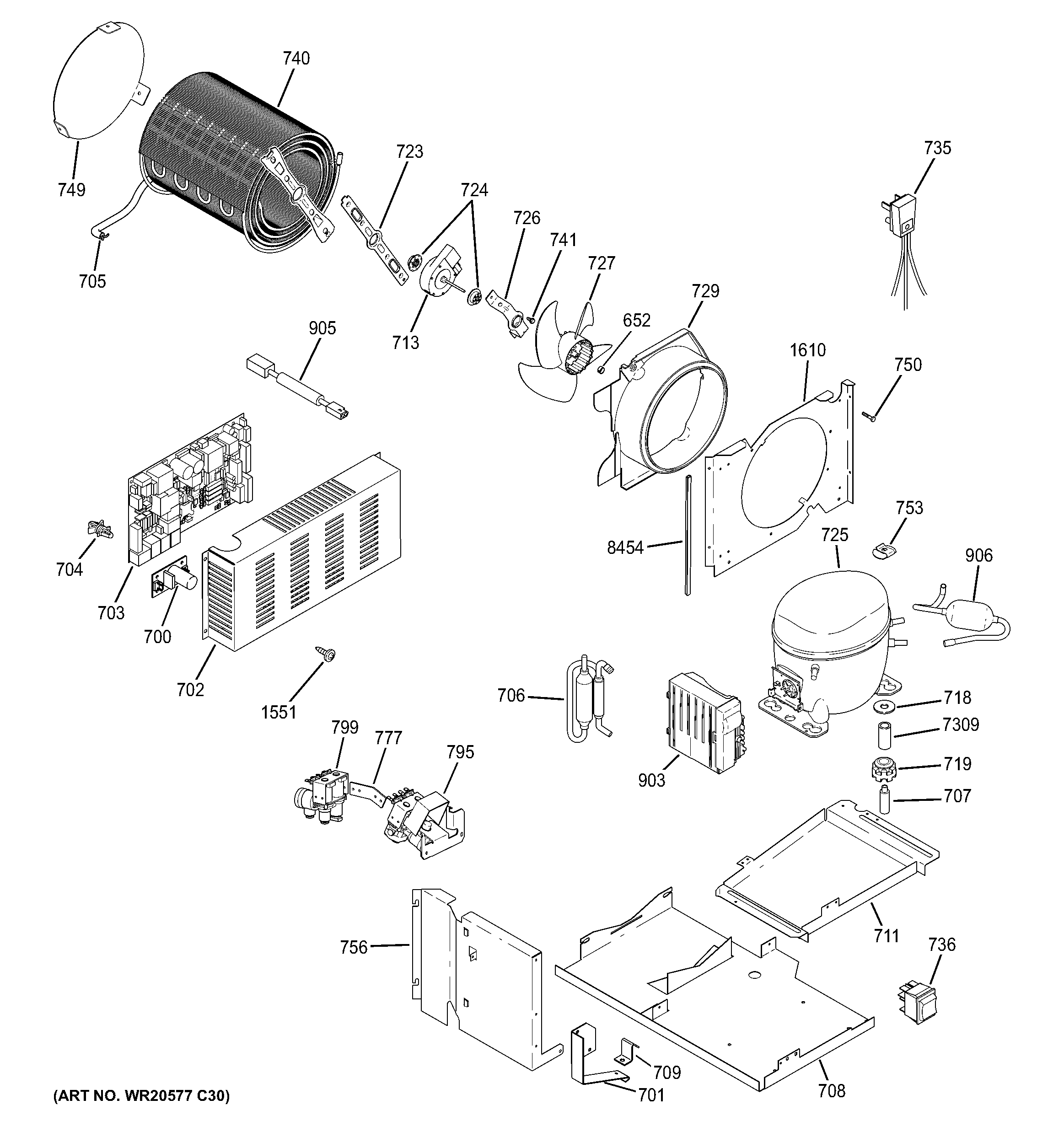

ZISB420DXA MACHINE COMPARTMENT

Products

PositionProduct
652WR02X12149 GE Refrigerator Ring
700POWER SUPPLY PCB
702WR02X12829 GE Sxs Main Cover Board
703WR55X11070 GE Refrigerator Main Control Board Assembly
704WR01X10301 GE Refrigerator Main Board Standoff
705CAP SUCTION TUBE ASM
706WR86X25269 GE Refrigerator R134 Dryer
707STUD COMPRESSOR MTG
708WR17X12348 GE System Pan
709WR02X12569 GE Bracket System Pan
711WR17X11924 GE Refrigerator Stainless Steel Vaporizer Pan Kit
713WR60X10209 GE Refrigerator DC Condenser Fan Motor
718WR01X10305 GE Refrigerator Steel Collar
719WR02X22869 GE Refrigerator Grommet
723WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725COMPRESSOR VCC3 REPL. KI
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735WR23X10300 GE Refrigerator Power Cord Assembly
736WR49X10070 GE Refrigerator Master Light SW. Kit
740WR84X10022 GE Refrigerator Condenser Replacement Kit
741WZ5X158D GE Screw Package of 12
750WR1X1826 GE Refrigerator Screw
753WR02X11210 GE Refrigerator Front Roller Assembly
756WR17X12529 GE Left Baffle
777WR02X10370 GE Refrigerator Water Valve Bracket
795BRACKET AND VALVE ASM
799WR57X10024 GE Water Inlet Valve
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
905WR23X29493 GE Ground Harness
906WR86X10038 GE Refrigerator Accumulator
1551WR1X5645 GE Refrigerator Screw
7309WR01X10308 GE Flat Washer 3/8" x 7/8"
8454WR38X10190 GE Refrigerator Edge Trim
